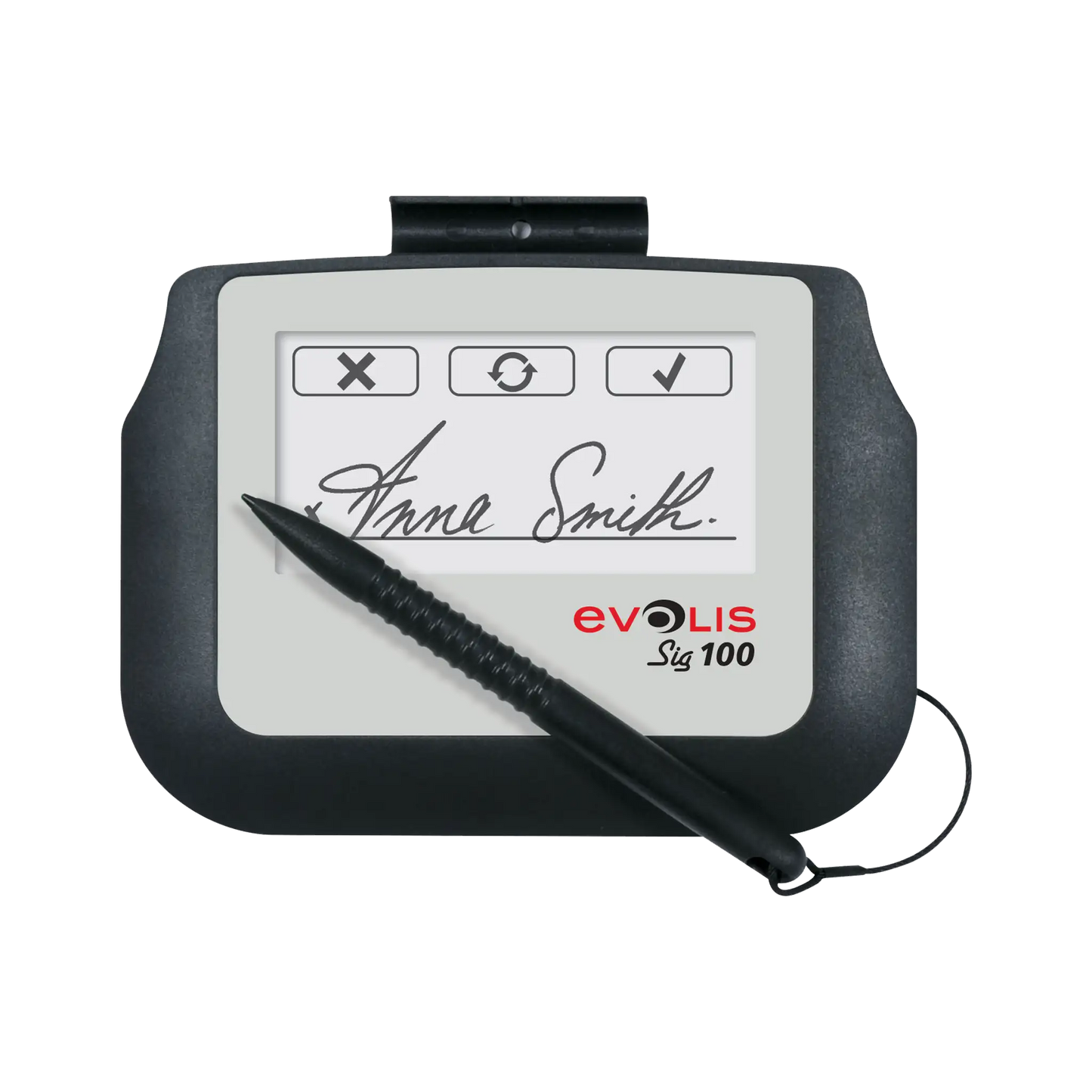

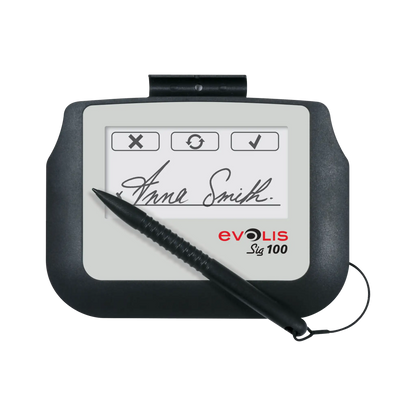

• A digital signature capture pad with a stylus resting on it shows the handwritten name "Anne Smith" on the screen. The device, labeled "Evolis Sig100 Signature Capture Pad", provides secure PDF signatures and biometric data recording for enhanced security.

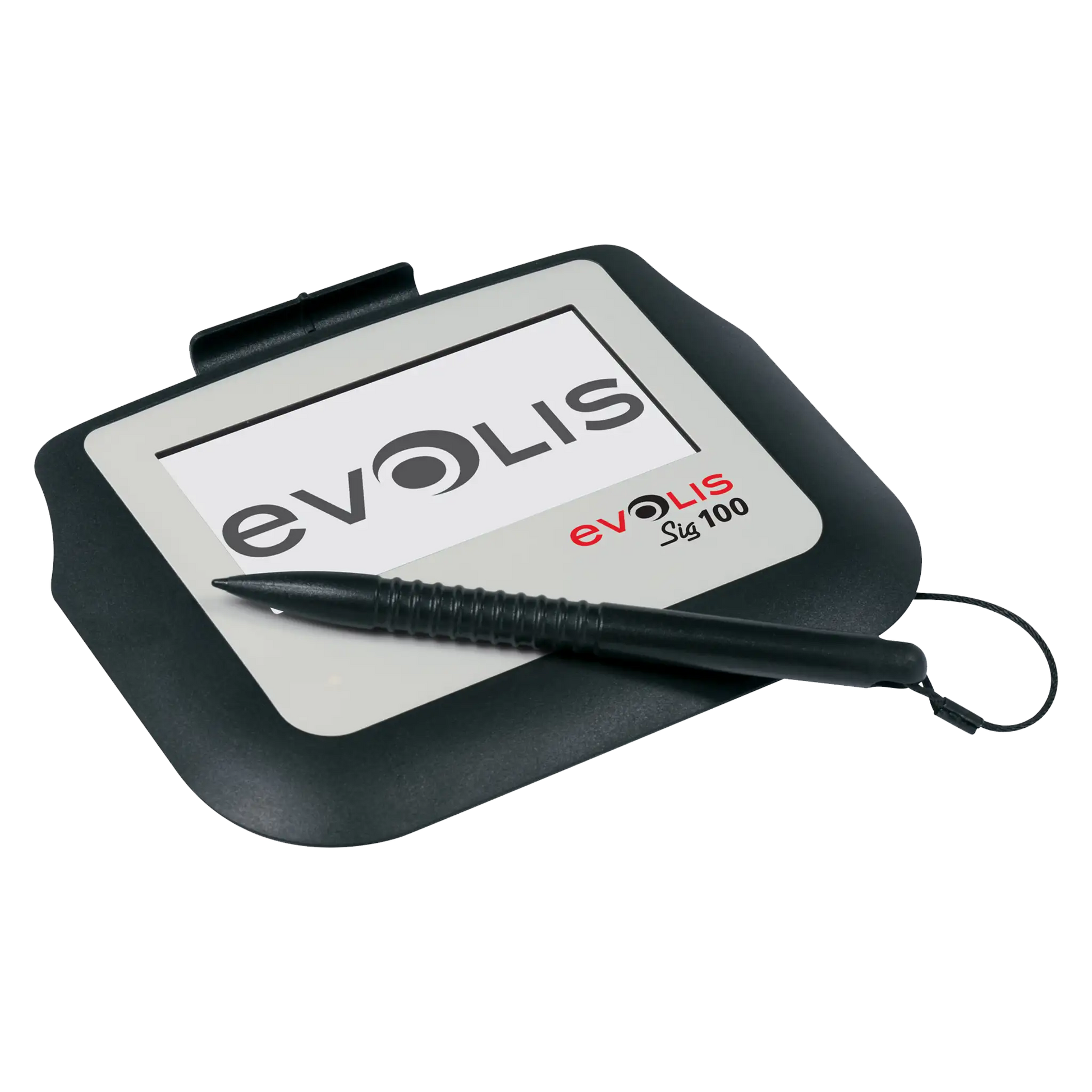

  • A **Evolis Sig100 Signature Capture Pad** with the Evolis logo and model name (Sig 100) displayed on the screen. The pad includes a stylus attached with a cord, ideal for secure PDF signatures.
1 2

Evolis Sig100 Signature Capture Pad ST-BE105-2-UEVL

Evolis Sig100 Signature Capture Pad ST-BE105-2-UEVL

IN STOCK
(-Infinity%)






Bulk Ordering? Complex Project? Click Here.

Currently, we have 0 available. Please contact us to inquire about lead times. Sorry, this item is currently out of stock, please contact us to confirm lead times and availability. You can click here to discover additional alternative recommendations.

Features

  • Part number: ST-BE105-2-UEVL
  • Slim and ergonomic design with a standard stylus and tether
  • High-resolution 4'' monochrome, backlit display with real-time signature visualization
  • Secure AES and RSA encryption for safe data transfer and storage
  • Compatible with a wide range of operating systems and easy USB interface
Jump to Description
View full details

Description

The Sig100 is a sleek and compact monochrome signature pad designed with advanced resistive technology, ensuring a natural and seamless signing experience. Its slim, ergonomic design makes it an ideal solution for any professional environment. Featuring a 4-inch backlit display with real-time signature visualization, the Sig100 offers exceptional accuracy with 4096 x 4096 resolution and 1024 pressure levels. Security is paramount with AES and RSA encryption, ensuring safe data transfer and storage. Compatible with a wide range of operating systems and equipped with a USB interface, the Sig100 is easy to integrate and use.

Part Number ST-BE105-2-UEVL
Supported OS
  • Windows® XP 32/64
  • Windows® 7 32/64
  • Windows® 8 32/64
  • Windows® 10 32/64
  • Windows® Server 2003, 2008, 2010
  • Linux
Certifications TUV, CE, FCC, RoHS, EN 60950-1, EN 61000-6-1, EN 61000-6-3
Protection Class IP52
Display 4'' (10.5 cm), Monochrome, Backlit, 320 x 160 pixels
Active Signing Area 95 x 47 mm
Resolution 4096 x 4096 pixels / 2214 x 1130 ppi
Pressure Levels 1024
Digitization 500 Hz external, 6000 Hz internal sampling rates
Security AES and RSA encryption, Unique internal serial number
Dimensions 10 x 160 x 120 mm (0.39’’ x 6.29’’ x 4.72’’)
Weight 200 g (0.44 lbs)
Interface Full-speed USB 2.0 HID
Power Via USB cable
Software Compatible with signoSign/2 (Sold Separately), Free SDK and Twain driver available
Warranty 2 years
