Professional credentials, printed at your desk

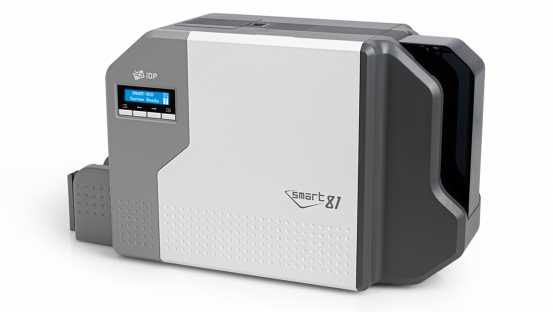

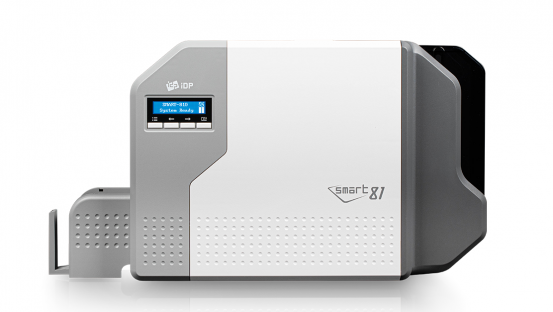

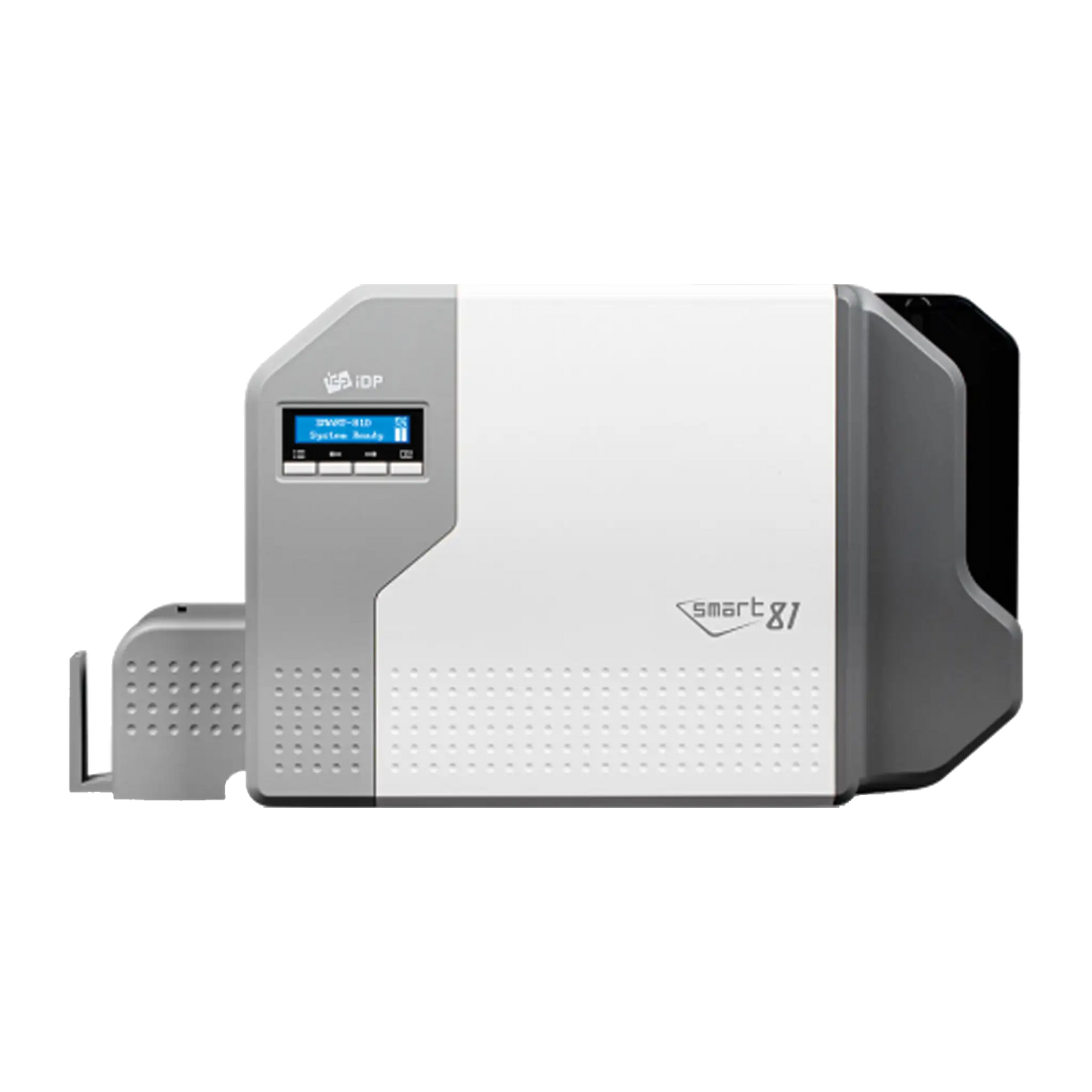

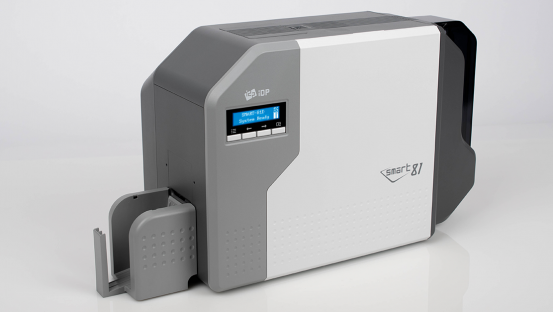

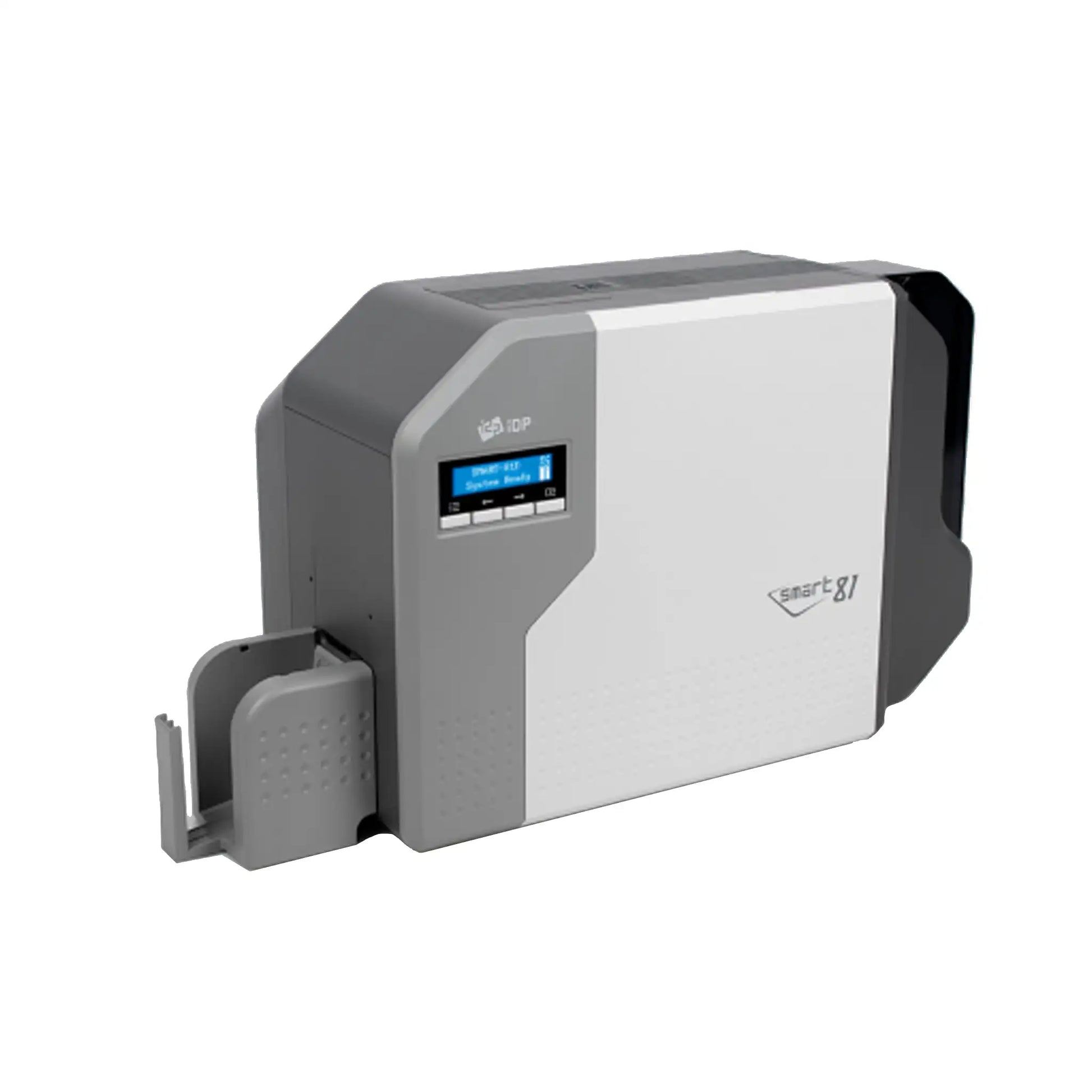

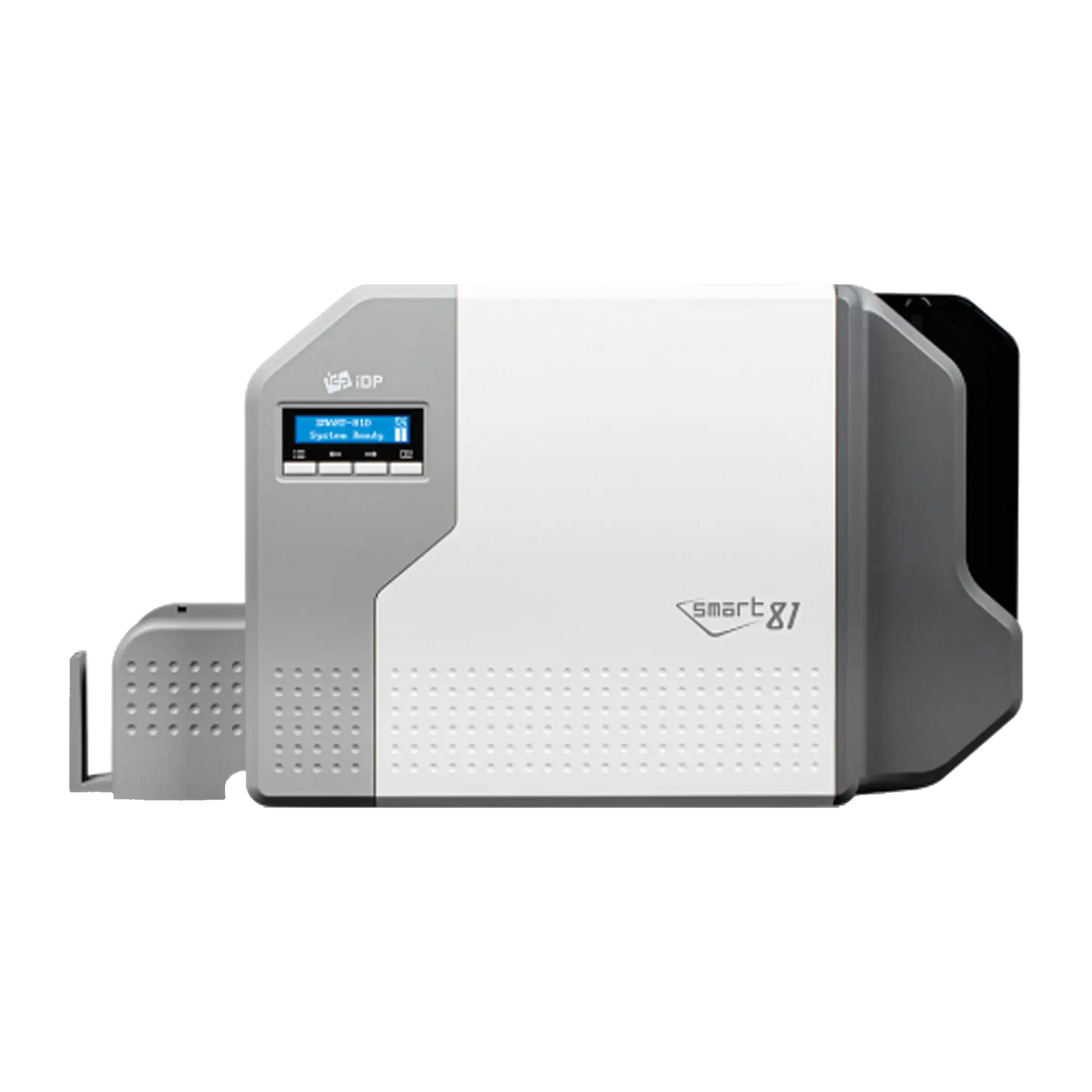

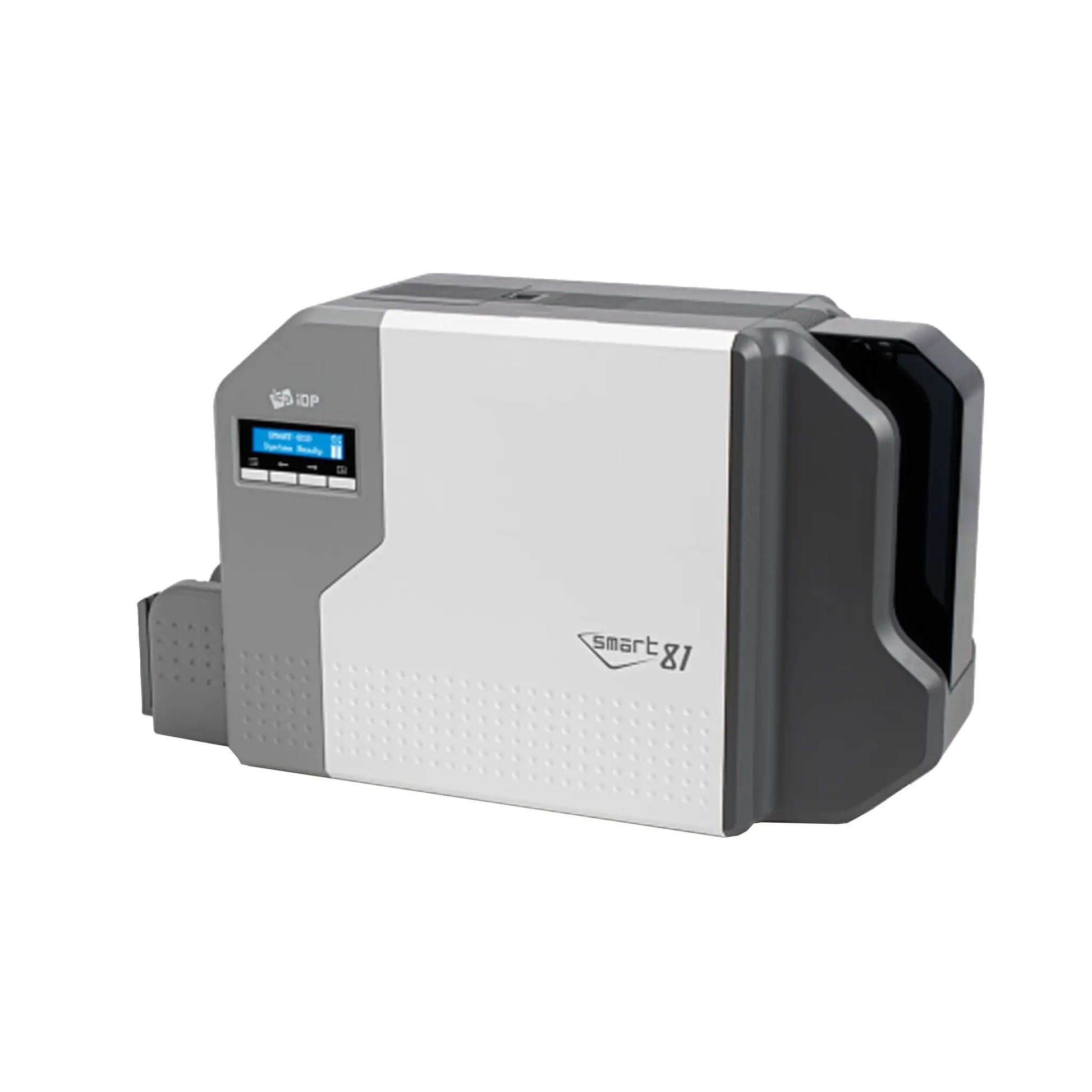

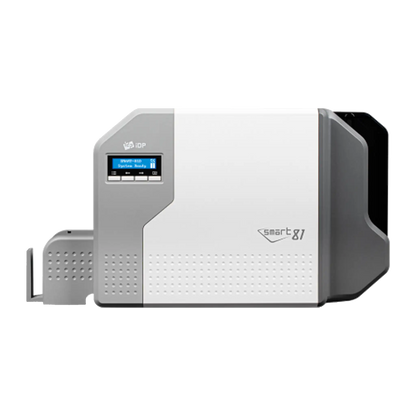

The IDP SMART-81D is a dual-sided retransfer ID card printer for programs that print both sides of every card: access control and employee badges, government and campus IDs, and bank or technology cards. It prints each image onto a clear retransfer film and bonds that film onto the card, so color runs right to the edges on the front and the back, on blank cards and smart cards alike.
IDP's Rapid Retransfer Printing (RRP) skips the long warm-up of older retransfer printers, so the SMART-81D is ready within seconds of power-on. An internal flipper turns each card for the back; with a YMCKK ribbon it prints full color on the front and resin black on the back at up to 84 cards per hour. The 200-card input hopper, 100-card output stacker and dust-reducing airflow design suit steady daily runs, and USB and Ethernet are standard.
This is the dual-sided, print-only configuration at 300 dpi. Add magnetic stripe, contact or contactless smart card encoding, Wi-Fi, a physical security lock or the SMART-81L laminator from the upgrades in the buy box. IDP's SMART IDesigner card design software is included as a free Windows download. For Mac, or for database-driven badging and more advanced layouts, ID-ALL is the step up. IDP backs the SMART-81 with a 3-year Advanced Exchange warranty and a lifetime print head warranty.
Consumables
A complete list of compatible consumables for the IDP SMART-81D. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| 653547 | IDP YMCK Ribbon and Film Pack, 500 Prints |
| 653378 | IDP YMCKK Ribbon, 500 Prints |
| 653379 | IDP YMCFK UV Ribbon, 500 Prints |
| Part Number | Description and Yield |
|---|---|
| 653431 | IDP Retransfer Film, 500 Prints |
| Part Number | Description and Yield |
|---|---|
| 653629 | IDP Clear Patch Laminate, 500 Patches |
| 900849 | IDP Globe Flags Laminate, 500 Patches |
| 900850 | IDP Globe Flags ThinFilm, 1000 Images |
| 653630 | IDP Celestial Laminate, 500 Patches |
| 653631 | IDP Clear IC Chip Laminate, 500 Patches |
| 900868 | IDP Alternating IC Chip Laminate, 250 Patches |
| Part Number | Description |
|---|---|
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
| CR8030COMP | Composite PVC/PET Blank Cards, CR-80 30mil |
| SPID-9630 | Specialist ID Blank White PVC Cards, CR-80 30mil |
| SPID-9790-WHITE | Specialist ID HiCo Mag Stripe PVC Cards, CR-80 30mil |
| SPIDPROX | HID Compatible Prox Cards |
| SPIDprox26H | Prox Cards With Magnetic Stripe |
| COM/D41 | MIFARE DESFire EV1 4K Cards |
Technical Specifications
- Print method
- Dye-sublimation / resin thermal retransfer (IDP Rapid Retransfer Printing)
- Print sides
- Dual-sided (internal flipper), over-the-edge (full bleed)
- Resolution
- 300 dpi
- Print speed, YMCK single-sided
- up to 144 cards per hour (max. 25 seconds per card)
- Print speed, YMCKK dual-sided
- up to 84 cards per hour (max. 43 seconds per card)
- Card size
- ISO CR80 (2.125 x 3.375 in / 54 x 86 mm)
- Card thickness
- 30 to 64 mil (0.76 to 1.6 mm)
- Card types
- PVC, PET, composite PVC
- Card capacity
- 200-card input hopper, 100-card output stacker, 25-card reject bin
- Display
- 2-line graphic LCD with 4 buttons
- Connectivity
- USB and Ethernet (Wi-Fi optional with the SMARTWi-Fi kit 653543)
- Encoding
- None (add magnetic stripe, contact or contactless encoding as an upgrade)
- Operating systems
- Windows 10 and 11 (64-bit), macOS 11 and later, Linux
- Security
- administrator and user passwords, PC authentication, data encryption over USB and SSL over Ethernet, SNMPv3, Kensington slot; optional physical security lock (653542)
- Power
- 100-240 V AC, 50/60 Hz, 2.5 A
- Operating environment
- 59 to 95 F (15 to 35 C), 35 to 70% humidity
- Lamination
- optional SMART-81L laminator module (653635), field-installable; links to the printer by infrared
- Dimensions
- 18.1 W x 8.8 D x 12.2 H in (460 x 224 x 310 mm)
- Weight
- 25.13 lb (11.4 kg)
- Warranty
- 3-year Advanced Exchange; lifetime print head warranty
- In the box

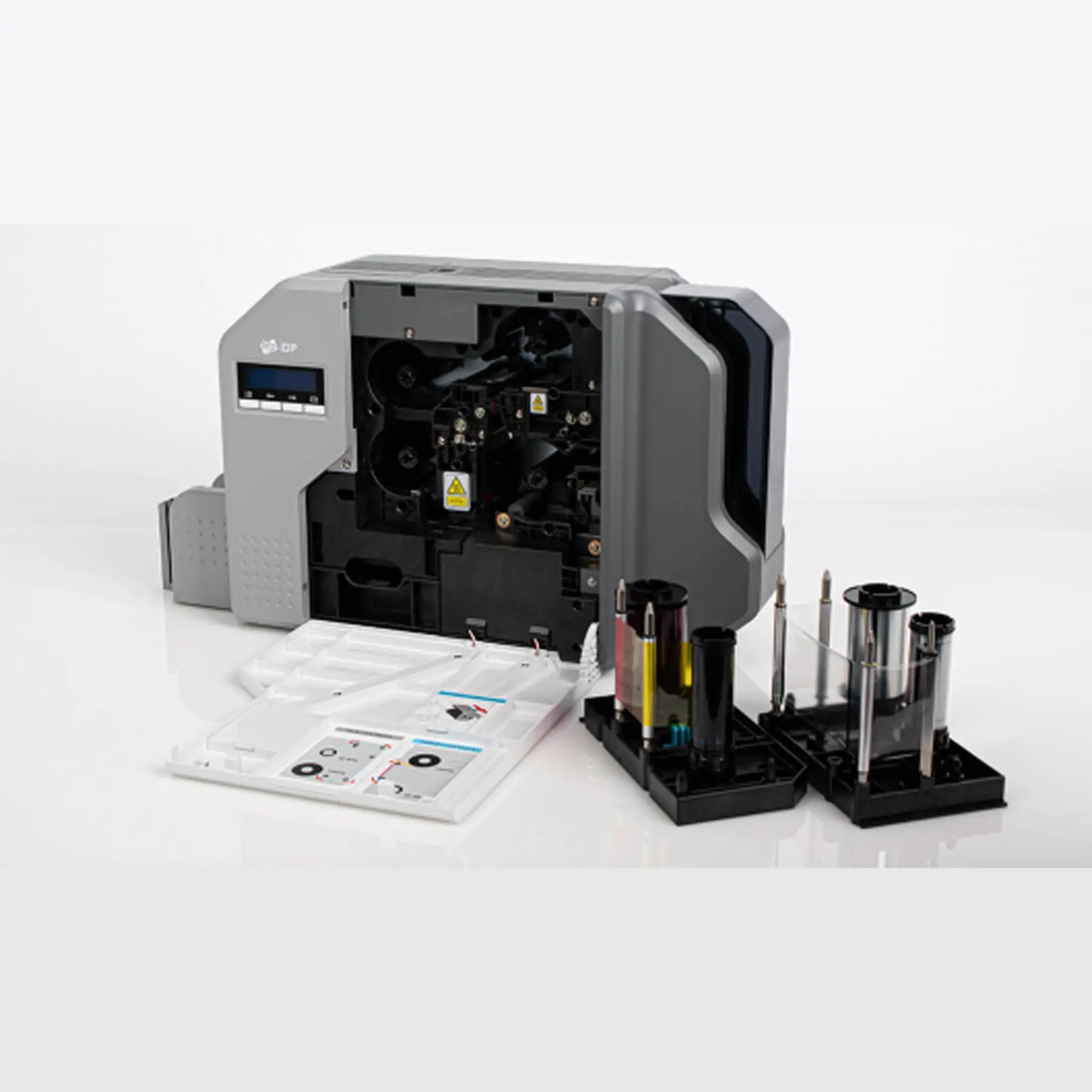

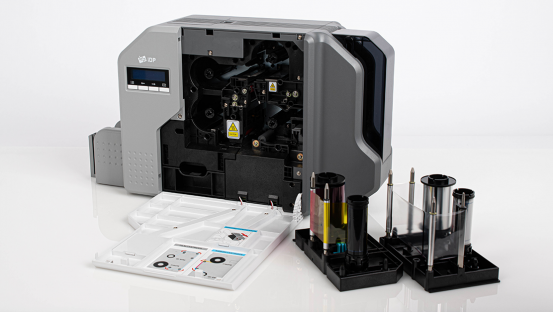

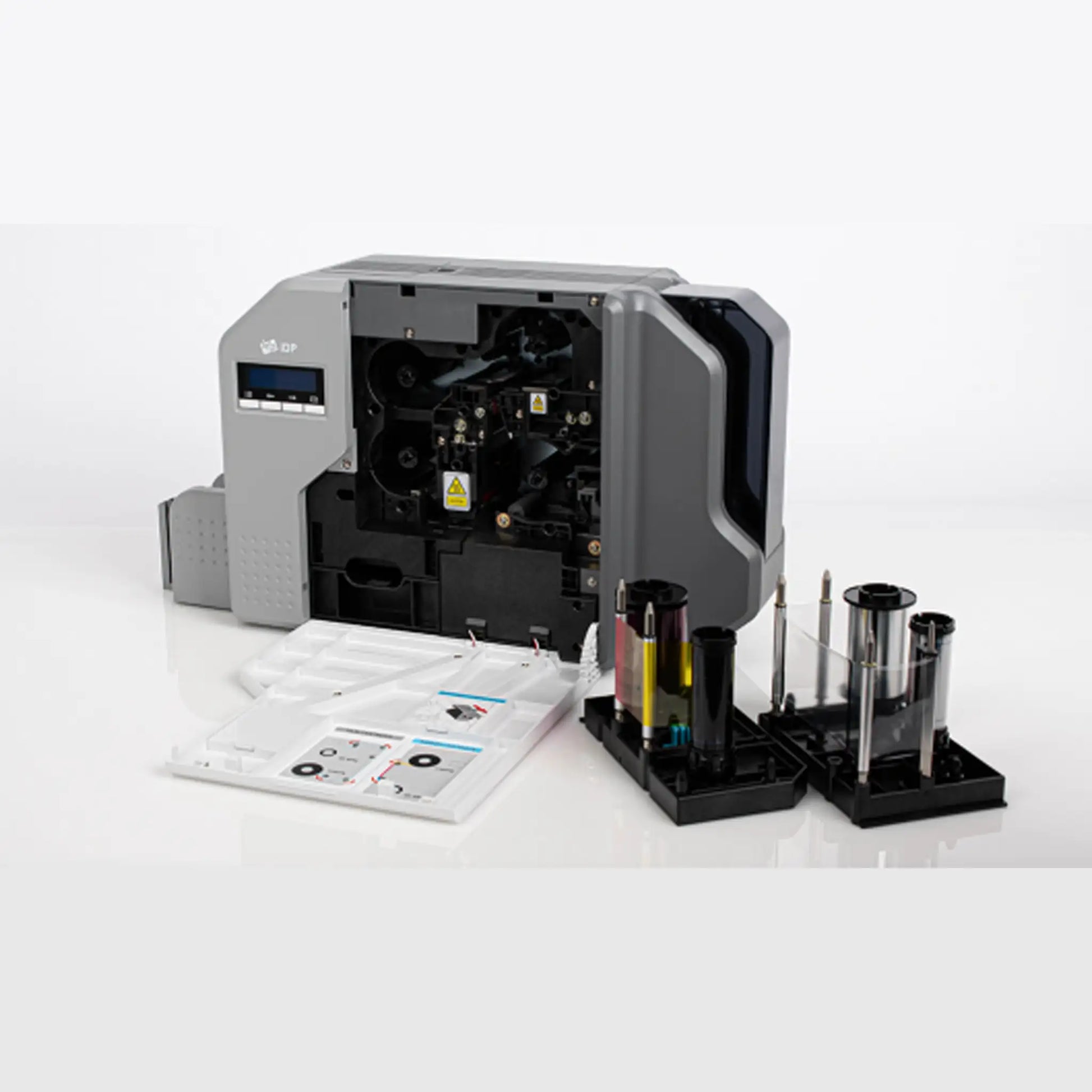

- printer, AC power cable, USB cable, card stacker, ribbon cartridge and retransfer film cartridge (installed), cable protection cover, quick guide
Compatible Supplies
Genuine IDP ribbons and supplies matched to the SMART-81.
