Evolis S10176 Extension Board – Dual SAM Slot Expansion for Elyctis Module in Primacy 2, Zenius, and Elypso Printers
Evolis S10176 Extension Board – Dual SAM Slot Expansion for Elyctis Module in Primacy 2, Zenius, and Elypso Printers
IN STOCK
$0.00 each
Volume Pricing Availale
Save up to 0%
Current Discount: 0%
Next: -
| Quantity | Discount |
|---|
Product Specifications
Product Specifications
-
Part number: S10176
- Compatible with Primacy, Primacy 2, Zenius, and Elypso printers when equipped with the Elyctis Dual Encoding Module
- Adds two secure SAM slots so you can load multiple cryptographic keys without manual swapping
- Streamlines multi-application encoding for government IDs, banking cards, and access credentials
- Supports tamper-resistant authentication by isolating secure key storage in dedicated hardware modules
- Accelerates high-volume workflows by eliminating production pauses between card types
- Installs directly into Elyctis Dual Encoding Module with included spacers and mounting hardware
- Maintains compliance with EMV, FIPS, and smart card security standards for regulated environments
- Professional-grade reliability trusted by IT, security, and card operations teams across critical infrastructure
Total Price:
$0.00
Description

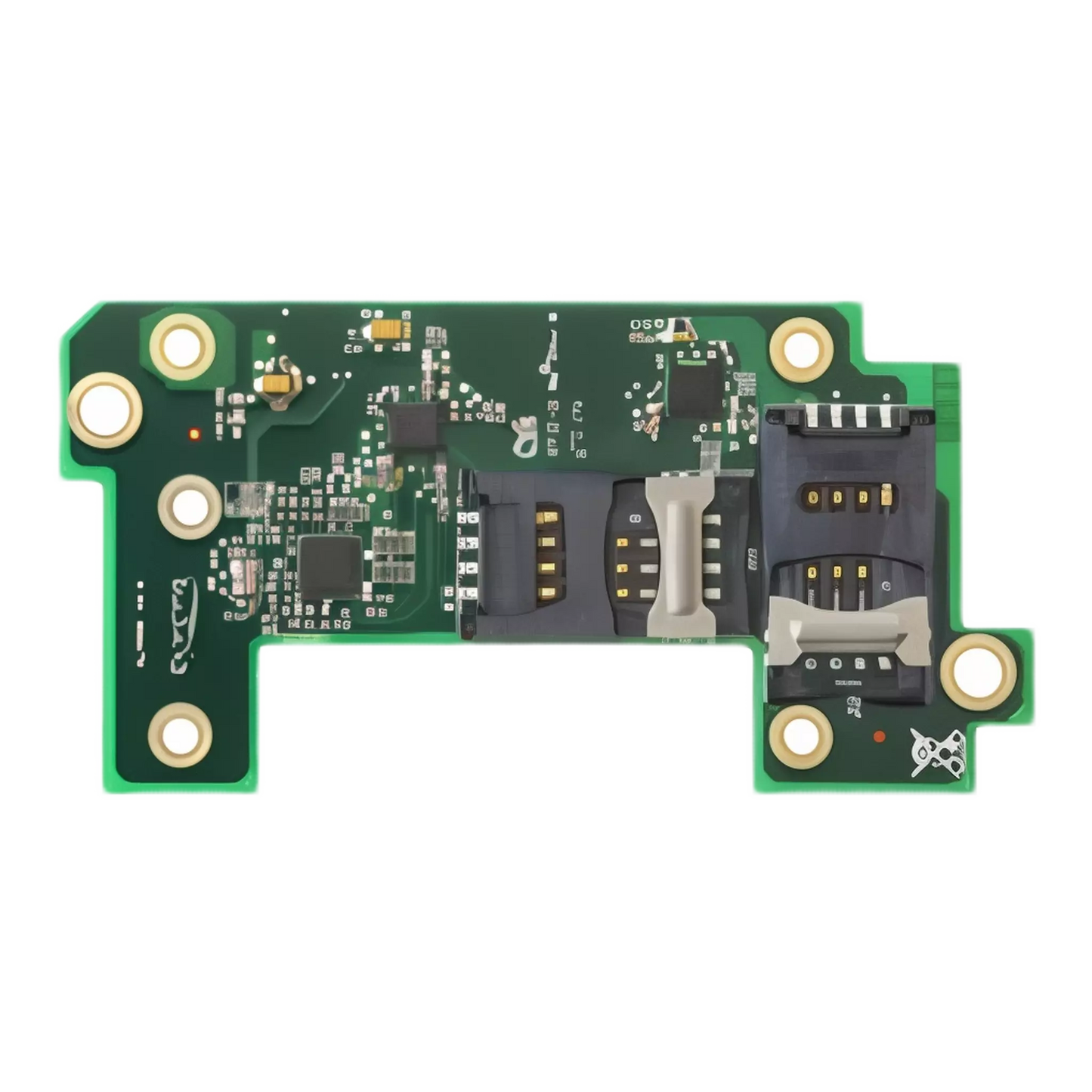

Evolis S10176 2 SAM Slots Extension Board Kit for Elyctis Dual Encoding Module
Here's how to expand your smart card encoding capabilities with multiple secure keys
Why You Need Multiple SAM Slots
- Handle multiple security schemes — different keys for building access, computer login, payments
- Streamline encoding operations — no manual swapping of security keys during production
- Support complex applications — government IDs, financial cards, transit passes on one system
- Enhance data security — tamper-resistant cryptographic key storage
- Prevent fraud and counterfeiting — authentic data encoding with multiple verification layers
- Meet compliance standards — EMV for banking, secure protocols for government applications
What's in the Extension Kit
- 2 SAM slots extension board — adds secure key storage capacity
- Installation screws — proper mounting hardware included
- Spacers — correct positioning components
- Installation instructions — step-by-step setup guide
- Compatibility assurance — designed specifically for Elyctis Dual Encoding Module
The S10176 solves a critical security bottleneck: when you need multiple secure keys for different card applications. Instead of manually swapping SAM modules, you can load multiple security schemes simultaneously.
What SAM Slots Actually Do
Secure Access Modules store cryptographic keys: Think of SAM slots as ultra-secure vaults that hold the "master keys" for different card applications. Each SAM contains the cryptographic keys needed to encode specific types of secure cards.
Multiple applications require different keys: Your building access cards use different security keys than your payment cards or computer login credentials. With only basic SAM slots, you'd need to manually swap modules for different card types.
Tamper-resistant protection: SAMs protect cryptographic keys in a tamper-proof environment. If someone tries to physically attack the module, it destroys the keys rather than revealing them.
Real-World Applications
Healthcare systems: Patient cards for medical records, staff badges for building access, and payment cards for cafeteria use — all from one encoding station with different security levels.
Government facilities: Security clearance cards, building access, computer login, and vehicle access — each requiring different cryptographic protocols and security keys.
Financial institutions: Employee access cards, customer payment cards, and secure facility access — all with bank-grade security requirements but different application protocols.
Technical Specifications
| Component | Specification | What This Means |
|---|---|---|
| SAM Slot Capacity | 2 additional Secure Access Module slots | Doubles the number of simultaneous security keys available |
| Board Type | Extension board for Elyctis Dual Encoding Module | Dedicated hardware designed for seamless integration |
| Installation Hardware | Screws and spacers included | Complete mounting kit for secure internal installation |
| Compatibility | Evolis Elyctis Dual Encoding Module only | Specifically engineered for this encoding module |
| Supported Printers | Zenius, Primacy, Primacy 2, Elypso (with Elyctis module) | Works with major Evolis printer lines that support smart card encoding |
| Security Standards | Tamper-resistant SAM module support | Maintains enterprise-grade cryptographic security |
| Key Management | Multiple simultaneous security schemes | Eliminates manual SAM swapping for different applications |
| Installation Type | Internal hardware upgrade | Professional installation recommended for warranty compliance |
| Power Requirements | Powered via Elyctis module connection | No external power required |
| Operating Environment | Standard office conditions (15°C to 30°C) | Same environmental requirements as host printer |
| Cryptographic Support | Multiple encryption protocols via SAM modules | Supports various security standards simultaneously |
| Application Support | Multi-application smart card encoding | Single card can contain multiple secure applications |
| Warranty | Standard Evolis warranty with professional installation | Full manufacturer support when properly installed |
Compatible Printer Systems
The S10176 works only with printers that have the Elyctis Dual Encoding Module installed. Here's what's compatible:
Printers with Elyctis Dual Encoding Module
Most Popular
Evolis Zenius Series
Single-sided printers that can be equipped with the Elyctis Dual Encoding Module. The S10176 adds expanded SAM capacity to these systems.
🖨️ Single-sided printing with enhanced smart card encoding
Evolis Primacy Series
Dual-sided printers with Elyctis module support. Adding the S10176 creates a powerful multi-application card production system.
🖨️ Dual-sided printing with multiple security schemes
Evolis Primacy 2 Series
Next-generation dual-sided printers fully compatible with Elyctis modules and S10176 expansion boards.
🖨️ Advanced printing with expanded encoding capabilities
Evolis Elypso Series
High-volume production printers that support the Elyctis module and S10176 for demanding enterprise environments.
🏭 High-volume production with multiple security protocols
Critical Compatibility Requirements
Elyctis Dual Encoding Module Required
The S10176 is NOT a standalone product. It only works as an expansion for the Evolis Elyctis Dual Encoding Module. Your printer must have this module installed first.
⚠️ Base module required before adding S10176 expansion
Professional Installation Recommended
This is an internal hardware component that requires opening the printer and encoding module. Professional installation prevents damage and maintains warranty coverage.
🔧 Protect your investment with proper installation
Security Applications by Industry
Government & Law Enforcement
National ID cards, driver's licenses, and law enforcement credentials requiring multiple security levels and protocols on single cards.
🏛️ Multi-level security for official credentials
Financial Institutions
Payment cards with chip and PIN technology, employee access cards, and secure facility credentials using different cryptographic schemes.
💳 Bank-grade security with operational flexibility
Transportation Agencies
Public transit passes using secure contactless technology with multiple fare systems and access control applications.
🚌 Multi-application transit and access credentials
Healthcare Providers
Secure patient and staff cards protecting sensitive data while supporting multiple applications like access control and payments.
🏥 HIPAA-compliant multi-application credentials
Installation & Setup Process
The S10176 requires internal installation into the Elyctis Dual Encoding Module. Here's what's involved:
Before You Start
Verify Compatibility
✓ Compatibility verification prevents issues
Installation Kit Contents
📦 Complete hardware kit included
Professional Installation Benefits
🔧 Recommended for enterprise applications
Installation Overview
System Preparation
Hardware Installation
System Validation
Post-Installation Setup
SAM Module Configuration
Software Integration
Quality Assurance
What You'll Need for Multi-SAM Operations
Complete setup requirements for expanded smart card encoding capabilities:
Essential Components
Required Hardware
⚠️ All components required for functionality
SAM Modules
🔐 Multiple SAMs enable multiple applications
Smart Cards
💳 Quality cards essential for security applications
Requirements by Application Type
Government Applications
Financial Applications
Healthcare Applications
Operational Supplies
Maintenance Supplies
Security Management
Testing Equipment
Common Questions
From our experience with multi-SAM encoding installations, these are the questions we get most often:
What does the S10176 extension board actually do?
The S10176 adds two additional Secure Access Module (SAM) slots to your Elyctis Dual Encoding Module. This lets you load multiple security keys simultaneously instead of manually swapping SAM modules for different card applications. You can encode cards for building access, computer login, and payments without changing security modules.
Is Specialist ID an authorized Evolis dealer?
Yes. Specialist ID is an authorized dealer for Evolis ID printers and consumables in the United States. We provide full warranty support, technical assistance, and access to genuine Evolis components including SAM extension boards and encoding modules.
Which printers work with the S10176 extension board?
The S10176 only works with printers that have the Evolis Elyctis Dual Encoding Module installed. This includes Zenius, Primacy, Primacy 2, and Elypso printers. The extension board is not compatible with other encoding modules or standalone printers.
Why would I need multiple SAM slots instead of just swapping modules?
Multiple SAM slots eliminate production bottlenecks when encoding cards for different security applications. Instead of stopping production to manually swap security modules, you can have all your security schemes loaded simultaneously. This streamlines encoding for multi-application cards and reduces setup time.
What's included in the S10176 extension kit?
The kit includes the 2 SAM slots extension board, mounting screws, positioning spacers, and installation documentation. Everything needed for hardware installation is included, though professional installation is recommended for warranty compliance and optimal performance.
Is the S10176 difficult to install?
The S10176 requires internal installation into the Elyctis module, which involves opening the encoding module and connecting internal components. While instructions are included, professional installation ensures proper integration and maintains warranty coverage for security-critical applications.
Can the S10176 work with other brands of printers?
No. The S10176 is specifically designed for the Evolis Elyctis Dual Encoding Module and only works with Evolis printers that support this module. It's not compatible with other manufacturer's encoding systems or standalone smart card readers.
How does the S10176 improve security for smart card encoding?
The S10176 improves security by enabling multiple tamper-resistant SAM modules to store different cryptographic keys simultaneously. This protects sensitive data during encoding and provides authentic verification for each encoded card, while supporting complex multi-application security schemes.
What types of organizations benefit most from the S10176?
Organizations that issue cards for multiple security applications benefit most: government agencies creating multi-level access cards, healthcare systems with HIPAA requirements, financial institutions needing EMV compliance, and educational institutions with campus-wide multi-application credentials.
Does the S10176 require special maintenance or support?
The S10176 follows the same maintenance schedule as the Elyctis module itself. Regular cleaning of SAM slots and connections is important, and SAM modules should be handled according to their security protocols. We provide ongoing support for complex multi-SAM configurations.
