Description

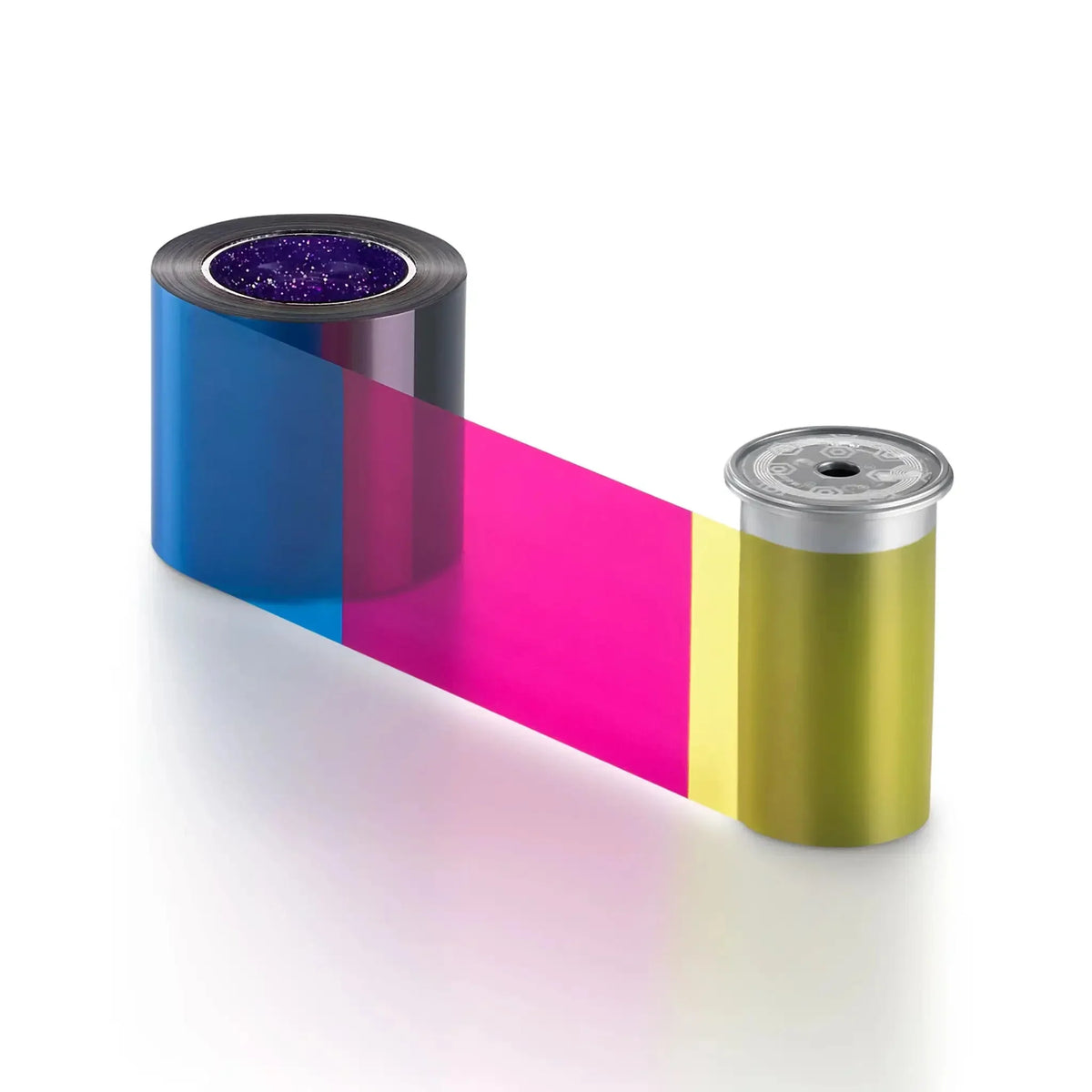

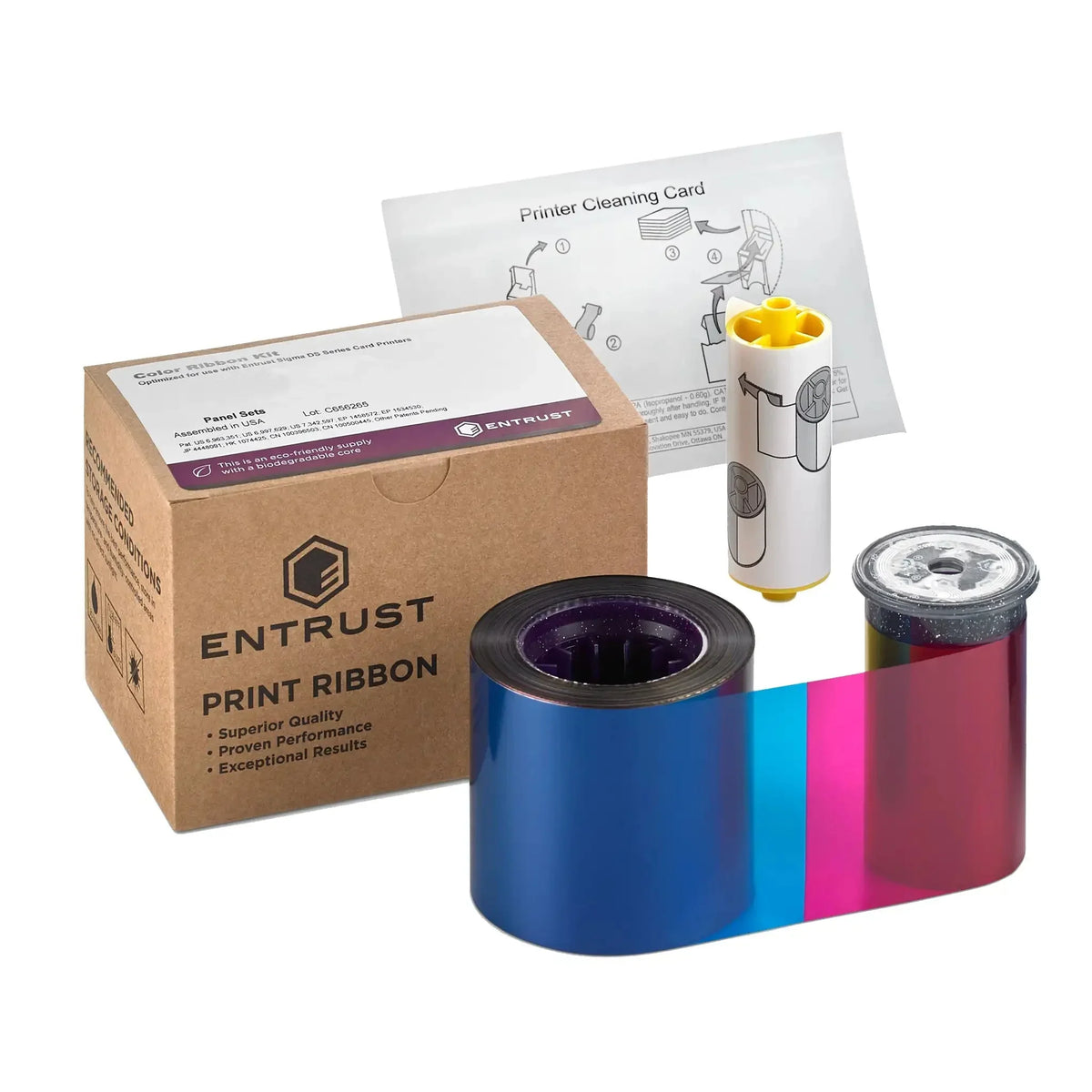

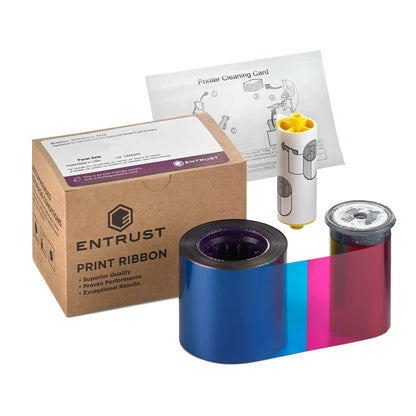

The Entrust 534100-001-R003 is a YMCKT regional color ribbon kit for the Entrust SD160 card printer. Yellow, magenta and cyan panels print full-color images, a black resin K panel prints text and readable barcodes, and a clear T topcoat panel protects the finished card. Each roll prints 250 cards.
The SD160 uses its own regional supply line. This ribbon carries the -R003 suffix, which is the SD160 platform's regional code; the SD260, SD360 and SD460 use -R010 parts instead. The two are not interchangeable, so match the suffix to the printer.
About regional ribbons
The first time a regional ribbon is loaded, the printer is permanently set to regional supplies. After that the legacy non-regional YMCKT, ymcKT and YMCKT-KT ribbons can no longer be used in that printer and will display Supply region not valid 224. Entrust's guidance is to use up any legacy color ribbon stock before loading the first regional ribbon. A printer that has already been switched shows its region code to the right of the model number on the LCD.
Printer firmware must be at D2.15.3xx or higher, or D3.16.3xx or higher. Printers shipped since August 2016 already include it. A regional ribbon loaded into a printer with older firmware displays Print ribbon not supported 119.
Specifications
- Part number: 534100-001-R003
- Type: YMCKT regional color ribbon kit
- Panel configuration: Yellow, magenta and cyan for full color, a black resin panel for text and barcodes, and a clear topcoat
- Rated yield: 250 cards per roll
- Compatible printer: Entrust SD160
