Professional credentials, printed at your desk

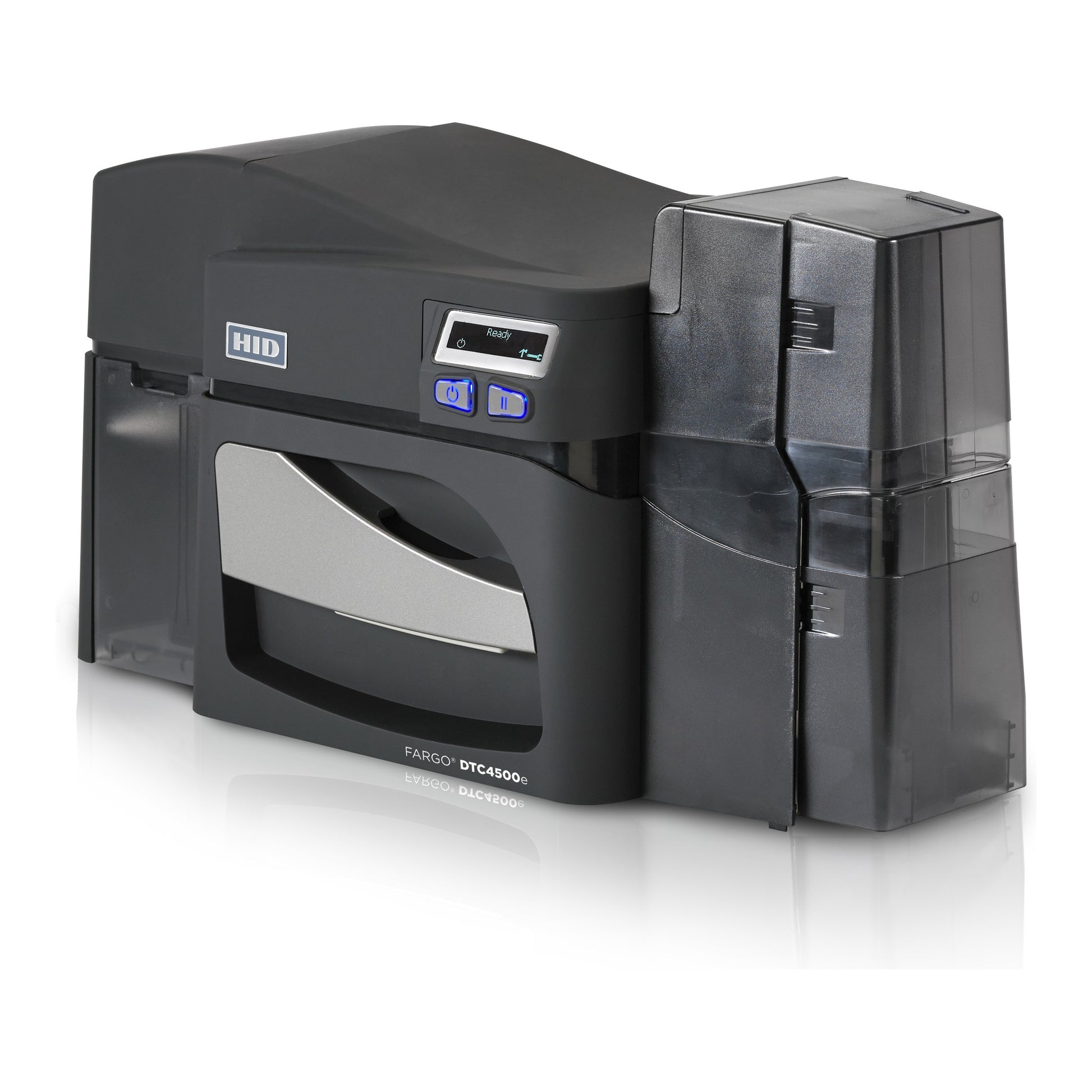

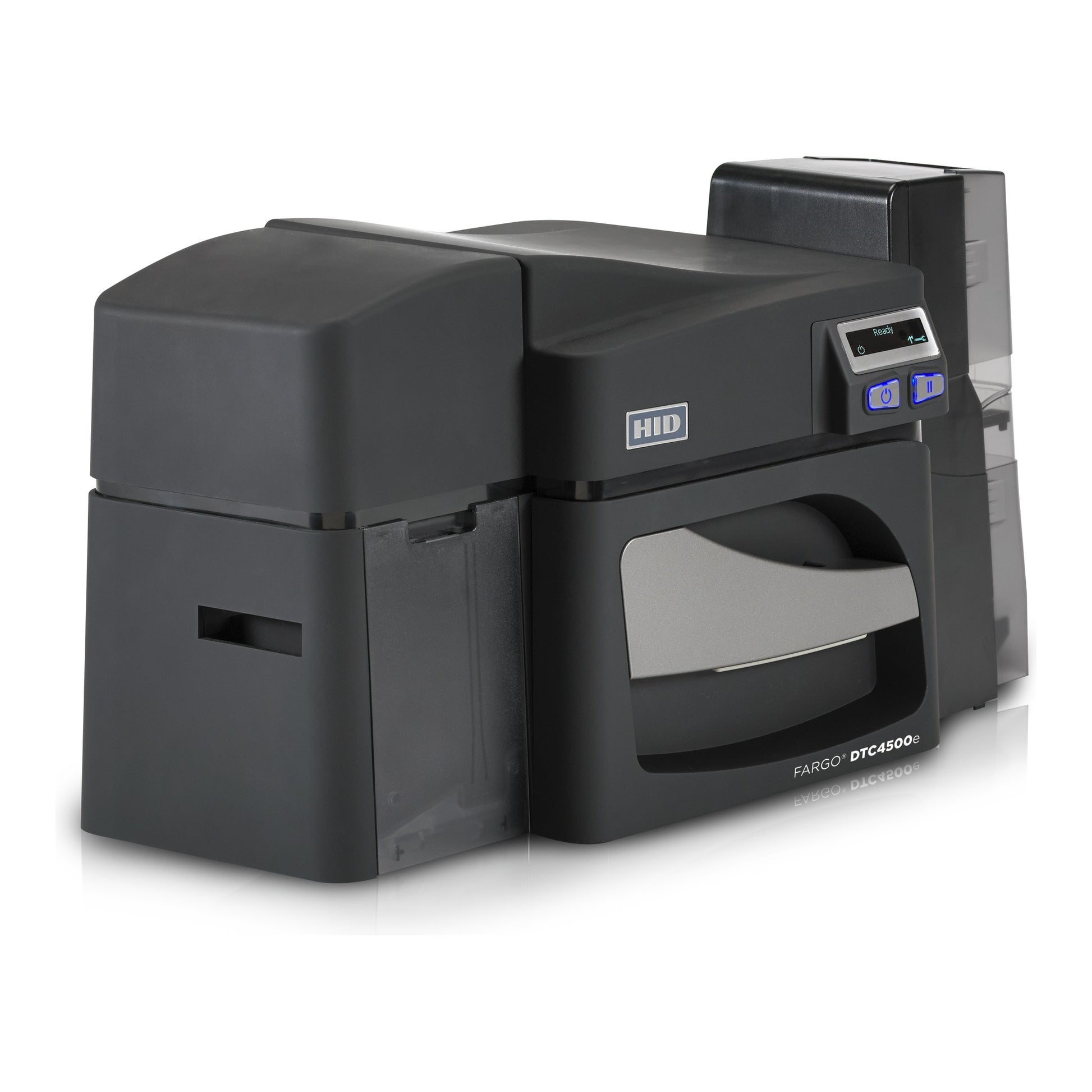

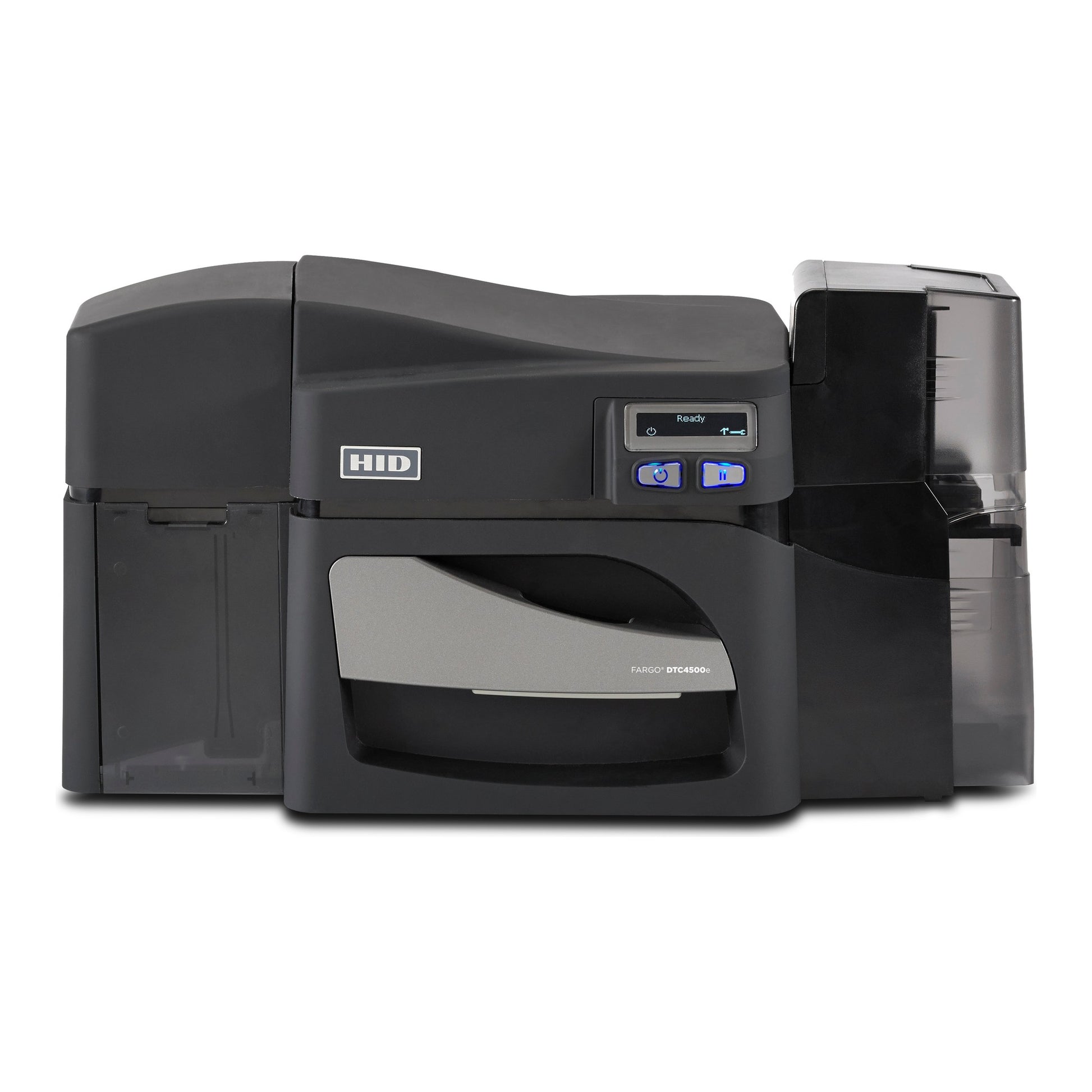

The HID FARGO Connect Enabled DTC4500e, part number 078003 (also listed as 78003), is the dual-sided DTC4500e built for HID's FARGO Connect cloud card-issuance platform. Instead of installing printer drivers on individual workstations, card offices design templates, capture data, and issue cards from any supported device through FARGO Connect's secure cloud or on-premises platform - with real-time printer visibility, consumables monitoring, and remote issuance to distributed locations.
The hardware is the same high-volume DTC4500e engine: 300 dpi dye-sublimation color with resin thermal transfer, about 16 seconds per full-color card, a 200-card dual input hopper, SmartScreen display, and standard AES-256 encryption with resin scramble data protection. USB 2.0 and Ethernet with an internal print server are standard.
Please note: FARGO Connect Enabled printers operate through the HID FARGO Connect platform, which requires a FARGO Connect Console and an annual FARGO Connect subscription, sold separately. Contact Specialist ID before ordering and we will help configure the complete solution for your card program. HID backs the DTC4500e with a three-year printer and printhead warranty.
Consumables
A complete list of compatible consumables for the HID FARGO Connect DTC4500e. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| 045230 | HID FARGO ECO YMCKO Ribbon, 700 Prints |
| 045231 | HID FARGO ECO YMCKOK Ribbon, 600 Prints |
| 045233 | HID FARGO ECO YMCKO Half-Panel, 1,000 Prints |
| 045209 | HID FARGO YMCFKO Ribbon, 500 Prints |
| 045201 | HID FARGO Premium Black (K) Ribbon, 3,000 Prints |
| 045202 | HID FARGO Standard Black (K) Ribbon, 3,000 Prints |
| 045206 | HID FARGO White Ribbon, 2,000 Prints |
| 045200 | HID FARGO YMCKO Ribbon, 500 PrintsDiscontinued – limited stock |
| 045210 | HID FARGO YMCKOK Ribbon, 500 PrintsDiscontinued – limited stock |
| 045214 | HID FARGO YMCKO Half-Panel, 850 PrintsDiscontinued – limited stock |
| 045215 | HID FARGO YMCKK Ribbon, 500 PrintsDiscontinued – limited stock |
| Part Number | Description |
|---|---|
| SPID-9630 | Specialist ID Blank White PVC Cards, CR-80 30mil |
| SPID-9790-WHITE | Specialist ID HiCo Mag Stripe PVC Cards, CR-80 30mil |
| 081754 | HID FARGO UltraCard PVC, CR-80 30mil (500) |
| 082266 | HID FARGO UltraCard CR-80 Paper-Adhesive (500) |
| 082267 | HID FARGO UltraCard CR-80 Mylar-Adhesive (500) |
| 081759 | HID FARGO UltraCard CR-79 Paper-Adhesive (500) |
| 081758 | HID FARGO UltraCard CR-80 10mil PVC (1,000) |
| 081751 | HID FARGO UltraCard CR-80 HiCo Mag Stripe (500) |
| 081750 | HID FARGO UltraCard CR-80 LoCo Mag Stripe (500) |
| 082136 | HID FARGO UltraCard Premium Composite (500) |
| 082137 | HID FARGO UltraCard Composite HiCo Mag (500) |
| 082279 | HID FARGO UltraCard CR-79 Mylar-Adhesive (500) |
Technical Specifications
- Platform
- HID FARGO Connect cloud card issuance (FARGO Connect Console + annual subscription required, sold separately)
- Print method
- Dye sublimation / resin thermal transfer
- Resolution
- 300 dpi (11.8 dots/mm) continuous tone
- Colors
- Up to 16.7 million / 256 shades per pixel
- Print speed
- 6 sec/card monochrome (K); 8 sec/card (KO); 16 sec/card full-color (YMCKO); 24 sec/card dual-sided (YMCKOK)
- Printing capability
- Dual-sided printing
- Display
- SmartScreen graphical display
- Accepted card sizes
- CR-80; CR-79 adhesive back
- Print area
- CR-80 edge-to-edge
- Accepted card thickness
- 9-40 mil
- Accepted card types
- PVC or polyester with polished PVC finish; 100% polyester (monochrome resin); rewritable cards
- Input hopper
- 200 cards (30 mil) - dual input hopper standard
- Output hopper
- Up to 100 cards (30 mil)
- Card cleaning
- Cleaning roller integrated into ribbon cartridge; replaced with each ribbon change
- Memory
- 32 MB RAM
- Connectivity
- USB 2.0; Ethernet with internal print server
- Security
- Password protection; AES-256 encryption; resin scramble data protection; fluorescent panel printing
- Software
- Driverless issuance through the HID FARGO Connect platform
- Operating temperature
- 65 to 80 F (18 to 27 C)
- Humidity
- 20-80% non-condensing
- Dimensions
- 9.8 in H x 18.7 in W x 9.2 in D
- Weight
- 11 lbs
- Supply voltage
- 100-240 VAC, 50-60 Hz
- Warranty
- 3-year printer; 3-year printhead (unlimited with UltraCard)
Compatible Supplies
Genuine HID Fargo ribbons and supplies matched to the DTC4500e (FARGO Connect).
HID Fargo 45230 ECO YMCKO Ribbon Refill for the DTC4500e, 700 Prints
HID Fargo 45231 ECO YMCKOK Ribbon Refill for the DTC4500e, 600 Prints
HID Fargo 45233 ECO YMCKO Half Panel Ribbon Refill for the DTC4500e, 1000 Prints
HID Fargo 45206 White Ribbon Refill for the DTC4500e and DTC4500 ID Card Printers 2000 Prints
