Professional credentials, printed at your desk

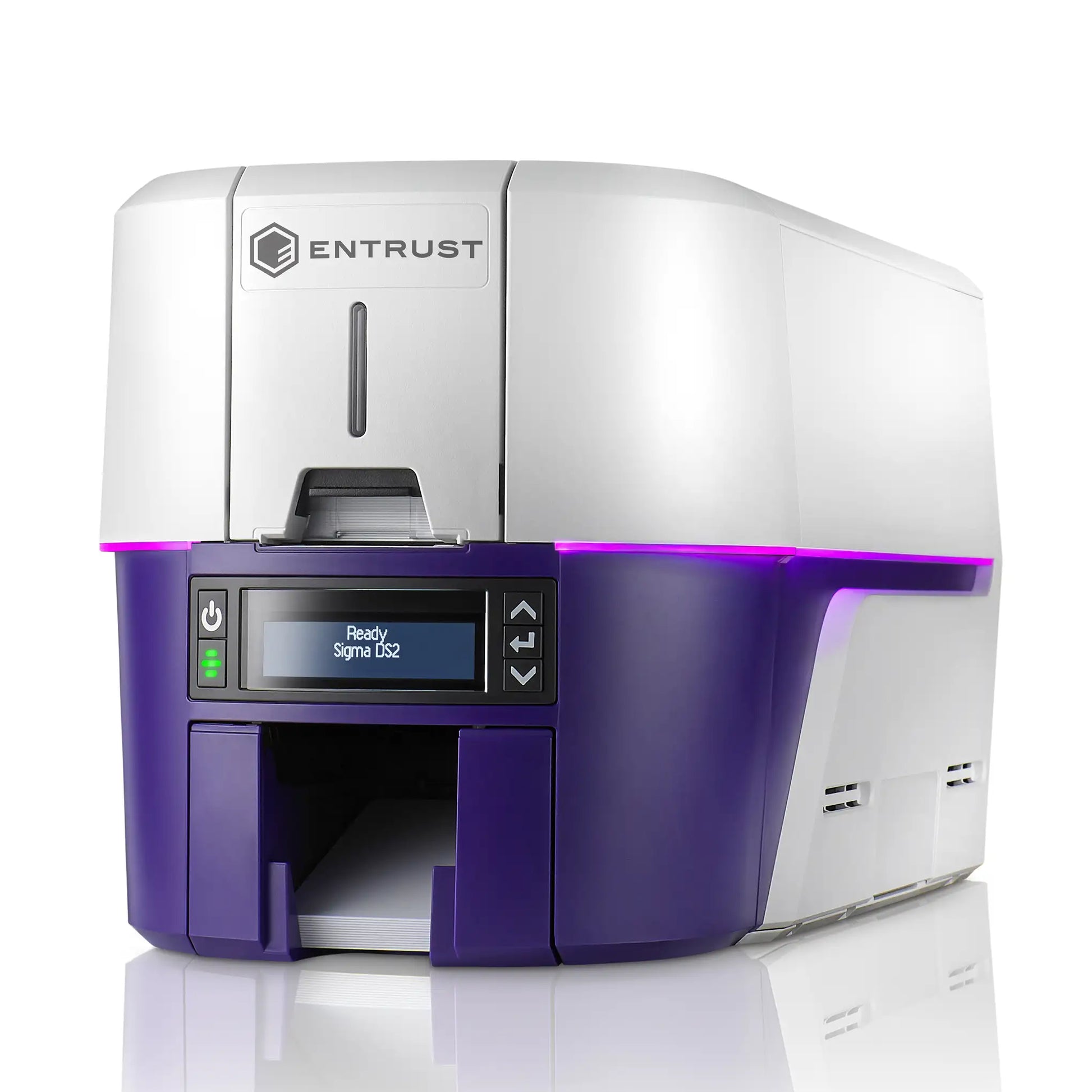

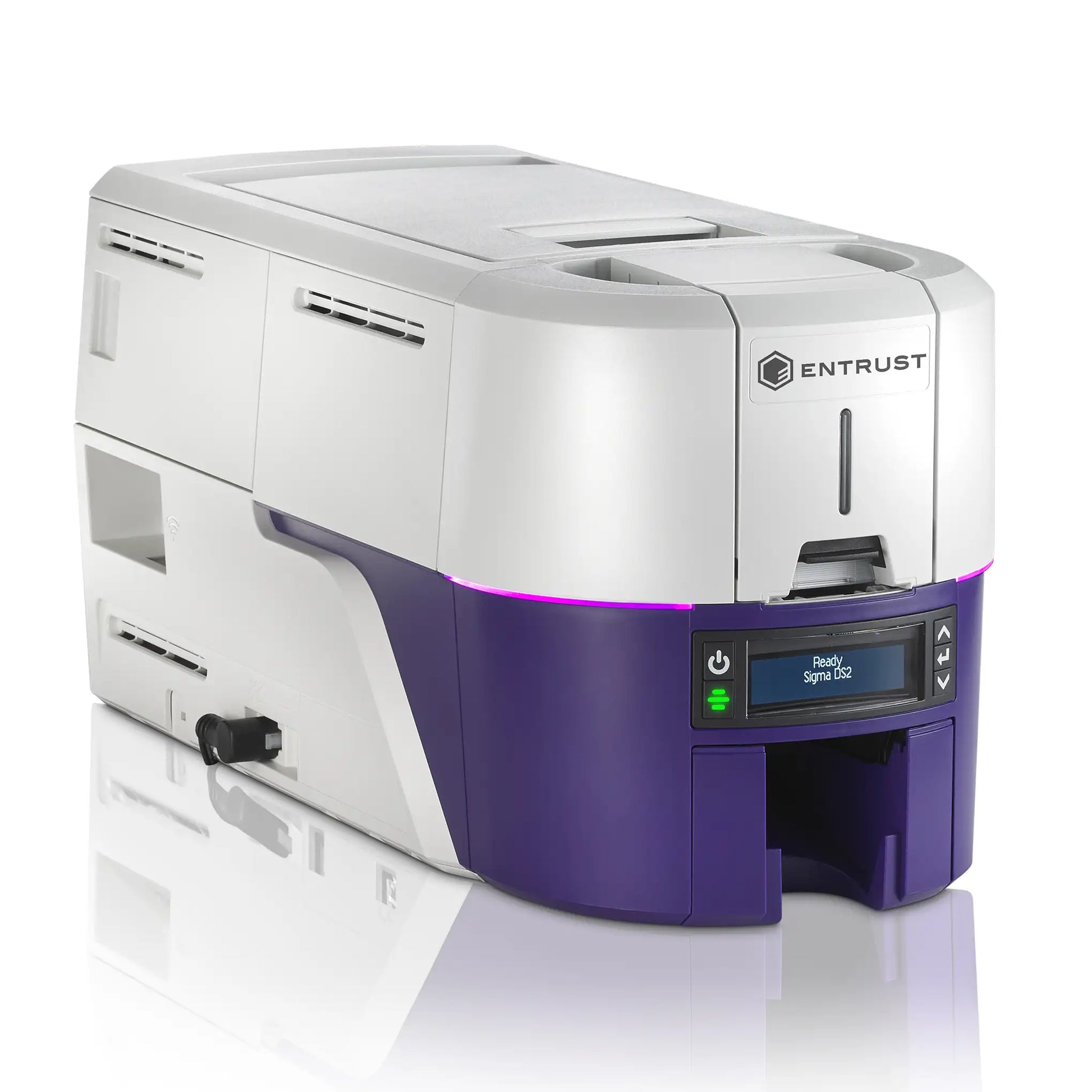

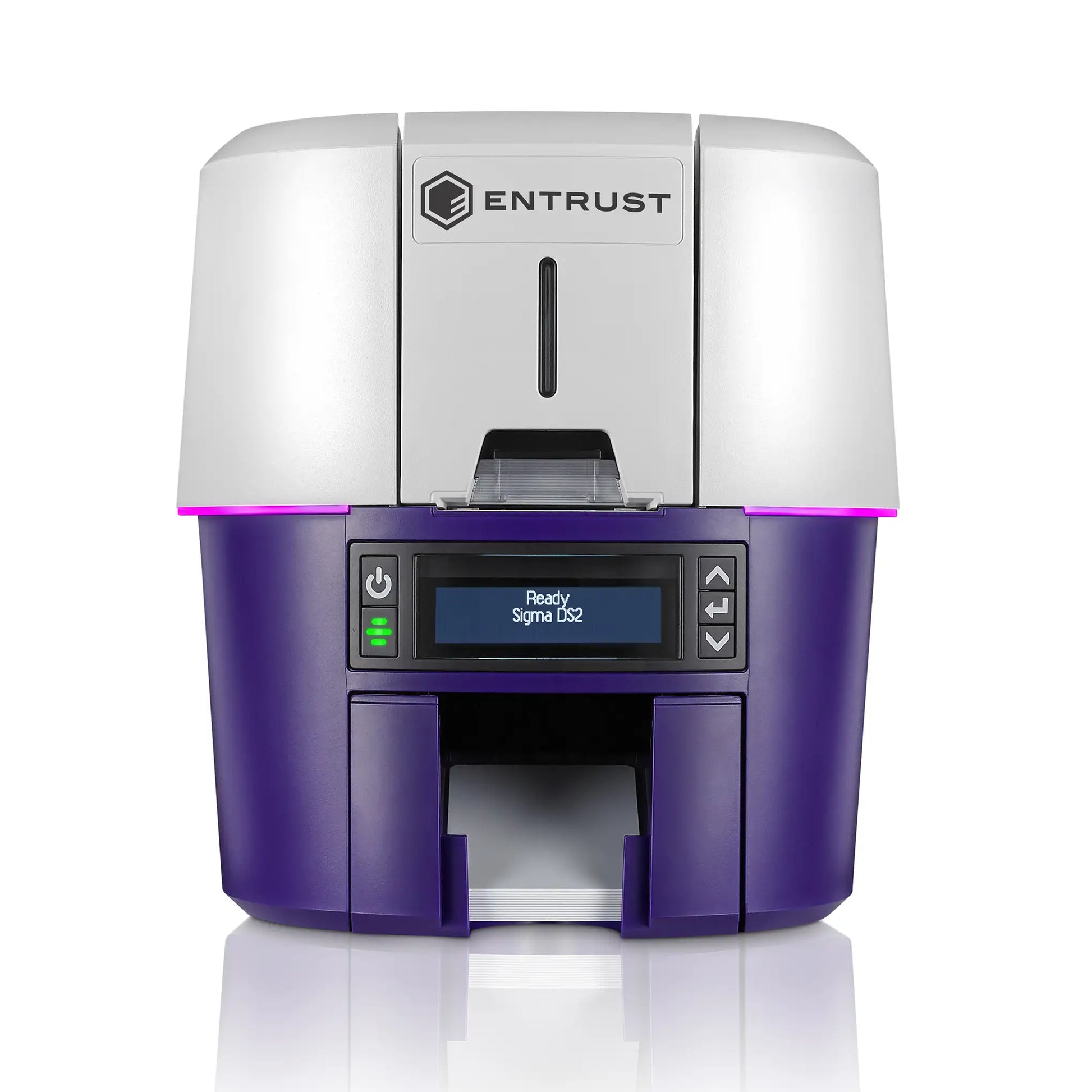

The Entrust Sigma DS2C is the subscription-simple way to own a professional dual-sided ID card printer. It is the same next-generation Sigma engine as the DS2 — front-and-back printing with no manual flipping, smartphone-style setup, and a Printer Dashboard you can manage from your phone — offered at a lower hardware price because the software comes with your ribbons instead of a separate license.
How Instant ID as a Service works
The DS2C runs exclusively on Entrust Instant ID as a Service (IIDaaS) ribbons. Every IIDaaS ribbon includes the license for Entrust’s cloud issuance software for the life of that ribbon: design badges, manage cardholders, and print from a browser — and issue a digital mobile flashpass alongside every physical card. There is no software to buy, install, or maintain; when a ribbon runs out, the next ribbon continues the service. You pay as you print.
Ribbons that include the software

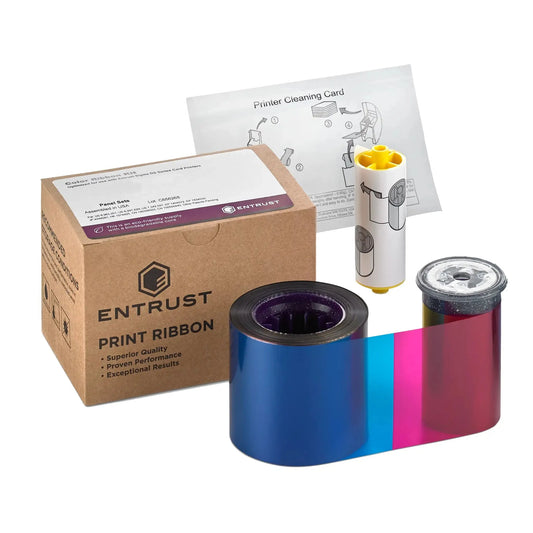

Choose the IIDaaS YMCKT full-color ribbon in 250-print (525170-201) or 500-print (525170-204) sizes, or the IIDaaS YMCKT-KT dual-sided ribbon with black-resin back panels for 350 cards (525170-205). Standard Entrust ribbons are not compatible with the DS2C — if you prefer traditional ribbons with separately purchased software, choose the standard Sigma DS2 instead.
Secure by design
The Sigma platform treats the printer as a trusted IoT device: Secure Boot blocks tampered firmware at power-up, a Trusted Platform Module holds the printer’s own Entrust-backed TLS certificate, every connection to the issuance service is encrypted, and no cardholder data remains in the printer after the card prints.
Room to grow
The DS2C supports the Sigma CLM inline lamination module (sold separately) for tamper-evident, multi-year credentials — laminated cards should be printed on composite PVC/PET card stock. Optional ISO magnetic stripe and smart card encoding (contact and contactless, including MIFARE, DESFire, HID Prox, iCLASS, and Seos) are also available, configured to order — speak with a specialist to build out your system.
Specialist ID is an authorized Entrust partner — your printer and supplies are fully backed by Entrust, including a 48-month printer warranty, a full year longer than the standard DS2, with in-region software support included.
Consumables
A complete list of compatible consumables for the Entrust Sigma DS2C. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| 525170-201 | IIDaaS YMCKT Ribbon + Cloud Software, 250 Prints |
| 525170-204 | IIDaaS YMCKT Ribbon + Cloud Software, 500 Prints |
| 525170-205 | IIDaaS YMCKT-KT Dual-Sided Ribbon + Cloud Software, 350 Prints |
| Part Number | Description |
|---|---|
| SPID-9630 | Specialist ID Blank White PVC Cards, CR-80 30mil |
| Part Number | Description |
|---|---|
| 531624-001 | Entrust Sigma Series Printer Cleaning Kit |
| 552141-002 | Entrust Isopropanol Cleaning Cards, 10 Pack |
| 507377-001 | Entrust Cleaning Swabs, 5 Pack |
Technical Specifications
- Print method
- Direct-to-card dye-sublimation / resin thermal transfer
- Print resolution
- 300 dpi (300 x 600 and 300 x 1200 for monochrome detail)
- Print sides
- Dual-sided (automatic front and back); supports rewritable cards
- Print speed
- Up to 225 full-color single-sided cards per hour; up to 140 full-color dual-sided cards per hour; up to 880 monochrome cards per hour
- Card input
- 125-card input hopper
- Card output
- 25-card output hopper
- Accepted cards
- ISO ID-1, CR-79, CR-80; 0.010 to 0.040 in (0.25–1.016 mm); glossy PVC, select key fobs, StickiCard adhesive-back, and rewritable cards
- Print ribbons
- Instant ID as a Service ribbons only — YMCKT 250 (525170-201), YMCKT 500 (525170-204), YMCKT-KT 350 dual-sided (525170-205); each includes the Entrust cloud issuance software license. Standard Entrust ribbons are not compatible
- Encoding options
- Optional ISO 7811 magnetic stripe (HiCo/LoCo, JIS Type II capable) and optional smart card encoding — contact ISO 7816 plus contactless ISO 14443 A/B, ISO 15693, MIFARE, MIFARE DESFire EV1/EV2, HID Prox, iCLASS, iCLASS SE, and Seos — configured to order through our specialists
- Lamination
- Compatible with the Sigma CLM inline lamination module (sold separately); print laminated credentials on composite PVC/PET cards
- Connectivity
- 10/100 Ethernet standard; optional Wi-Fi upgrade kit (dual-band 802.11g/n, WPA2)
- Web browser support
- Chrome (preferred), Edge, and Safari — issue credentials from any device with an internet connection
- Security
- Secure Boot, Trusted Platform Module (TPM) with Entrust-backed TLS certificate, TLS 1.2/1.3 encrypted connections per NIST SP 800-52 Rev. 2, RADIUS-enabled 802.1x network authentication support
- Software
- Entrust Instant ID as a Service — cloud issuance software license included with every IIDaaS ribbon; in-region software support included
- Issuance
- Physical cards plus digital mobile flashpass with every print
- Dimensions
- 17.4 in L x 8.9 in W x 9 in H (44.2 x 22.6 x 22.9 cm)
- Weight
- 11.3 lb (5.1 kg); varies with options
- Warranty
- 48 months printer; 36 months printhead
Compatible Supplies
Genuine Entrust ribbons and supplies matched to the Entrust Sigma DS2C.
