Professional credentials, printed at your desk
The Evolis Agilia is the latest generation of Evolis retransfer printing: true 600 dpi print quality with over-the-edge coverage on every card. Retransfer printing puts the image on a clear film first, then thermally bonds the film to the card, so smart cards, uneven surfaces, and non-PVC materials all come out with the same flawless finish. A 3.5-inch color touch screen runs the whole printer.
Contact and contactless encoding built in
This configuration includes the factory-installed HID OMNIKEY 5122 dual encoder. It personalizes contact smart cards and 13.56 MHz contactless credentials (ISO 14443 A/B, MIFARE, DESFire) inline with printing.
Retransfer quality, production handling
The Agilia prints up to 150 single-sided or 100 dual-sided cards per hour from a 200-card input hopper with low-level detection, plus a manual feeder. Ribbons and films identify themselves automatically, and the print head carries a lifetime warranty when cleaning intervals are respected with genuine Evolis High Trust supplies. Because retransfer printing applies heat, use composite PVC/PET cards: standard all-PVC cards can warp. The recommended composite cards are listed under Compatible Supplies.
Software included
Every Agilia ships with an ID-ALL Starter Edition license for designing and printing badges on Windows and macOS, plus Evolis Premium Suite 2 drivers and the Evolis Print Service mobile app. Upgrades to higher ID-ALL editions are sold separately.
Specialist ID is an authorized Evolis dealer. The Agilia carries a 3-year printer warranty and a lifetime print head warranty with genuine Evolis High Trust ribbons and films.
Consumables
A complete list of compatible consumables for the Evolis Agilia. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| RT4F101A100 | Evolis HighTrust YMCK Color Ribbon for the Agilia, 600 Prints |
| RT5F102A100 | Evolis HighTrust YMCK-K Color Ribbon for the Agilia, 600 Prints |
| RT5F103NAAA | Evolis HighTrust YMCKI Color Ribbon for the Agilia, 600 Prints |
| RT6F105NAAA | Evolis HighTrust YMCKKI Color Ribbon for the Agilia, 400 Prints |
| RTCT107NAAA | Evolis HighTrust Black Retransfer Ribbon for the Agilia, 2400 Prints |
| Part Number | Description and Yield |
|---|---|
| RTCL100NAAA | Evolis HighTrust Clear Retransfer Film for the Agilia, 1200 Prints |
| Part Number | Description |
|---|---|
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
| Part Number | Description |
|---|---|
| ACL013 | Evolis Regular Cleaning Kit for the Agilia, 5 Cards and 5 Swabs |
| ACL010 | Evolis Advanced Cleaning Kit for the Agilia, 2 T-Cards, 2 Swabs, and 2 Cards |
| ACL011 | Evolis T-Card Cleaning Kit for the Agilia, 10 T-Cards |
| ACL012 | Evolis Adhesive Card Cleaning Kit for the Agilia, 50 Cards |
| A5003 | Evolis HeadClean Kit for All Evolis Printers, 25 Swabs |
Technical Specifications
- Print method
- Retransfer (reverse transfer): dye-sublimation color onto a clear film, thermally bonded to the card
- Print resolution
- 600 x 600 dpi
- Print sides
- Dual-sided (front and back printed automatically)
- Print speed
- Up to 150 single-sided (YMCK) or 100 dual-sided (YMCK-K) cards per hour
- Card input
- 200-card input hopper with low-level detection; manual feeder
- Card output
- 100-card output hopper; 10-card reject hopper with full-box detection
- Accepted cards
- ISO CR-80; 0.76 to 1.25 mm (30 to 50 mil); PVC, COMPOSITE PVC (recommended), PET, polycarbonate, ABS
- Smart card encoding
- OMNIKEY 5122: contact + 13.56 MHz contactless

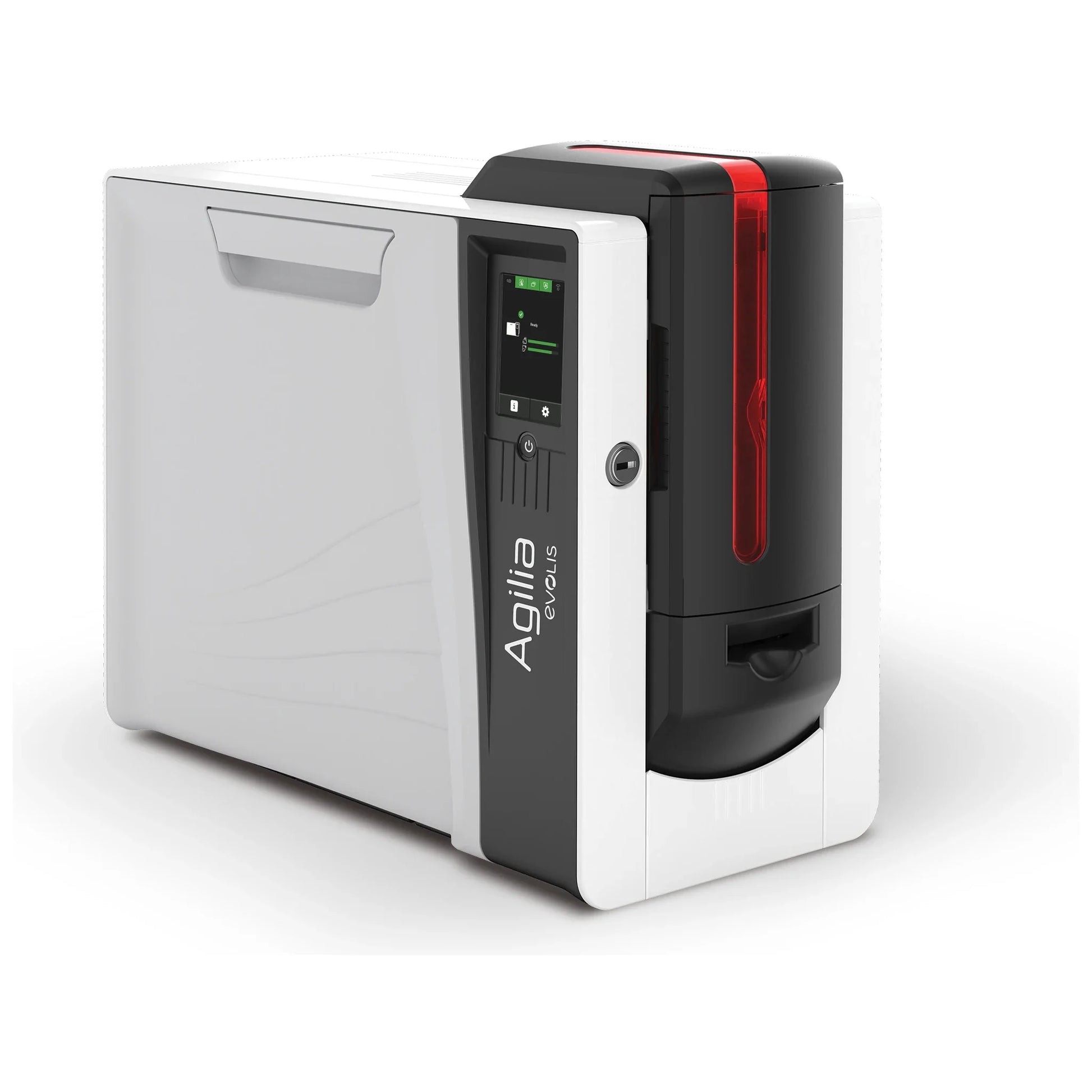

- Display
- 3.5 in (89 mm) color touch screen
- Connectivity
- USB 2.0 and 10/100 Ethernet
- Software
- ID-ALL Starter Edition license included (Windows and macOS); Evolis Premium Suite 2 drivers; Evolis Print Service mobile app; Evolis SDK
- Security
- Kensington lock support, Digital Erasing, data encryption for magnetic encoding
- Dimensions
- 14.7 in H x 21.2 in W x 8.1 in D with output hopper (373 x 538 x 205 mm)
- Weight
- 21.2 lb (9.6 kg)
- Warranty
- 3 years printer; lifetime print head (with Evolis High Trust supplies)
Compatible Supplies
Genuine Evolis ribbons and supplies matched to the Evolis Agilia.
