HID FARGO DTC1500 Dual-Sided ID Card Printer

HID FARGO DTC1500 Dual-Sided ID Card Printer

IN STOCK
Get a Quote
View full details
Overview

Professional credentials, printed at your desk

The HID FARGO DTC1500 is a direct-to-card ID card printer built for schools, government agencies, healthcare facilities, and growing businesses that need secure credentials at a low cost per card. This is the dual-sided base model, part number 051405 (also listed as 51405): it automatically prints the front and back of each card, ideal for adding barcodes, data, or instructions to the reverse. USB 2.0, Ethernet, and an internal print server are all standard, so it can serve a single desk or be shared across your network from day one.

It prints at 300 dpi, combining dye-sublimation color with resin thermal transfer for sharp black text and barcodes. A full-color card takes about 16 seconds, a dual-sided color card about 24, and a monochrome card about 6. High-capacity consumables are the DTC1500's signature: the standard YMCKO cartridge yields 700 prints per roll and the dual-sided YMCKOK yields 600, so ribbon changes are less frequent and each card costs less. The cleaning roller is built into the ribbon cartridge and is replaced automatically with every ribbon change.

Security comes standard on every unit. The custom watermark feature embeds your logo or text permanently into the card's overlay panel, an inexpensive way to make counterfeiting extremely difficult without holographic overlaminates. AES-256 encryption protects card data in transit, resin scramble renders used ribbon panels unreadable, and password protection locks down printer operation. The DTC1500 is modular, too: a lamination module or magnetic stripe and smart card encoding can be added as your card program grows.

Reference

Consumables

A complete list of compatible consumables for the HID FARGO DTC1500. Click any part number for details.

Part NumberDescription and Yield
045630 HID FARGO YMCKO Color Ribbon, 700 Prints
045631 HID FARGO YMCKOK Color Ribbon, 600 Prints

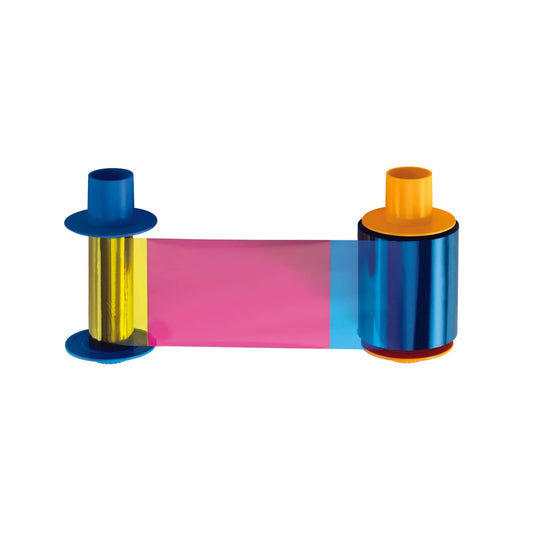

045633 HID FARGO YMCKO Half-Panel Ribbon, 1,000 Prints

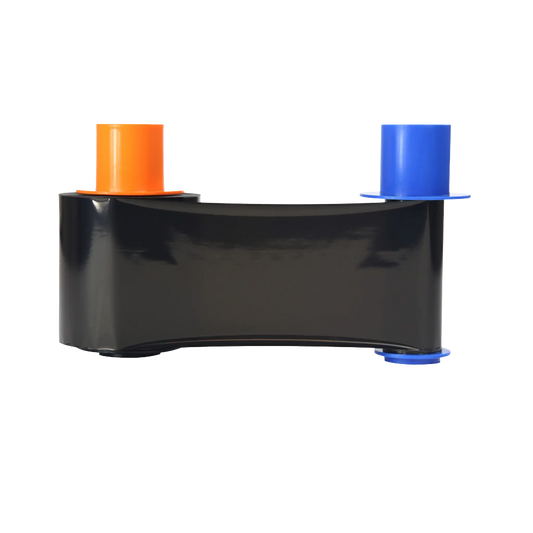

045616 HID FARGO Black Resin Ribbon, 3,000 Prints
045617 HID FARGO White Resin Ribbon, 2,000 Prints
045610 HID FARGO YMCKO Color Ribbon, 500 PrintsDiscontinued – limited stock

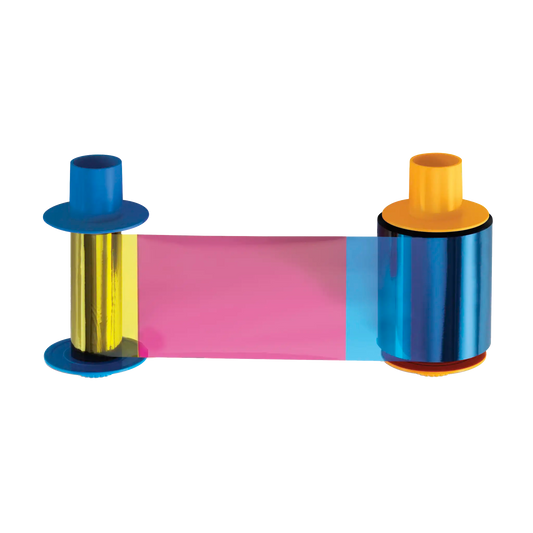

045611 HID FARGO YMCKOK Color Ribbon, 500 PrintsDiscontinued – limited stock
Part NumberDescription
SPID-9630 Specialist ID Blank White PVC Cards, CR-80 30mil
SPID-9790-WHITE Specialist ID HiCo Mag Stripe PVC Cards, CR-80 30mil
081754 HID FARGO UltraCard PVC, CR-80 30mil (500)
082266 HID FARGO UltraCard CR-80 Paper-Adhesive (500)
082267 HID FARGO UltraCard CR-80 Mylar-Adhesive (500)
081759 HID FARGO UltraCard CR-79 Paper-Adhesive (500)
081758 HID FARGO UltraCard CR-80 10mil PVC (1,000)
081751 HID FARGO UltraCard CR-80 HiCo Mag Stripe (500)
081750 HID FARGO UltraCard CR-80 LoCo Mag Stripe (500)
082136 HID FARGO UltraCard Premium Composite (500)
082137 HID FARGO UltraCard Composite HiCo Mag (500)
082279 HID FARGO UltraCard CR-79 Mylar-Adhesive (500)
Part NumberDescription
086177 HID FARGO DTC Cleaning Kit
082133 HID FARGO Alcohol Cleaning Cards (10-Pack)
086131 HID FARGO Cleaning Cards (50-Pack)
The detail

Technical Specifications

Print method
Dye sublimation / resin thermal transfer
Resolution
300 dpi (11.8 dots/mm) continuous tone
Colors
Up to 16.7 million / 256 shades per pixel
Print speed
16 sec/card full-color (YMCKO); 24 sec/card dual-sided (YMCKOK); 6 sec/card monochrome (K)
Printing capability
Automatic dual-sided printing
Ribbon options
YMCKO 700 prints; YMCKOK 600 prints; resin black (K) 3,000 prints; resin white (W) 2,000 prints
Accepted card sizes
CR-80; CR-79 adhesive back
Print area
CR-80 edge-to-edge
Accepted card thickness
9-40 mil
Accepted card types
PVC or polyester with polished PVC finish; 100% polyester (monochrome resin); rewritable cards
Input hopper
100 cards (30 mil)
Output hopper
Up to 100 cards (30 mil)
Card cleaning
Cleaning roller integrated into ribbon cartridge; replaced with each ribbon change
Memory
32 MB RAM
Connectivity
USB 2.0; Ethernet with internal print server
Security
Custom watermark overlay; AES-256 encryption; resin scramble data protection; password protection
Software
FARGO Workbench diagnostic utility with Color Assist spot-color matching
Software drivers
Windows 10 / 11 / Server 2012 / 2016 / 2019 / 2022; Linux
Operating temperature
65 to 80 F (18 to 27 C)
Humidity
20-80% non-condensing
Dimensions
9.8 in H x 18.7 in W x 9.2 in D
Weight
11 lbs
Supply voltage
100-240 VAC, 50-60 Hz
Warranty
3-year printer and printhead (unlimited passes with UltraCard)
Stock up

Compatible Supplies

Genuine HID Fargo ribbons and supplies matched to the DTC1500.

Downloads

Documents & Resources

Questions & answers

Frequently asked questions

Can the DTC1500 print on both sides of a card?
Yes. It comes in single-sided and dual-sided versions, and the dual-sided models print the front and back automatically. If you start single-sided, dual-side printing can be activated later in the field with a simple RFID upgrade tag. Use the selector above to choose your configuration.
What makes the DTC1500 more secure than other entry-level card printers?
Every unit includes a custom watermark feature that embeds your logo or text permanently into the card's overlay panel, which makes duplication extremely difficult without the cost of holographic overlaminates. It also has AES-256 data encryption, resin scramble protection that renders used ribbon panels unreadable, and password-protected printer operation.
What ribbon does the DTC1500 use, and how many cards does a ribbon print?
It uses HID FARGO high-capacity ribbon cartridges with a built-in cleaning roller that is replaced with every ribbon change. The full-color YMCKO ribbon prints 700 cards, the dual-sided YMCKOK 600, resin black 3,000, and resin white 2,000. Every compatible ribbon is listed above.
What size and type of cards does it use?
It prints on standard CR-80 cards (credit-card size) and CR-79 adhesive-back cards, 9 to 40 mil thick, in PVC or polyester with a polished PVC finish. It also supports rewritable cards. For the lamination configurations, HID recommends composite cards rather than standard PVC.
How fast is it?
It prints a monochrome card in about 6 seconds, a full-color card in about 16 seconds, and a dual-sided color card in about 24 seconds.
Can it laminate cards?
Yes, on the configurations that include the single-side lamination module (use the selector above). The module applies clear or holographic overlaminates, listed in the Laminates tab above, for cards that need extra durability and tamper resistance.
Can it encode magnetic stripe or smart cards?
Yes, depending on the configuration you select above. Options include an ISO magnetic stripe encoder and an OMNIKEY 5122 encoder for iCLASS, MIFARE, and DESFire contactless credentials plus contact smart cards. Encoding happens inline as the card prints.
Can I connect it to my network?
Yes. Ethernet with an internal print server comes standard on every DTC1500 configuration, alongside USB 2.0, so multiple workstations can share the printer for centralized or remote card issuance.
What drivers are available?
HID provides Windows drivers (Windows 10 and 11, plus Server 2012 through 2022), a Linux driver, and firmware updates. Current versions are in the Drivers section higher up on this page. The printer also works with HID's FARGO Workbench diagnostic utility with Color Assist spot-color matching.
Is the DTC1500 compatible with Mac?
No. HID confirms there is no macOS driver for the DTC1500, so it is not compatible with Mac computers. It runs on Windows (10 and 11, plus Server 2012 through 2022) and Linux.
What warranty does it include, and is Specialist ID an authorized dealer?
The DTC1500 carries a three-year warranty on the printer and printhead, with unlimited printhead card passes when you use HID UltraCard stock. Specialist ID is an authorized HID FARGO reseller, so your printer, supplies, and warranty are backed by HID.
