Description

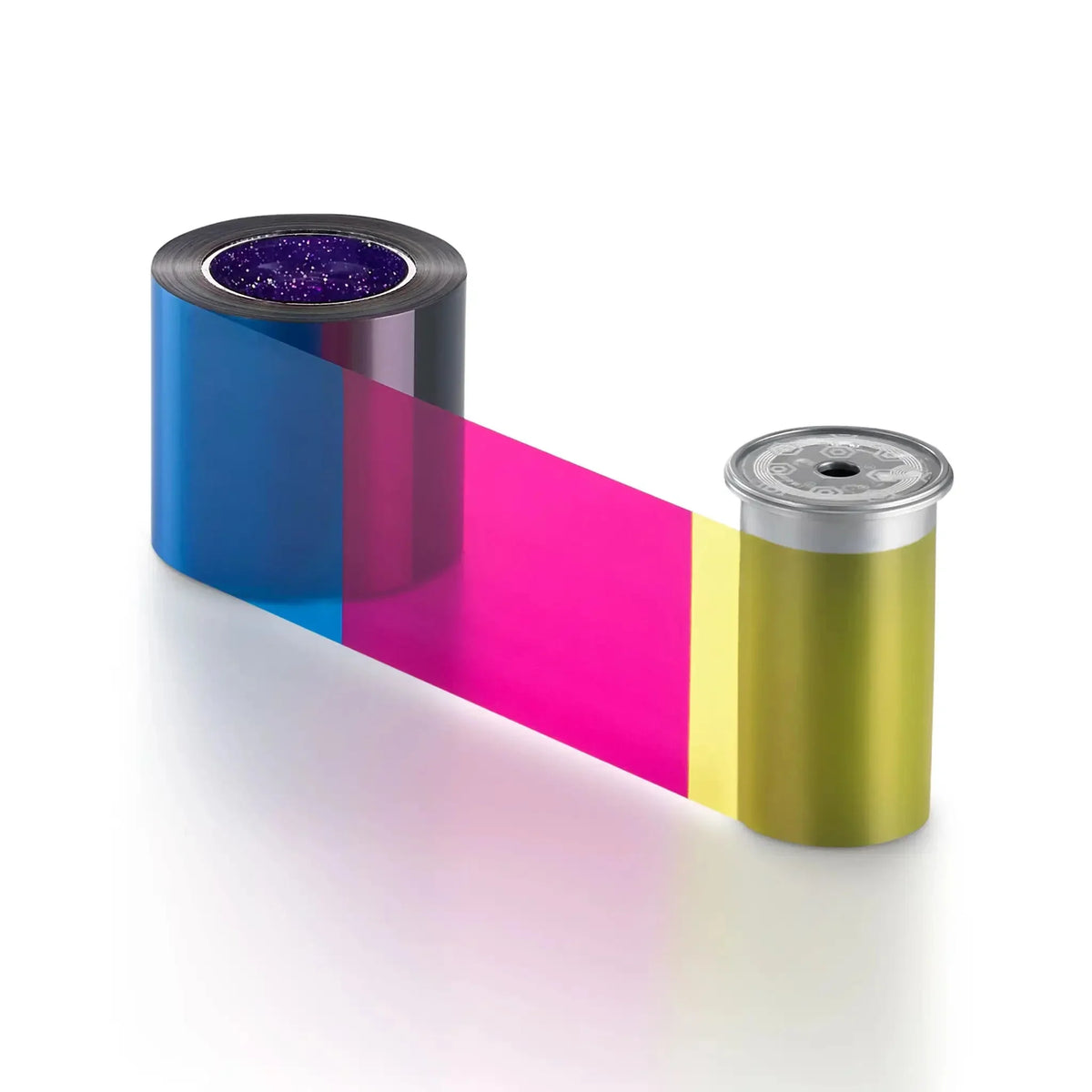

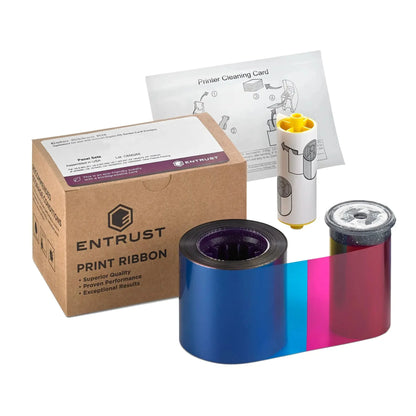

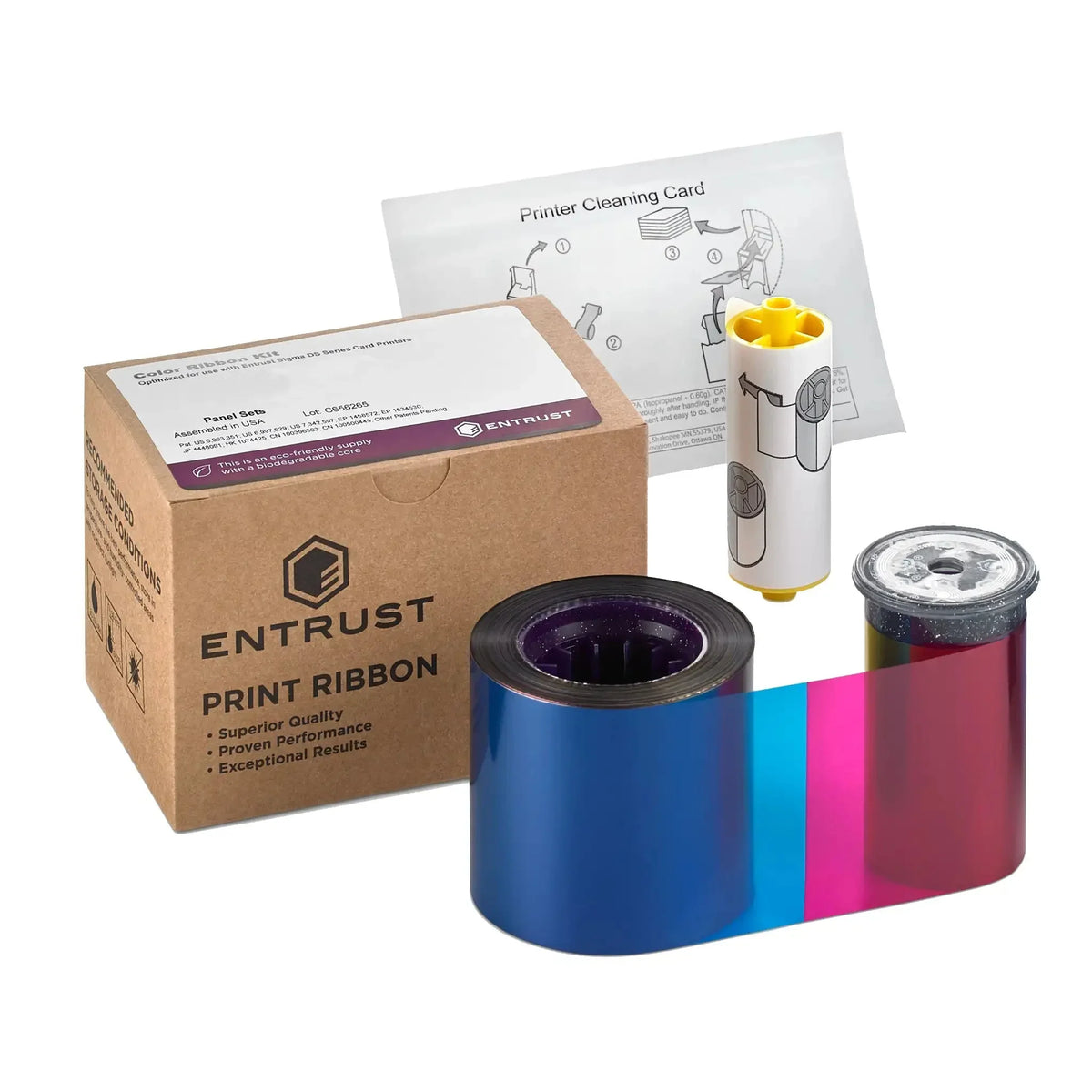

The Entrust 534700-001-R010 is a YMCKT regional color ribbon kit. Yellow, magenta and cyan panels print full-color images, a black resin K panel prints text and readable barcodes, and a clear T topcoat panel protects the finished card. Each roll prints 250 cards. It fits the Entrust SD260, SD360 and SD460 card printers.
This is the regional replacement for the legacy 534000-002 YMCKT ribbon kit, and it costs less per roll than the part it replaces.
About regional ribbons
The first time a regional ribbon is loaded, the printer is permanently set to regional supplies. After that the legacy non-regional YMCKT, ymcKT and YMCKT-KT ribbons can no longer be used in that printer and will display Supply region not valid 224. Entrust's guidance is to use up any legacy color ribbon stock before loading the first regional ribbon. A printer that has already been switched shows its region code to the right of the model number on the LCD.
Printer firmware must be at D2.15.3xx or higher, or D3.16.3xx or higher. Printers shipped since August 2016 already include it. A regional ribbon loaded into a printer with older firmware displays Print ribbon not supported 119.
Specifications
- Part number: 534700-001-R010
- Type: YMCKT regional color ribbon kit
- Panel configuration: Yellow, magenta and cyan for full color, a black resin panel for text and barcodes, and a clear topcoat
- Rated yield: 250 cards per roll
- Compatible printers: Entrust SD260, SD360, SD460
- Replaces: Legacy part 534000-002
