Professional credentials, printed at your desk
The Evolis Avansia is a dual-sided retransfer ID card printer built for high-security, high-volume card programs. It prints at a true 600 dpi with over-the-edge coverage: the image goes onto a clear transfer film first, then the film is thermally bonded to the card, so chips, uneven surfaces, and non-PVC materials all come out with a flawless, durable finish.
Contact and contactless encoding built in
This configuration includes the factory-installed Evolis Elyctis Dual encoder (IDENTIV chipset). One unit personalizes both contact smart cards (PC/SC, EMV 2000-1) and 13.56 MHz contactless credentials, including ISO 14443 A and B, ISO 15693, MIFARE, and DESFire.
Built for secure issuance

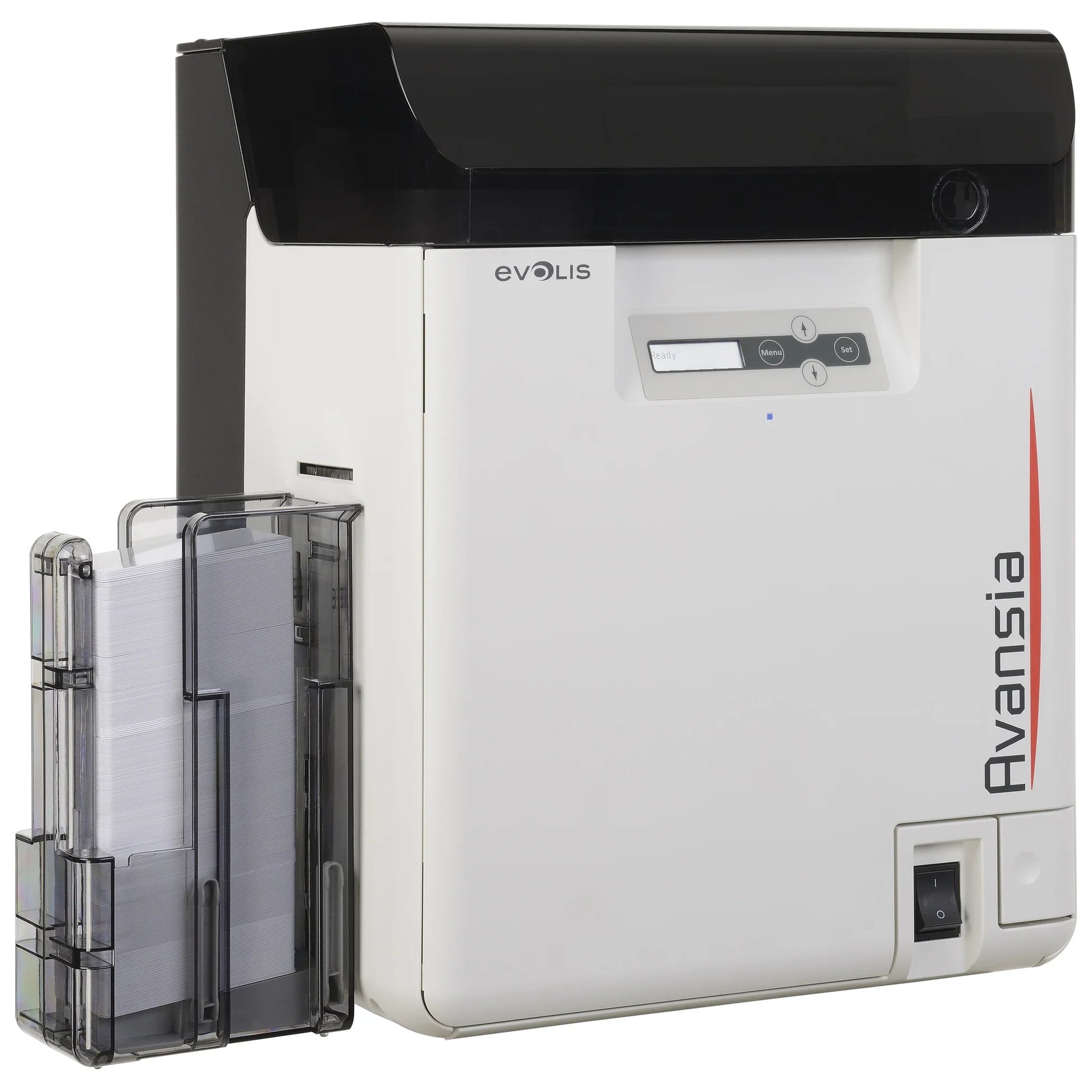

The Avansia feeds from a 250-card hopper into a 250-card output stacker, prints up to 144 single-sided or 96 dual-sided cards per hour, and holds cards for two-sided printing without operator handling. An RFID locking key controls ribbon authentication, and a mechanical locking system is available. Because retransfer printing applies heat, use composite PVC/PET cards: standard all-PVC cards can warp. The recommended composite cards are listed under Compatible Supplies.
Software included
Every Avansia ships with a CardPresso XXS software license for badge design and printing, plus Windows drivers. Evolis High Trust ribbons for the Avansia ship with an electronic key that must be installed in the printer; without the key, the Avansia will not print.
Specialist ID is an authorized Evolis dealer. The Avansia carries a 3-year printer warranty and a lifetime print head warranty with genuine Evolis High Trust ribbons and films.
Consumables
A complete list of compatible consumables for the Evolis Avansia. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| RT4F010AAA | Evolis HighTrust YMCK Color Ribbon for the Avansia, 500 Prints |
| RT5F011AAA | Evolis HighTrust YMCKK Color Ribbon for the Avansia, 400 Prints |
| RT5F012NAA | Evolis HighTrust YMCKI Color Ribbon for the Avansia, 400 Prints |
| RT5F013NAA | Evolis HighTrust YMCKH Color Ribbon for the Avansia, 400 Prints |
| RT5F014NAA | Evolis HighTrust YMCFK Color Ribbon for the Avansia, 400 Prints |
| Part Number | Description and Yield |
|---|---|
| RTCL009NAA | Evolis HighTrust Clear Retransfer Film for the Avansia, 500 Prints |
| Part Number | Description |
|---|---|
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
Technical Specifications
- Print method
- Retransfer (reverse transfer): dye-sublimation color onto a clear film, thermally bonded to the card
- Print resolution
- 600 dpi print head (23.6 dots/mm)
- Print sides
- Dual-sided standard (front and back printed automatically)
- Print speed
- Up to 144 single-sided (YMCK) or 96 dual-sided (YMCKK) cards per hour
- Card input

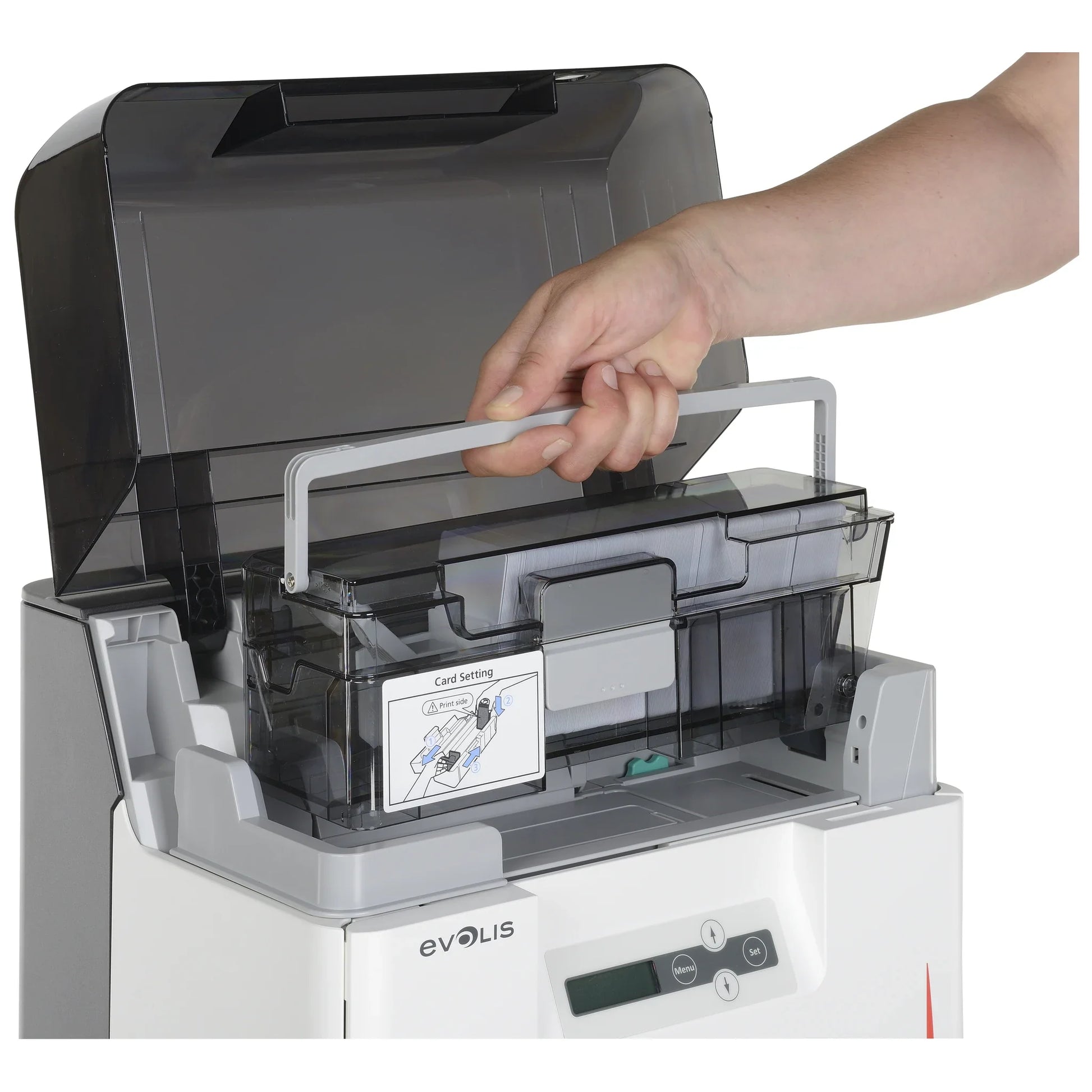

- 250-card feeder (30 mil)
- Card output
- 250-card output hopper; 30-card reject tray with encoding options
- Accepted cards
- ISO CR-80; 0.76 mm (30 mil); PVC, COMPOSITE PVC (recommended), PET-F, PET-G, polycarbonate, ABS
- Smart card encoding
- Evolis Elyctis Dual (IDENTIV): contact + 13.56 MHz contactless (ISO 14443 A/B, ISO 15693, MIFARE, DESFire)
- Display

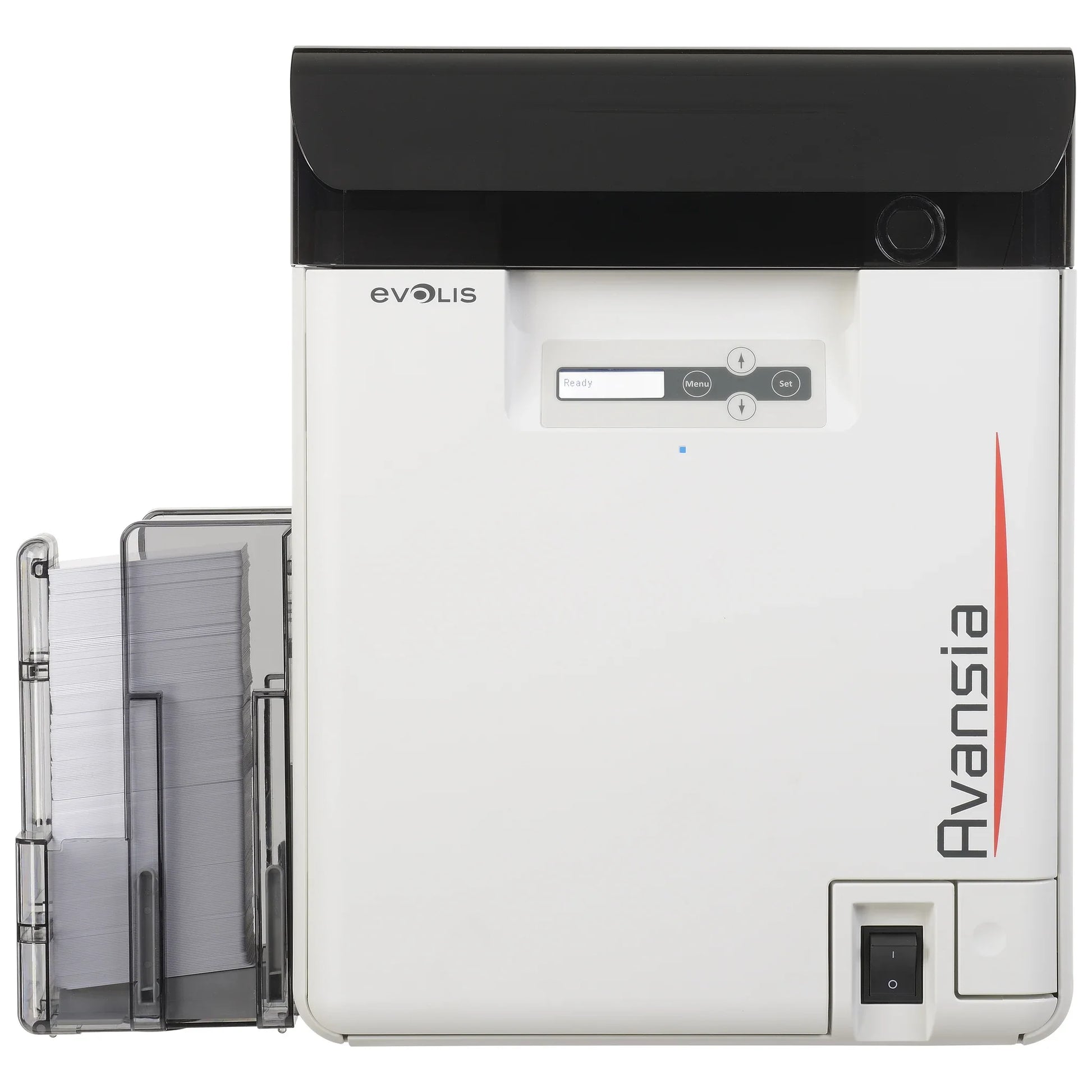

- 2-line LCD with status LED
- Connectivity
- USB 2.0 and 10/100 Ethernet
- Software
- CardPresso XXS license included; Windows drivers; Evolis SDK
- Security
- RFID ribbon locking key, Kensington lock support, optional mechanical lock
- Dimensions
- 17.16 in H x 13.38 in W x 11.69 in D (436 x 340 x 297 mm)
- Weight
- 44.09 lb (20 kg)
- Warranty
- 3 years printer; lifetime print head (with Evolis High Trust supplies)
Compatible Supplies
Genuine Evolis ribbons and supplies matched to the Evolis Avansia.
