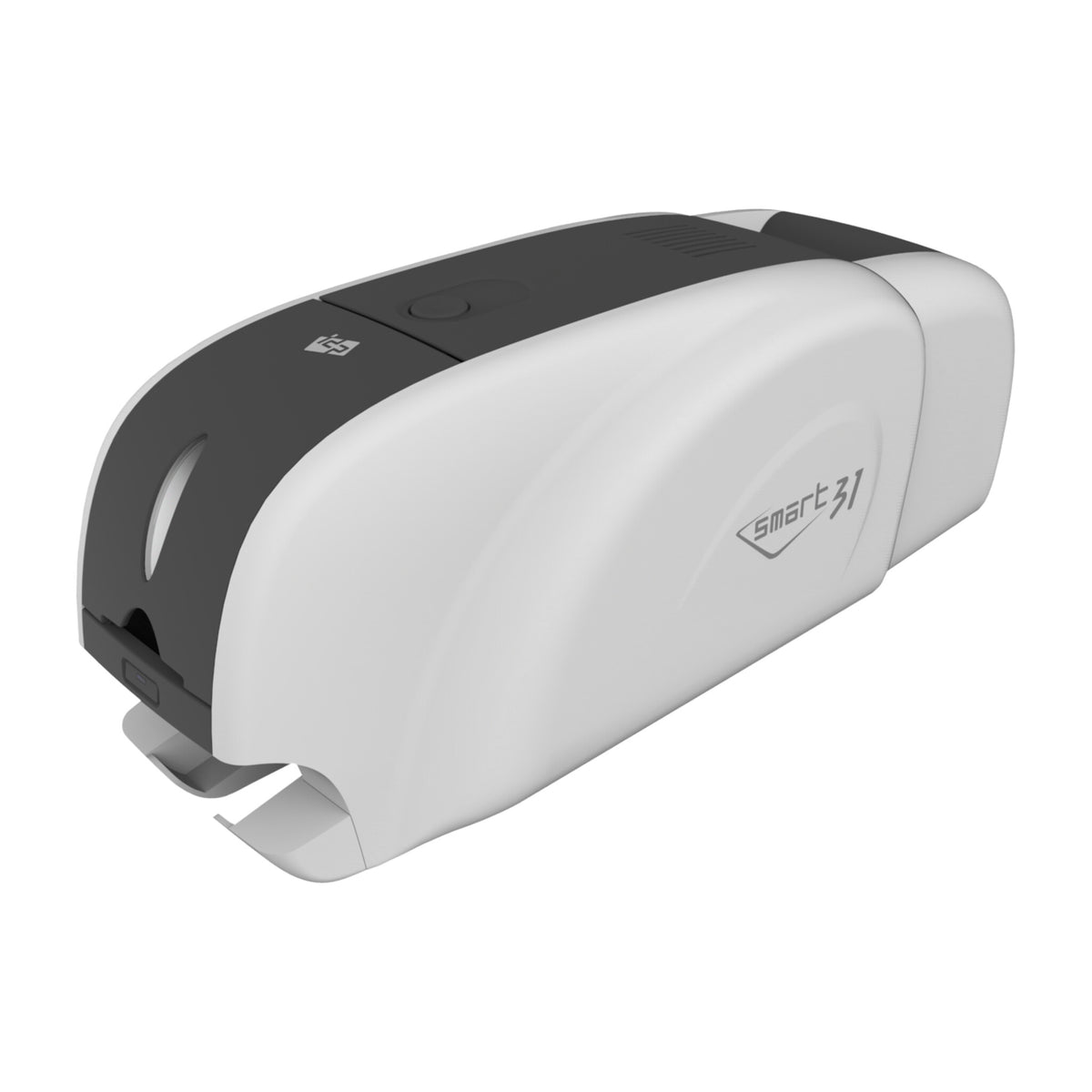

• IDP SMART-31D with Ethernet dual-sided ID card printer from the front left, with the flipper section at the rear of the white shell

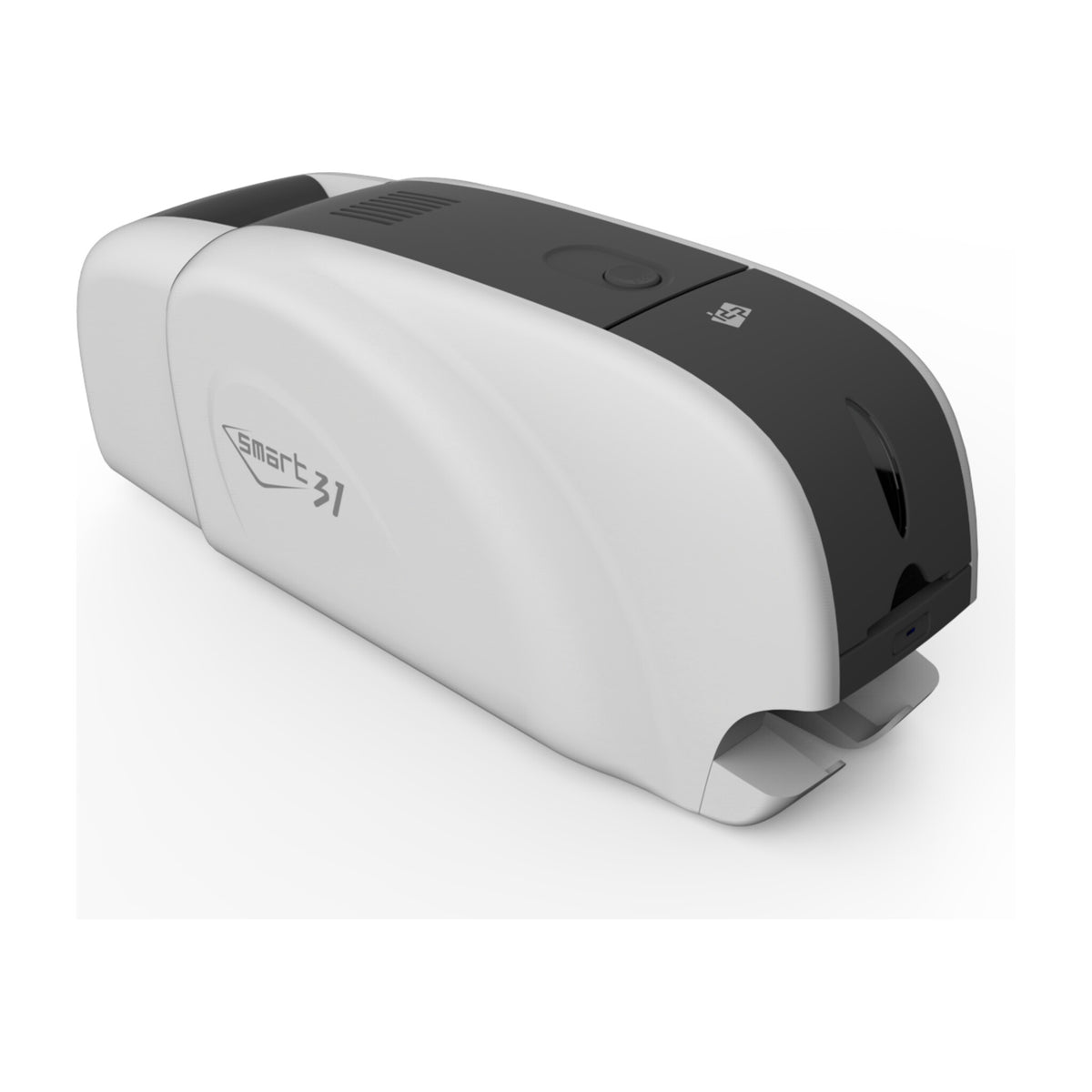

  • SMART-31D from the rear left, showing the separate flipper module that turns the card for dual-sided printing

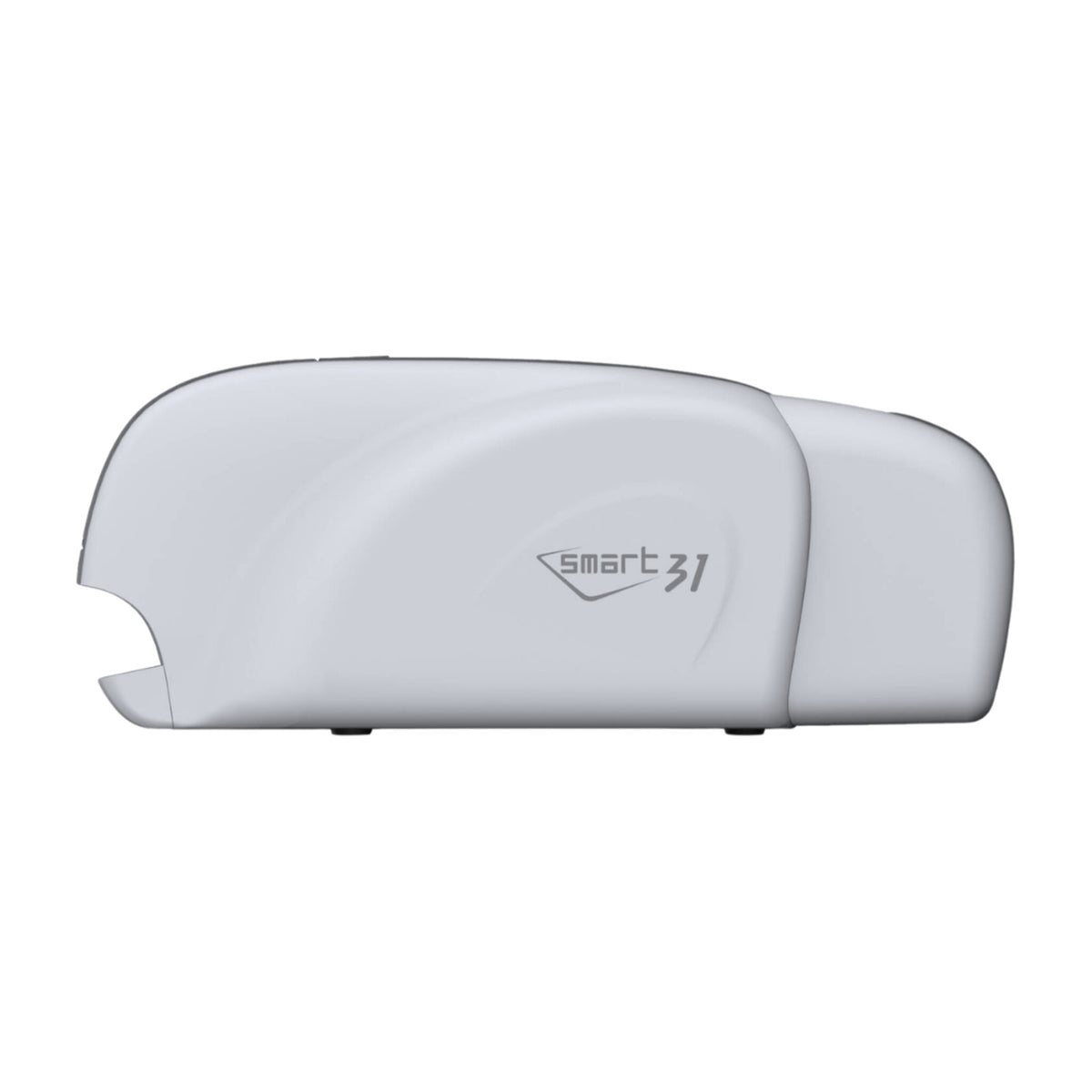

  • Side profile of the SMART-31D with its longer body and rear flipper section

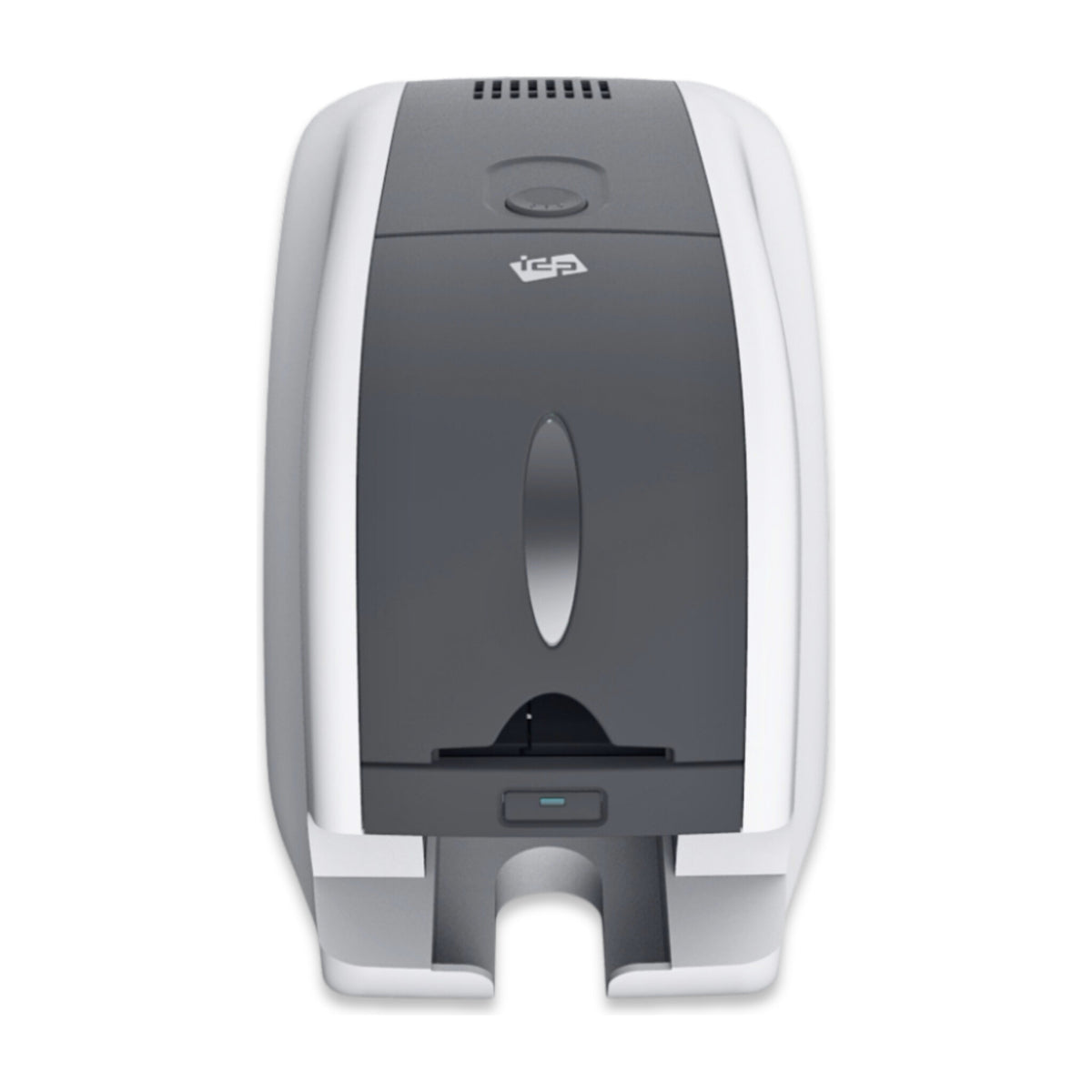

  • SMART-31 straight-on front view with the card input hopper on top, LED button and card output tray below
1 4

IDP SMART-31D Dual-Sided ID Card Printer with Ethernet

IDP SMART-31D Dual-Sided ID Card Printer with Ethernet

IN STOCK
Get a Quote
View full details
Overview

Professional credentials, printed at your desk

The IDP SMART-31D prints both sides of an ID card in one pass. A built-in flipper turns each card, so you can put a photo and name on the front and a barcode, terms or emergency contacts on the back. It suits small offices, schools and member programs that want two-sided cards from a compact desktop printer.

It prints edge to edge at 300 dpi from an 80-card automatic hopper (40 with its cover closed): up to 180 single-sided color cards per hour, or 138 dual-sided cards per hour with a YMCKOK ribbon (color front, black back). Genuine IDP ribbons carry an RFID tag the printer reads to recognize the ribbon type, and the same ribbons fit the SMART-51. A YMCFKO ribbon adds an invisible UV image for low-cost security, and passwords, PC authentication and encrypted print data protect the printer. The Ethernet module prints and encodes over your network and can accept print commands without a driver.

This is the print-only configuration with USB and Ethernet. To encode cards, add a magnetic stripe, contact or contactless smart card encoder from the upgrades in the buy box. IDP's SMART IDesigner card design software is included free (Windows, download). If you design on a Mac or print from a bigger database, ID-ALL is the step up; it supports IDP SMART printers on Windows and Mac.

Reference

Consumables

A complete list of compatible consumables for the IDP SMART-31. Click any part number for details.

Part NumberDescription and Yield
659366 IDP YMCKO Ribbon, 250 Prints
900900 IDP YMCKO Ribbon Cassette, 250 Prints
659863 IDP YMCKO Ribbon, 100 Prints
659376 IDP YMCKOK Ribbon, 200 Prints
900902 IDP YMCKOK Ribbon Cassette, 200 Prints
900903 IDP YMCKO Ribbon Cassette, 100 Prints
659378 IDP ymcKO Half-Panel Ribbon, 350 Prints
659380 IDP YMCFKO UV Ribbon, 200 Prints
653307 IDP YMCPKO Pearlescent Ribbon, 200 Prints
659367 IDP Black Ribbon, 1,200 Prints
900901 IDP Black Ribbon Cassette, 1,200 Prints
659385 IDP KO Ribbon, 600 Prints
659389 IDP BO Ribbon, 600 Prints
659370 IDP White Ribbon, 1,200 Prints
659371 IDP Red Ribbon, 1,200 Prints
659372 IDP Blue Ribbon, 1,200 Prints
659373 IDP Metallic Silver Ribbon, 1,200 Prints
659374 IDP Metallic Gold Ribbon, 1,200 Prints
659375 IDP Scratch-Off Ribbon, 1,200 Prints
Part NumberDescription
SPID-9630 Specialist ID Blank White PVC Cards, CR-80 30mil
SPID-9790-WHITE Specialist ID HiCo Mag Stripe PVC Cards, CR-80 30mil
SPID-8670-WHITE Specialist ID Composite PVC/PET Cards, CR-80 30mil
CR8030COMP Composite PVC/PET Blank Cards, CR-80 30mil
SPIDPROX HID Compatible Prox Cards
SPIDprox26H Prox Cards With Magnetic Stripe
COM/D41 MIFARE DESFire EV1 4K Cards
Part NumberDescription
659909 IDP Long Cleaning Cards, 10 Pack
659005 IDP Cleaning Rollers, 10 Pack
659006-II IDP IPA Cleaning Swabs, 10 Pack
659007-II IDP Print Head Cleaning Pens, 12 Pack
619425 IDP Orange Cleaning Roller
The detail

Technical Specifications

Print method
Dye-sublimation direct-to-card
Print sides
Dual-sided (built-in flipper)
Resolution
300 dpi color and monochrome; 600 and 1200 dpi monochrome only
Print area
Edge to edge
Print speed, color single-sided (YMCKO)
Up to 180 cards per hour (max. 20 seconds per card)
Print speed, dual-sided (YMCKOK)
Up to 138 cards per hour (max. 26 seconds per card)
Print speed, monochrome
Up to 720 cards per hour (5 seconds per card)
Card capacity
80-card input hopper (cover open; 40 with it closed), 25-card output hopper
Card size
ISO CR80 (2.12 x 3.38 in)
Card thickness
15 to 30 mil (0.38 to 0.76 mm)
Card types
PVC, PVC/PET composite
Ribbon capacity
YMCKOK 200 prints; YMCKO 250 prints (about 125 cards printed full color on both sides; split-panel setting for color front, black back); monochrome 1,200 prints
Ribbon recognition
RFID tag on genuine IDP ribbons
Encoding
None (print only; magnetic stripe, contact and contactless encoders available as upgrades)
Connectivity
USB and Ethernet (SNMPv3)
Security
Administrator and user passwords, PC authentication lock, data encryption over USB and SSL over Ethernet
Control panel
1 LED button
Memory
64 MB RAM
Operating systems
Windows 10 and 11 (64-bit), macOS 11 and later, Linux
Power
24 V DC adapter, 48 W
Operating environment
59 to 95 F (15 to 35 C), 35 to 70% humidity
Dimensions
6.8 x 18.6 x 7.5 in (W x L x H); 172 x 472 x 190 mm
Weight
9.5 lb (4.2 kg)
Certifications
CB, CE, FCC, KC
Software
SMART IDesigner included (Windows)
Warranty
IDP 3-year Advanced Exchange (optional 4th-year and 4th-and-5th-year extensions)
Stock up

Compatible Supplies

Genuine IDP ribbons and supplies matched to the SMART-31.

IDP 659366 YMCKO color ribbon roll showing cyan, magenta and yellow panels, with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659366 YMCKO Color Ribbon for SMART-31 and SMART-51, 250 Prints

IDP 659366 YMCKO Color Ribbon for SMART-31 and SMART-51, 250 Prints

#659366
$106.11 $74.27
IDP 900900 ribbon kit: ribbon cassette in its wrapper resting on the IDP Ribbon Kit box, which lists ribbon, cartridge and cleaning roller

IDP 900900 YMCKO Color Ribbon in Cassette for SMART-31 and SMART-51, 250 Prints

IDP 900900 YMCKO Color Ribbon in Cassette for SMART-31 and SMART-51, 250 Prints

#900900
$137.43 $96.20
IDP 659863 YMCKO color ribbon roll showing cyan, magenta and yellow panels, with its disposable cleaning roller

IDP 659863 YMCKO Color Ribbon for SMART-31 and SMART-51, 100 Prints

IDP 659863 YMCKO Color Ribbon for SMART-31 and SMART-51, 100 Prints

#659863
$74.62 $52.24
IDP 659376 YMCKOK ribbon roll showing magenta, yellow and black panels, with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659376 YMCKOK Dual-Sided Color Ribbon for SMART-31 and SMART-51, 200 Prints

IDP 659376 YMCKOK Dual-Sided Color Ribbon for SMART-31 and SMART-51, 200 Prints

#659376
$113.10 $79.17
IDP 900902 ribbon kit: ribbon cassette in its wrapper resting on the IDP Ribbon Kit box, which lists ribbon, cartridge and cleaning roller

IDP 900902 YMCKOK Dual-Sided Color Ribbon in Cassette for SMART-31 and SMART-51, 200 Prints

IDP 900902 YMCKOK Dual-Sided Color Ribbon in Cassette for SMART-31 and SMART-51, 200 Prints

#900902
$144.42 $101.10
IDP 900903 ribbon kit: ribbon cassette in its wrapper resting on the IDP Ribbon Kit box, which lists ribbon, cartridge and cleaning roller

IDP 900903 YMCKO Color Ribbon in Cassette for SMART-31 and SMART-51, 100 Prints

IDP 900903 YMCKO Color Ribbon in Cassette for SMART-31 and SMART-51, 100 Prints

#900903
$105.94 $74.16
IDP 659378 ymcKO half-panel ribbon roll with short cyan, magenta and yellow panels, its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659378 ymcKO Half-Panel Color Ribbon for SMART-31 and SMART-51, 350 Prints

IDP 659378 ymcKO Half-Panel Color Ribbon for SMART-31 and SMART-51, 350 Prints

#659378
$103.77 $72.64
IDP 659380 YMCFKO ribbon roll with the clear fluorescent and overlay film exposed, its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659380 YMCFKO UV Color Ribbon for SMART-31 and SMART-51, 200 Prints

IDP 659380 YMCFKO UV Color Ribbon for SMART-31 and SMART-51, 200 Prints

#659380
$131.76 $92.23
IDP 653307 YMCPKO pearlescent ribbon roll with silver-toned film and a cyan panel, its cleaning roller and IDP Ribbon Kit box marked SMART-51 and SMART-31 only

IDP 653307 YMCPKO Pearlescent Color Ribbon for SMART-31 and SMART-51, 200 Prints

IDP 653307 YMCPKO Pearlescent Color Ribbon for SMART-31 and SMART-51, 200 Prints

#653307
$179.56 $125.69
IDP 659367 K black resin ribbon roll with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659367 K Black Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

IDP 659367 K Black Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

#659367
$36.15 $25.30
IDP 900901 ribbon kit: ribbon cassette in its wrapper resting on the IDP Ribbon Kit box, which lists ribbon, cartridge and cleaning roller

IDP 900901 K Black Resin Monochrome Ribbon in Cassette for SMART-31 and SMART-51, 1,200 Prints

IDP 900901 K Black Resin Monochrome Ribbon in Cassette for SMART-31 and SMART-51, 1,200 Prints

#900901
$67.47 $47.23
IDP 659385 KO ribbon roll showing a black panel followed by clear overlay film, with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659385 KO Black Resin and Overlay Ribbon for SMART-31 and SMART-51, 600 Prints

IDP 659385 KO Black Resin and Overlay Ribbon for SMART-31 and SMART-51, 600 Prints

#659385
$90.95 $63.66
IDP logo (product photo coming soon)

IDP 659389 BO Black and Overlay Monochrome Ribbon for SMART-31 and SMART-51, 600 Prints

IDP 659389 BO Black and Overlay Monochrome Ribbon for SMART-31 and SMART-51, 600 Prints

#659389
$106.11 $74.27
IDP 659370 W white resin ribbon roll with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659370 W White Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

IDP 659370 W White Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

#659370
$86.28 $60.40
IDP 659371 R red resin ribbon roll with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659371 R Red Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

IDP 659371 R Red Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

#659371
$86.28 $60.40
IDP 659372 B blue resin ribbon roll with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659372 B Blue Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

IDP 659372 B Blue Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

#659372
$86.28 $60.40
IDP 659373 MS metallic silver resin ribbon roll with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659373 MS Metallic Silver Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

IDP 659373 MS Metallic Silver Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

#659373
$137.59 $96.31
IDP 659374 MG metallic gold resin ribbon roll with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659374 MG Metallic Gold Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

IDP 659374 MG Metallic Gold Resin Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

#659374
$132.92 $93.05
IDP 659375 SO scratch-off ribbon roll with its disposable cleaning roller and SMART-31 and SMART-51 ribbon box

IDP 659375 SO Scratch-Off Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

IDP 659375 SO Scratch-Off Monochrome Ribbon for SMART-31 and SMART-51, 1,200 Prints

#659375
$92.11 $64.48
Blank white CR80 30 mil PVC ID cards fanned out on white background

Blank White PVC Cards for ID Badge Printers - CR80 30 Mil (SPID-9630) Color Options

Blank White PVC Cards for ID Badge Printers - CR80 30 Mil (SPID-9630) Color Options

#SPID-9630
From $15.99
From $15.99
Ten IDP long cleaning cards in their sealed sleeves, fanned out to show the IDP branding

IDP 659909 Long Cleaning Card Kit for SMART Card Printers, 10 Cards

IDP 659909 Long Cleaning Card Kit for SMART Card Printers, 10 Cards

#659909
$52.47Add to Cart for Price
A stack of blank white plastic cards made of high-quality PVC, with one Standard CR80 30mil Card w/ HiCo Mag Stripe in front featuring the logo and name of "Specialist ID Inc.

Standard CR80 30mil Cards w/ HiCo Mag Stripe

Standard CR80 30mil Cards w/ HiCo Mag Stripe

#SPID-9790-WHITE
From $19.99
From $19.99
One IDP 659005 disposable cleaning roller, black with an arrow label showing the loading direction

IDP 659005 Cleaning Roller Kit for the SMART-31 and SMART-51, 10 Rollers

IDP 659005 Cleaning Roller Kit for the SMART-31 and SMART-51, 10 Rollers

#659005
$69.96 $48.97
Stack of blank white CR80 composite PVC/PET ID cards

Blank Composite Cards for Retransfer ID Printers - CR80 30 Mil PET PVC Blend Compatible with Magicard Prima 4 Prima 8 and Fargo HDP Printers

Blank Composite Cards for Retransfer ID Printers - CR80 30 Mil PET PVC Blend Compatible with Magicard Prima 4 Prima 8 and Fargo HDP Printers

#SPID-8670-WHITE
From $29.99
From $29.99
Pile of IDP presaturated cleaning swabs with white foam tips and clear handles

IDP 659006-II IPA Cleaning Swabs for Card Printers, 10 Swabs

IDP 659006-II IPA Cleaning Swabs for Card Printers, 10 Swabs

#659006-II
$34.98 $24.49
A fanned-out stack of five blank cards from the 500 Pack - Standard CR80 30mil Composite PVC/Poly Cards, ideal for company ID and security systems, is displayed on a white background. Sold by Specialist ID.

500 Pack – Professional CR80 30 mil Composite PVC/PET Cards (Compatible with Most Printers)

500 Pack – Professional CR80 30 mil Composite PVC/PET Cards (Compatible with Most Printers)

#CR8030COMP
$126.00
$126.00
Two thermal printer cleaning pens, one uncapped, in front of the Cleaning Pen box

IDP 659007-II IPA Print Head Cleaning Pens, 12 Pens

IDP 659007-II IPA Print Head Cleaning Pens, 12 Pens

#659007-II
$53.64 $37.55
A blank white rectangular card with the small text "SPIDprox HID Compatible ISO Prox Cards" in the lower left corner and the number "00001" in the lower right corner, designed for access control systems.

SPIDprox HID Compatible ISO Prox Cards

SPIDprox HID Compatible ISO Prox Cards

#SPIDPROX
$4.58
$4.58
IDP logo (product photo coming soon)

IDP 619425 Orange Cleaning Roller for the SMART-31 and SMART-51

IDP 619425 Orange Cleaning Roller for the SMART-31 and SMART-51

#619425
$46.64 $32.65
A white identification card featuring a HiCo magnetic stripe and the number "00001" printed at the bottom right. Text "SPIDproxH HID Compatible ISO Prox Cards With Magnetic Stripe" is visible at the bottom left, indicating HID compatible ISO prox card technology.

SPIDproxH HID Compatible ISO Prox Cards With Magnetic Stripe

SPIDproxH HID Compatible ISO Prox Cards With Magnetic Stripe

#SPIDprox26H
$4.68
$4.68
A MIFARE® DESFire® EV1 4K card, made of PET+PVC composite and featuring a sleek CR-80 design, stands against a white background, reminiscent of the streamlined look of an ID card printer used for secure applications.

MIFARE® DESFire® EV1 4K Cards CR-80, PET+PVC Composite

MIFARE® DESFire® EV1 4K Cards CR-80, PET+PVC Composite

#COM/D41
$2.79
$2.99 $2.79
Downloads

Documents & Resources

Documents
Drivers
Questions & answers

Frequently asked questions

What ribbons does the SMART-31 use?
Genuine IDP SMART-31/51 ribbons. The printer reads an RFID tag on each ribbon to recognize it, so it needs IDP ribbons. The everyday choice is the 659366 YMCKO color ribbon (250 prints) or 659863 (100 prints); dual-sided models also take the 659376 YMCKOK ribbon (200 prints) for color on the front and black on the back. Monochrome, UV, pearlescent and half-panel ribbons are listed under Compatible Supplies. SMART-21 and SMART-30 ribbons do not fit.
What is the difference between the 9009xx ribbon kits and the regular ribbons?
The 9009xx parts (900900, 900901, 900903, and 900902 for dual-sided) come pre-loaded in a cassette, ready to drop in. The regular 6593xx ribbons load into the reusable cassette that stays in the printer. The printing is the same.
What cards does it print on?
Standard ISO CR80 cards (2.12 x 3.38 in), 15 to 30 mil thick, in PVC or PVC/PET composite. The input hopper holds 80 cards and the output tray 25. Compatible blank cards are listed on this page.
Can it encode cards?
Yes, with an encoder added to the printer. IDP offers a magnetic stripe encoder (ISO 7811, tracks 1-3, HiCo and LoCo), a contact smart card encoder (ISO 7816) and a 13.56 MHz contactless encoder (MIFARE, DESFire, iCLASS, ISO 14443 A/B). Add the one you need from the upgrades on this page.
Can I upgrade a SMART-31S to print both sides later?
Yes. IDP's 651315 flipper assembly converts a SMART-31S into a SMART-31D in the field. If you already know you need both sides, the SMART-31D configuration is the simpler buy.
Does the SMART-31 work with a Mac?
The printer does: IDP provides a macOS driver (macOS 11 and later) along with Windows 10/11 and Linux drivers. The free SMART IDesigner software runs on Windows only. To design and print cards from a Mac, use ID-ALL, which supports IDP SMART printers on Windows and Mac.
What software comes with it?
SMART IDesigner, IDP's card design and issuance software, is included free and downloads from IDP. It handles photos, text, 1D and 2D barcodes, sequential numbers, Excel, CSV and Access imports, and card encoding through plug-ins. It is Windows only. ID-ALL is the step up for Mac users and larger database work.
What warranty does it have?
IDP covers the SMART-31 with a 3-year Advanced Exchange warranty: when a problem can't be fixed over the phone, IDP's advance replacement may apply, so a replacement printer can ship before yours is repaired. Extended warranties for a 4th year (900504) or 4th and 5th years (900505) are available; they do not cover print heads. Specialist ID is an authorized IDP dealer.

Reviews
