Overview
Professional credentials, printed at your desk

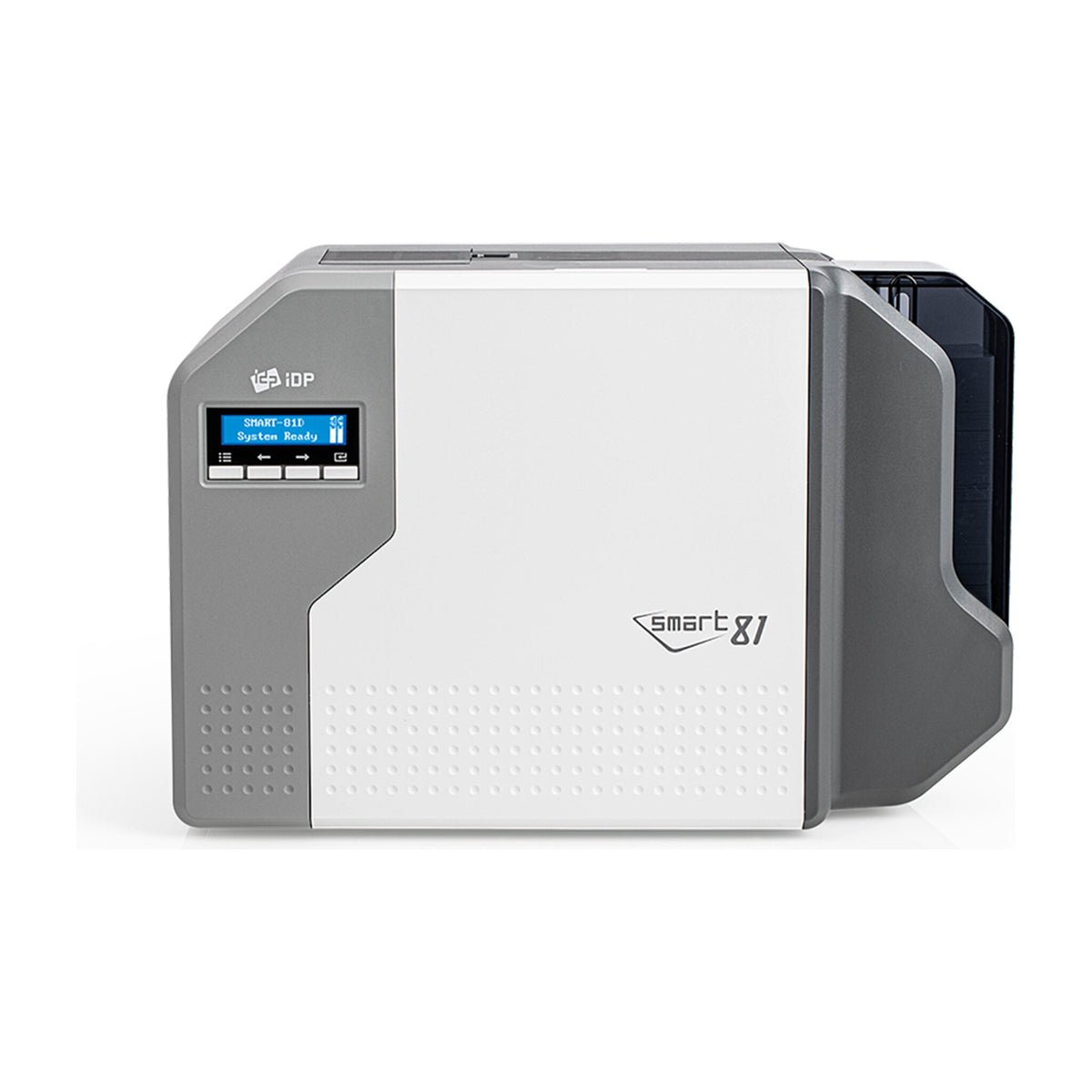

The IDP SMART-81DS is the secure version of the SMART-81D dual-sided retransfer ID card printer, built by IDP with its Banking Security Features for instant bank card issuance and other high-security credential programs. It prints each image onto a clear retransfer film and bonds that film onto the card, so color runs right to the edges on both sides of blank cards and technology cards.
IDP's Rapid Retransfer Printing (RRP) skips the long warm-up of older retransfer printers, so the printer is ready within seconds of power-on. An internal flipper prints the back; with a YMCKK ribbon it prints full color on the front and resin black on the back at up to 84 cards per hour. Every SMART-81 also has administrator and user passwords, PC authentication that ties the printer to an authorized computer, and encrypted print data over USB and SSL over Ethernet.
This is the 300 dpi dual-sided configuration with IDP's Banking Security Features; ask us for IDP's current details on what they include for your security review. Add magnetic stripe, contact or contactless smart card encoding, Wi-Fi, a physical security lock or the SMART-81L laminator from the upgrades in the buy box. IDP's SMART IDesigner card design software is included as a free Windows download. For Mac, or for database-driven badging and more advanced layouts, ID-ALL is the step up. IDP backs the SMART-81 with a 3-year Advanced Exchange warranty and a lifetime print head warranty.
Reference
Consumables
A complete list of compatible consumables for the IDP SMART-81DS. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| 653547 | IDP YMCK Ribbon and Film Pack, 500 Prints |
| 653378 | IDP YMCKK Ribbon, 500 Prints |
| 653379 | IDP YMCFK UV Ribbon, 500 Prints |
| Part Number | Description and Yield |
|---|---|
| 653431 | IDP Retransfer Film, 500 Prints |
| Part Number | Description and Yield |
|---|---|
| 653629 | IDP Clear Patch Laminate, 500 Patches |
| 900849 | IDP Globe Flags Laminate, 500 Patches |
| 900850 | IDP Globe Flags ThinFilm, 1000 Images |
| 653630 | IDP Celestial Laminate, 500 Patches |
| 653631 | IDP Clear IC Chip Laminate, 500 Patches |
| 900868 | IDP Alternating IC Chip Laminate, 250 Patches |
| Part Number | Description |
|---|---|
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
| CR8030COMP | Composite PVC/PET Blank Cards, CR-80 30mil |
| SPID-9630 | Specialist ID Blank White PVC Cards, CR-80 30mil |
| SPID-9790-WHITE | Specialist ID HiCo Mag Stripe PVC Cards, CR-80 30mil |
| SPIDPROX | HID Compatible Prox Cards |
| SPIDprox26H | Prox Cards With Magnetic Stripe |
| COM/D41 | MIFARE DESFire EV1 4K Cards |
The detail
Technical Specifications
- Print method
- Dye-sublimation / resin thermal retransfer (IDP Rapid Retransfer Printing)
- Print sides
- Dual-sided (internal flipper), over-the-edge (full bleed)
- Resolution
- 300 dpi
- Print speed, YMCKK dual-sided
- up to 84 cards per hour (max. 43 seconds per card)
- Card size
- ISO CR80 (2.125 x 3.375 in / 54 x 86 mm)
- Card thickness
- 30 to 64 mil (0.76 to 1.6 mm)
- Card types
- PVC, PET, composite PVC
- Card capacity

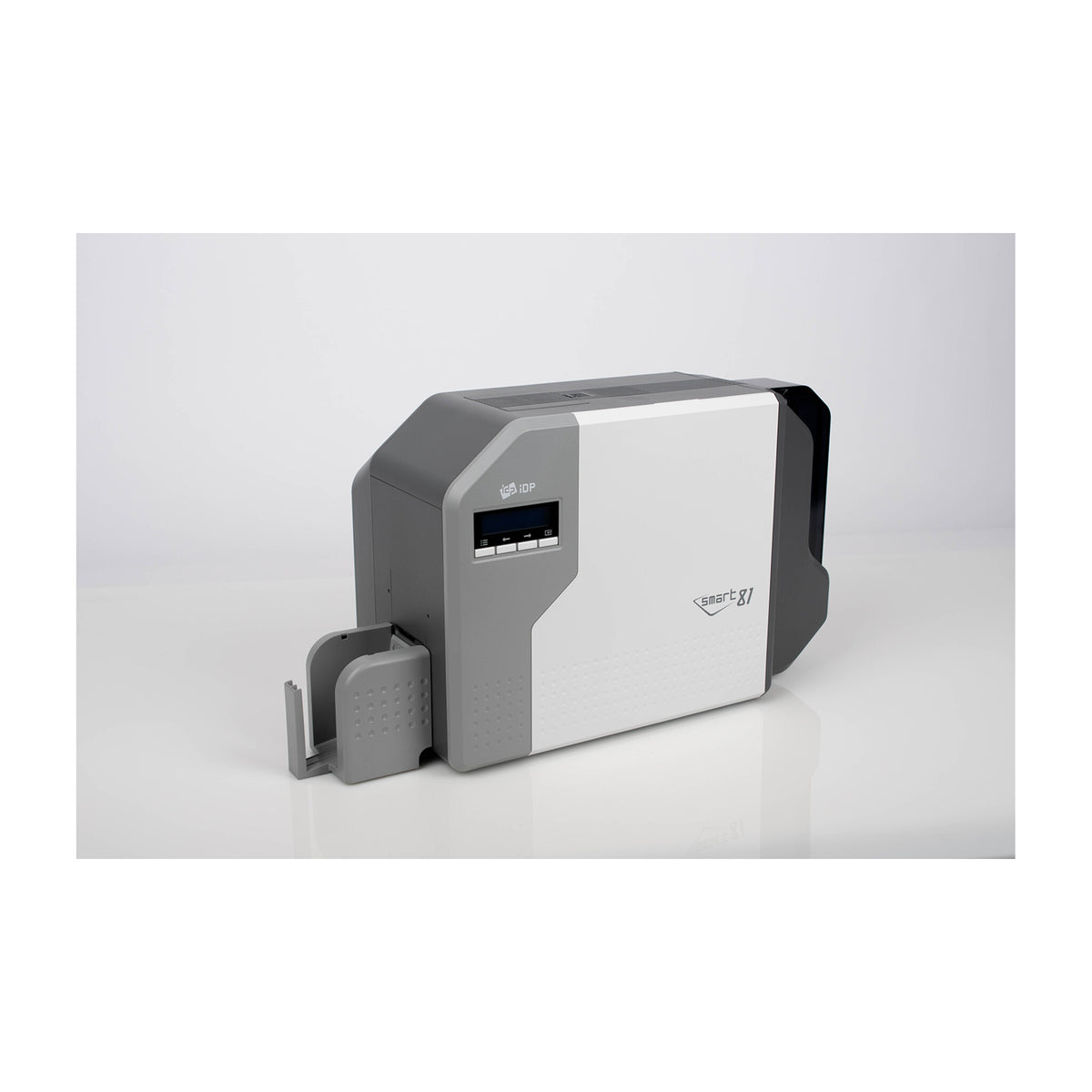

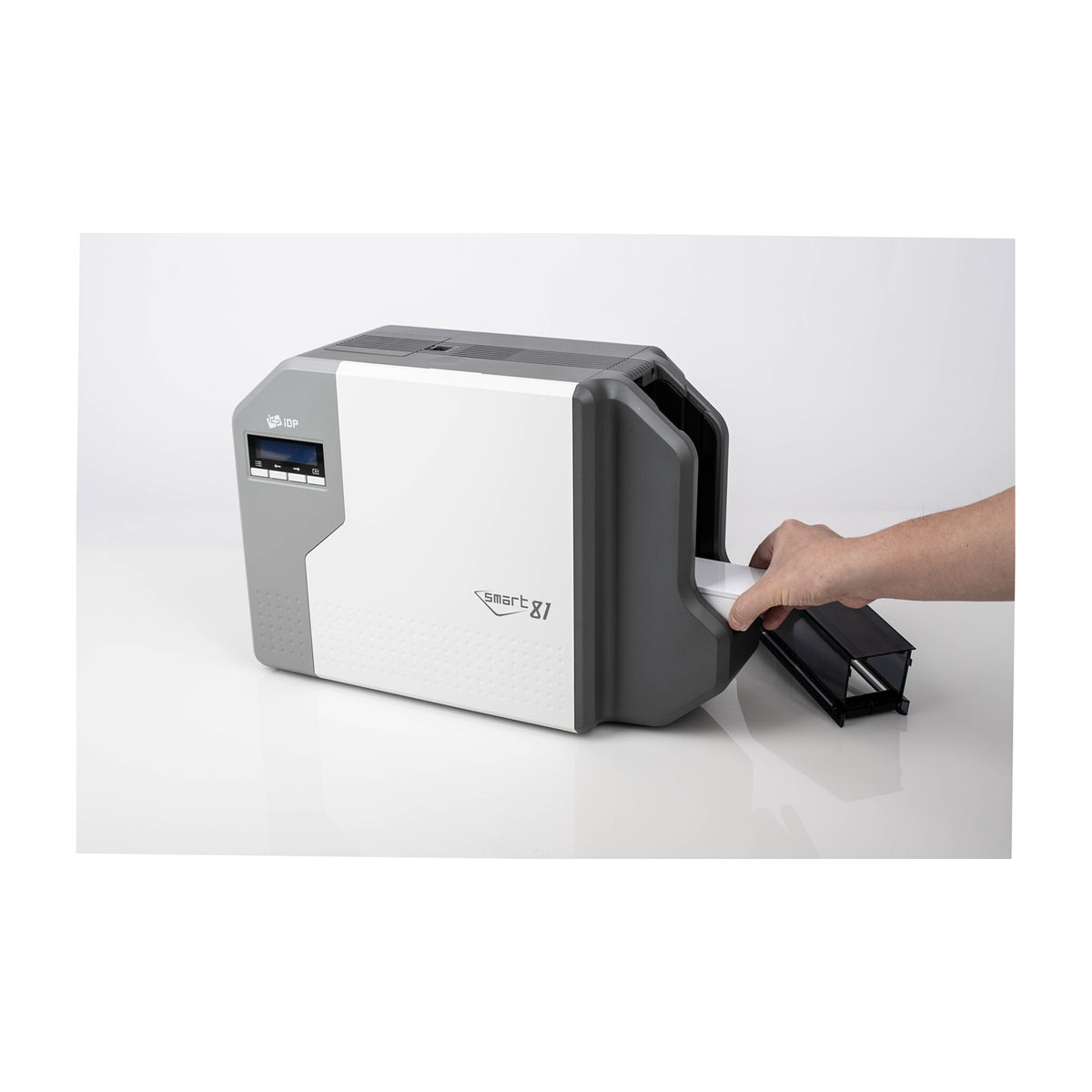

- 200-card input hopper, 100-card output stacker, 25-card reject bin
- Display
- 2-line graphic LCD with 4 buttons
- Connectivity
- USB and Ethernet (Wi-Fi optional with the SMARTWi-Fi kit 653543)
- Encoding
- None (add magnetic stripe, contact or contactless encoding as an upgrade)
- Configuration
- Secure build with IDP Banking Security Features (contact us for IDP's details)
- Operating systems
- Windows 10 and 11 (64-bit), macOS 11 and later, Linux
- Security

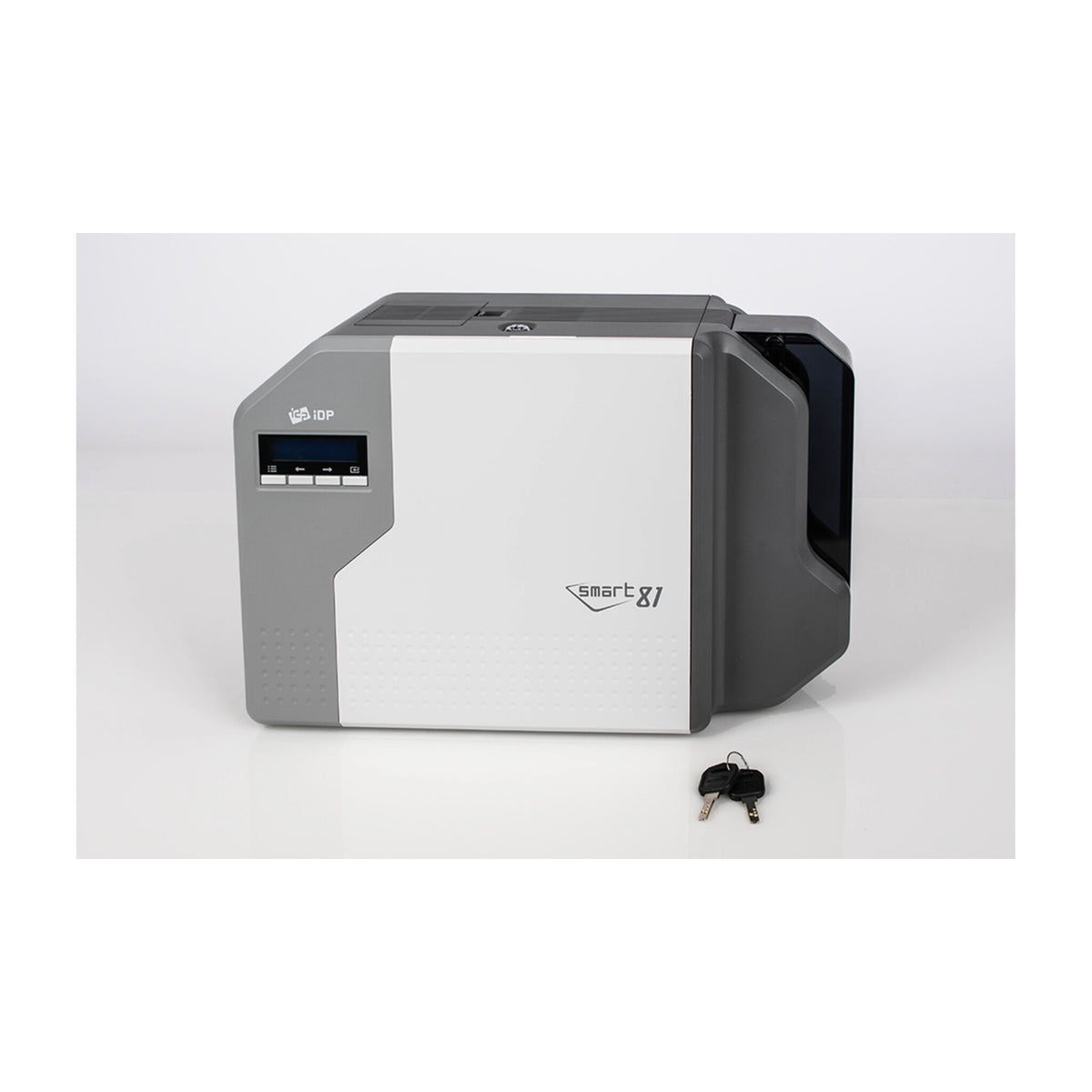

- administrator and user passwords, PC authentication, data encryption over USB and SSL over Ethernet, SNMPv3, Kensington slot; optional physical security lock (653542)
- Power
- 100-240 V AC, 50/60 Hz, 2.5 A
- Operating environment
- 59 to 95 F (15 to 35 C), 35 to 70% humidity
- Lamination
- optional SMART-81L laminator module (653635), field-installable; links to the printer by infrared
- Dimensions
- 18.1 W x 8.8 D x 12.2 H in (460 x 224 x 310 mm)
- Weight
- 25.13 lb (11.4 kg)
- Warranty
- 3-year Advanced Exchange; lifetime print head warranty
- In the box

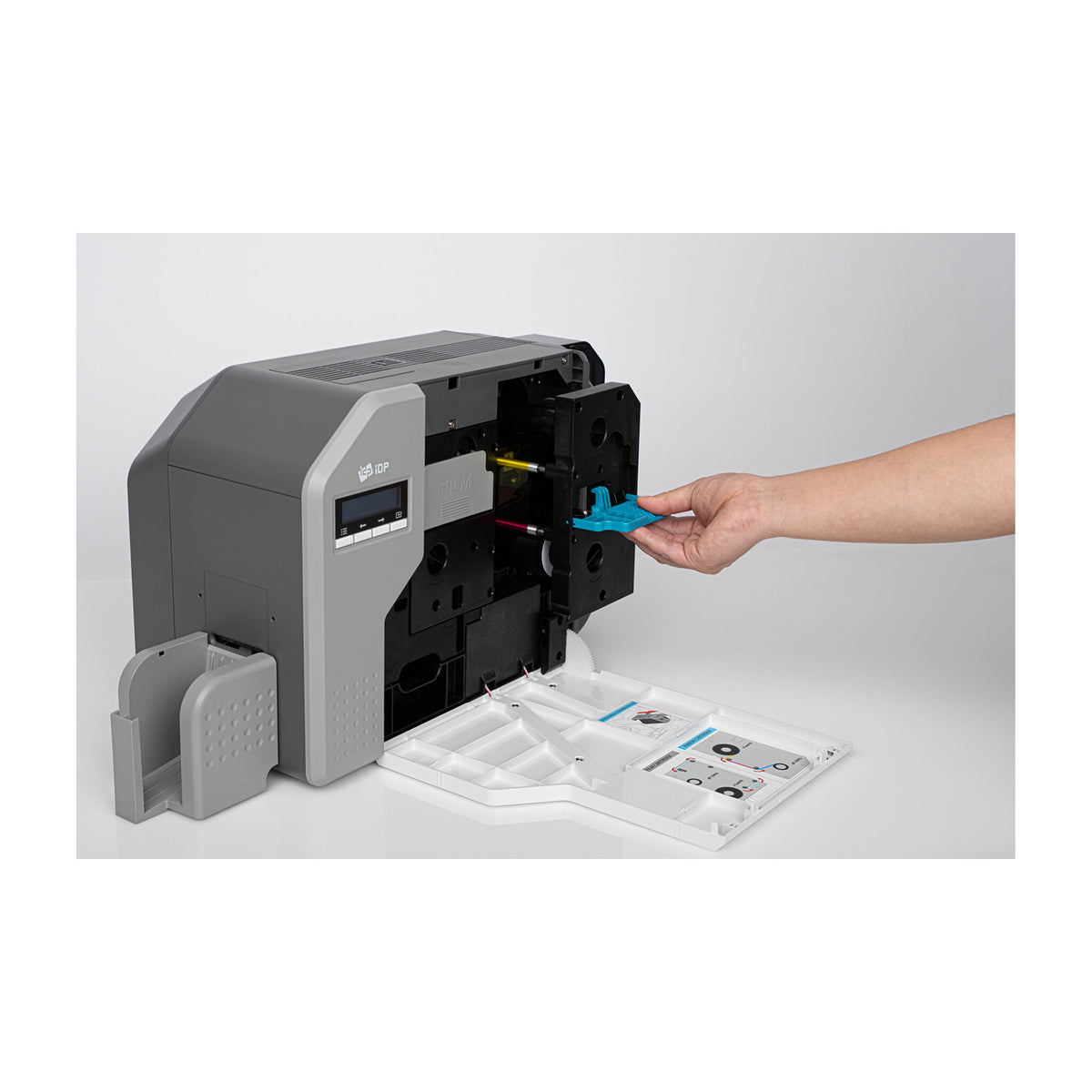

- printer, AC power cable, USB cable, card stacker, ribbon cartridge and retransfer film cartridge (installed), cable protection cover, quick guide
Stock up
Compatible Supplies
Genuine IDP ribbons and supplies matched to the SMART-81.

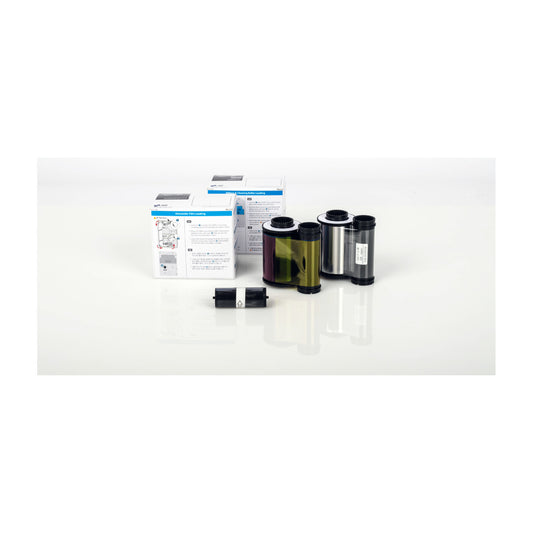

IDP 653547 YMCK Color Ribbon and Retransfer Film Pack for the SMART-81, 500 Prints
#653547
Regular price
$373.12Add to Cart for Price

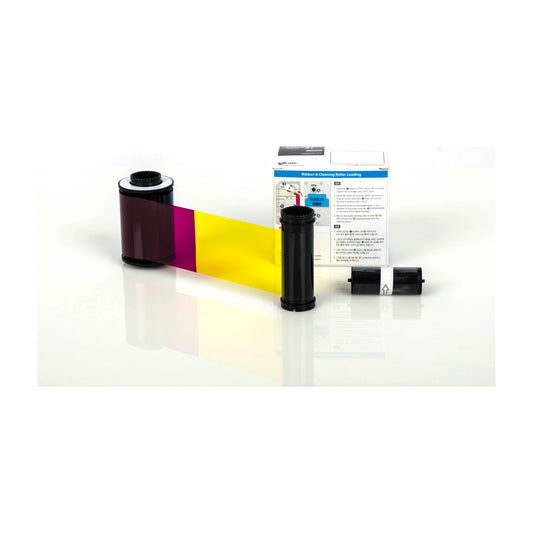

IDP 653378 YMCKK Color Ribbon for the SMART-81, 500 Prints
#653378
Regular price
$338.14Add to Cart for Price
IDP 653379 YMCFK Color Ribbon with UV Panel for the SMART-81, 500 Prints
#653379
Regular price
$361.46Add to Cart for Price

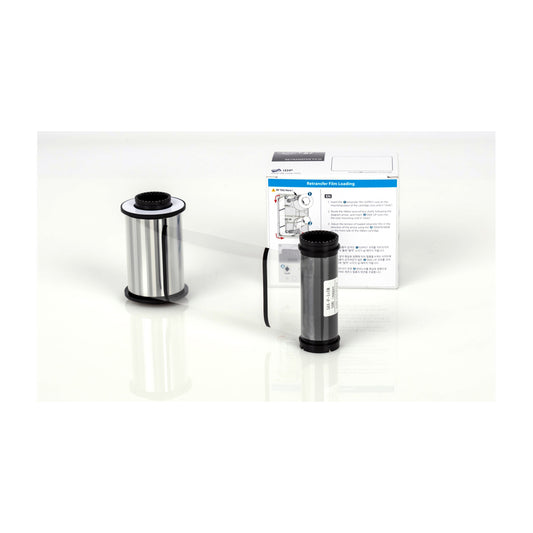

IDP 653431 Retransfer Film for the SMART-81, 500 Prints
#653431
Regular price
$87.45Add to Cart for Price

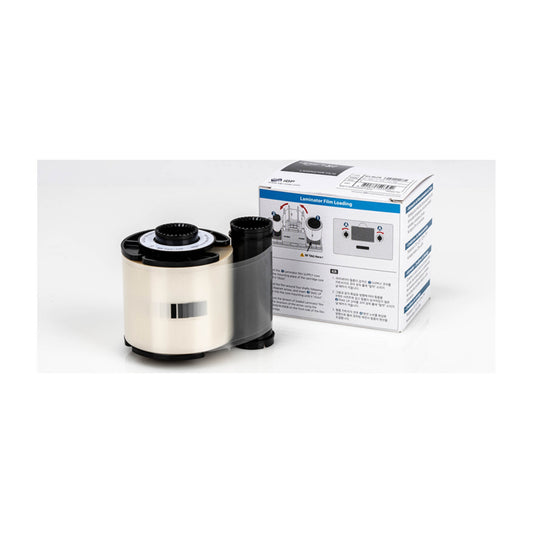

IDP 653629 Clear Patch Laminate for the SMART-81L, 500 Patches
#653629
Regular price
$237.44Add to Cart for Price

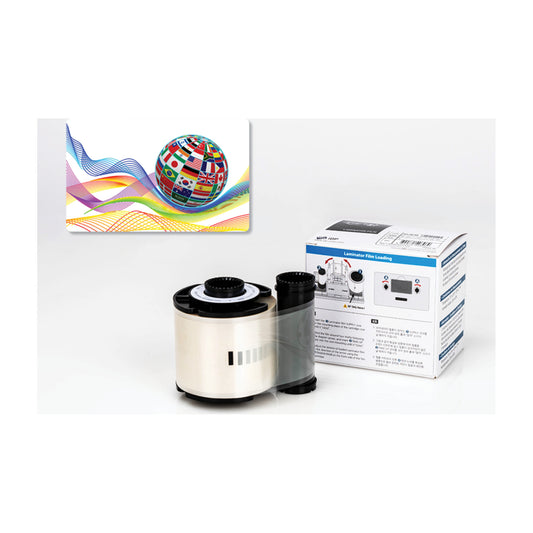

IDP 900849 Globe Flags Hologram Patch Laminate for the SMART-81L, 500 Patches
#900849
Regular price
$271.36Add to Cart for Price
IDP 900850 Globe Flags ThinFilm Overlay Laminate for the SMART-81L, 1000 Images
#900850
Regular price
$271.36Add to Cart for Price
IDP 653630 Celestial Hologram Patch Laminate for the SMART-81L, 500 Patches
#653630
Regular price
$435.66Add to Cart for Price

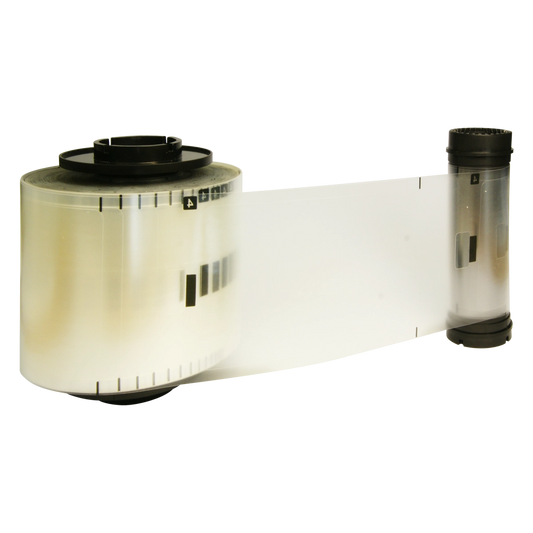

IDP 653631 Clear IC Chip Patch Laminate for the SMART-81L, 500 Patches
#653631
Regular price
$248.04Add to Cart for Price
IDP 900868 Alternating Clear IC Chip and Full Clear Patch Laminate for the SMART-81L, 250 Patches
#900868
Regular price
$248.04Add to Cart for Price
Blank Composite Cards for Retransfer ID Printers - CR80 30 Mil PET PVC Blend Compatible with Magicard Prima 4 Prima 8 and Fargo HDP Printers
#SPID-8670-WHITE
Regular price
From $29.99
Regular price
Sale price
From $29.99
IDP 659909 Long Cleaning Card Kit for SMART Card Printers, 10 Cards
#659909
Regular price
$52.47Add to Cart for Price
500 Pack – Professional CR80 30 mil Composite PVC/PET Cards (Compatible with Most Printers)
#CR8030COMP
Regular price
$126.00
Regular price
Sale price
$126.00
IDP 659217 Cleaning Roller Kit for the SMART-70 and SMART-81, 10 Rollers
#659217
Regular price
$90.95Add to Cart for Price
Blank White PVC Cards for ID Badge Printers - CR80 30 Mil (SPID-9630) Color Options
#SPID-9630
Regular price
From $15.99
Regular price
Sale price
From $15.99
Standard CR80 30mil Cards w/ HiCo Mag Stripe
#SPID-9790-WHITE
Regular price
From $19.99
Regular price
Sale price
From $19.99
SPIDproxH HID Compatible ISO Prox Cards With Magnetic Stripe
#SPIDprox26H
Regular price
$4.68
Regular price
Sale price
$4.68
MIFARE® DESFire® EV1 4K Cards CR-80, PET+PVC Composite
#COM/D41
Regular price
$2.79
Regular price
$2.99
Sale price
$2.79
Downloads
Documents & Resources
Documents
Questions & answers
Frequently asked questions
What is retransfer printing, and why choose it?
A retransfer printer prints the image onto a clear retransfer film first, then a heated roller bonds that film onto the card. Because the print head never touches the card, color runs edge to edge (IDP calls it Infinity Printing) on blank cards and on technology cards such as smart cards. IDP's Rapid Retransfer Printing (RRP) skips the long warm-up of older retransfer printers, so the SMART-81 is ready seconds after power-on.
What ribbon and film does the SMART-81 use?
Every SMART-81 job needs a color ribbon plus retransfer film. The simplest choice is the 653547 pack: a YMCK color ribbon and a retransfer film, 500 images each. The 653378 YMCKK ribbon (full color front, resin black back, for dual-sided models) and the 653379 YMCFK ribbon (adds a UV panel) come without film, so pair them with 653431 retransfer film. Rolls carry an RF tag that the printer reads, so use genuine IDP SMART-81 supplies.
Does it print on both sides of the card?
The SMART-81S prints one side. The SMART-81D, SMART-81DS, SMART-81HD and SMART-81HDS are dual-sided, with an internal flipper that turns the card for the back. Choose the version you need in the selector above.
Can the SMART-81 laminate cards?
Yes, with the SMART-81L laminator module (653635), which attaches beside the printer as a field upgrade and talks to it by infrared. It applies clear or holographic 1 mil patches (500 per roll) or ThinFilm overlay (1,000 per roll). The 900850 Globe Flags ThinFilm is for single-sided lamination only. IDP lists the SMART-81L for the SMART-81D and SMART-81HD.
What encoding options are available, and which must be installed at the factory?
The SMART-81 takes a magnetic stripe encoder (ISO 7811 tracks 1-3, HiCo/LoCo, 653538), a contact smart card encoder (ISO 7816, 653539), a 13.56 MHz contactless encoder (ISO 14443 A/B, MIFARE, DESFire, iCLASS, 653540) or a combined contact and contactless encoder (653708). The IDP dual-frequency encoder (900714) and dual-frequency reader (900715), which add 125 kHz Prox reading, are factory-installed only, so order them with the printer. Add encoding from the upgrades in the buy box.
Does the SMART-81 work with a Mac?
IDP publishes SMART-81 drivers for Windows 10 and 11 (64-bit), macOS 11 and later, and Linux. IDP's free SMART IDesigner software runs on Windows only, so on a Mac use ID-ALL card design software, which supports IDP SMART printers on Windows and Mac.
What software comes with it?
Every SMART printer includes IDP's SMART IDesigner at no charge, as a Windows download. It designs cards with photos, text and 1D/2D barcodes, crops portraits automatically, prints sequential numbers, imports data from Excel, CSV or Access, and runs magnetic stripe and smart card encoding through plug-ins. For Mac or larger database work, ID-ALL is the step up.
What is the difference between the SMART-81D and the SMART-81HD?
Both are dual-sided retransfer printers on the same chassis. The SMART-81D prints at 300 dpi; the SMART-81HD prints at 600 x 600 dpi for finer detail in photos, small text and graphics. The SMART-81DS and SMART-81HDS are the same printers built with IDP's Banking Security Features.
What warranty does the SMART-81 carry?
IDP covers the SMART-81 with a 3-year Advanced Exchange warranty and a lifetime print head warranty. Optional extended warranties add a fourth year (900514) or fourth and fifth years (900515) of advanced exchange. Specialist ID is an authorized IDP dealer.
