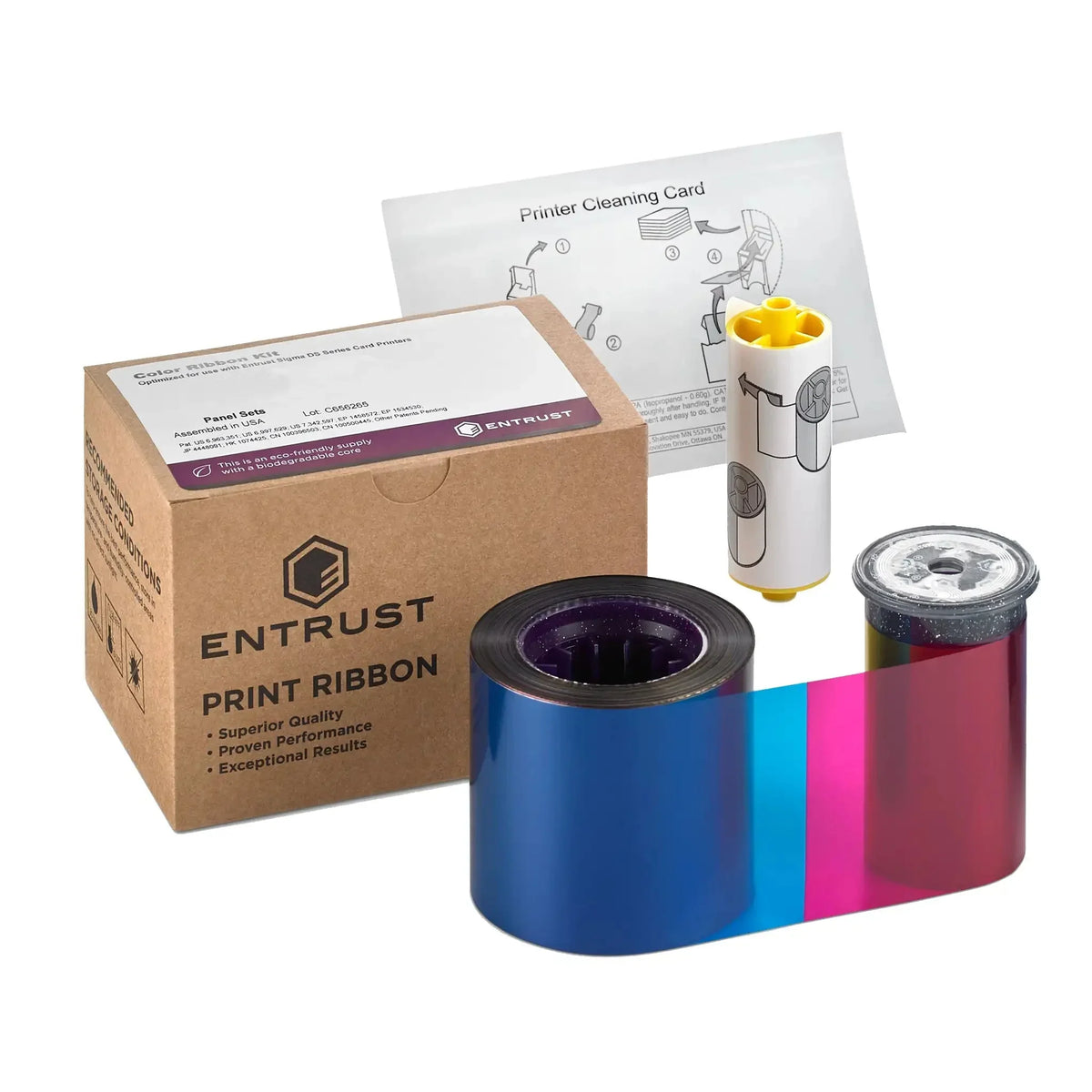

Entrust 534700-002-R010 ymcKT Short-Panel Regional Color Ribbon Kit, 650 Prints

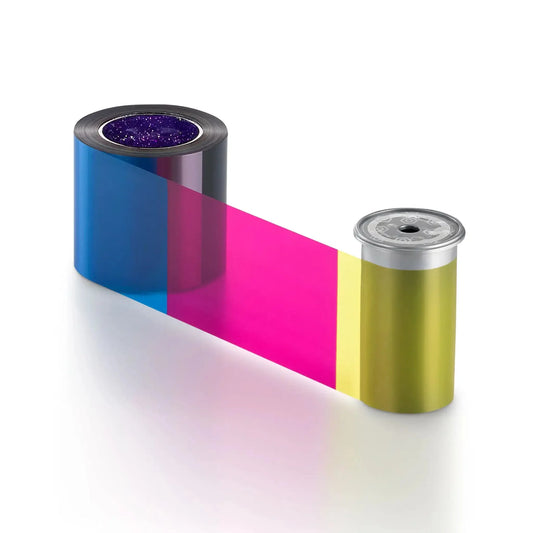

The Entrust 534700-002-R010 is a ymcKT short-panel regional color ribbon kit. Its shortened yellow, magenta and cyan panels print color over part of the card, the full-length black resin K panel prints text and readable barcodes, and the clear T topcoat panel protects the finished surface. Each roll prints 650 cards. It fits the Entrust SD260, SD360 and SD460 card printers.

This is the regional replacement for the legacy 534000-004 ymcKT short-panel ribbon kit, and it costs less per roll than the part it replaces. Short-panel ribbons suit cards where color is confined to a photo area rather than covering the full card.

About regional ribbons

The first time a regional ribbon is loaded, the printer is permanently set to regional supplies. After that the legacy non-regional YMCKT, ymcKT and YMCKT-KT ribbons can no longer be used in that printer and will display Supply region not valid 224. Entrust's guidance is to use up any legacy color ribbon stock before loading the first regional ribbon. A printer that has already been switched shows its region code to the right of the model number on the LCD.

Printer firmware must be at D2.15.3xx or higher, or D3.16.3xx or higher. Printers shipped since August 2016 already include it. A regional ribbon loaded into a printer with older firmware displays Print ribbon not supported 119.

Specifications

• Part number: 534700-002-R010
• Type: ymcKT short-panel regional color ribbon kit
• Panel configuration: Shortened yellow, magenta and cyan panels with a full-length black resin panel and a clear topcoat
• Rated yield: 650 cards per roll
• Compatible printers: Entrust SD260, SD360, SD460
• Replaces: Legacy part 534000-004
