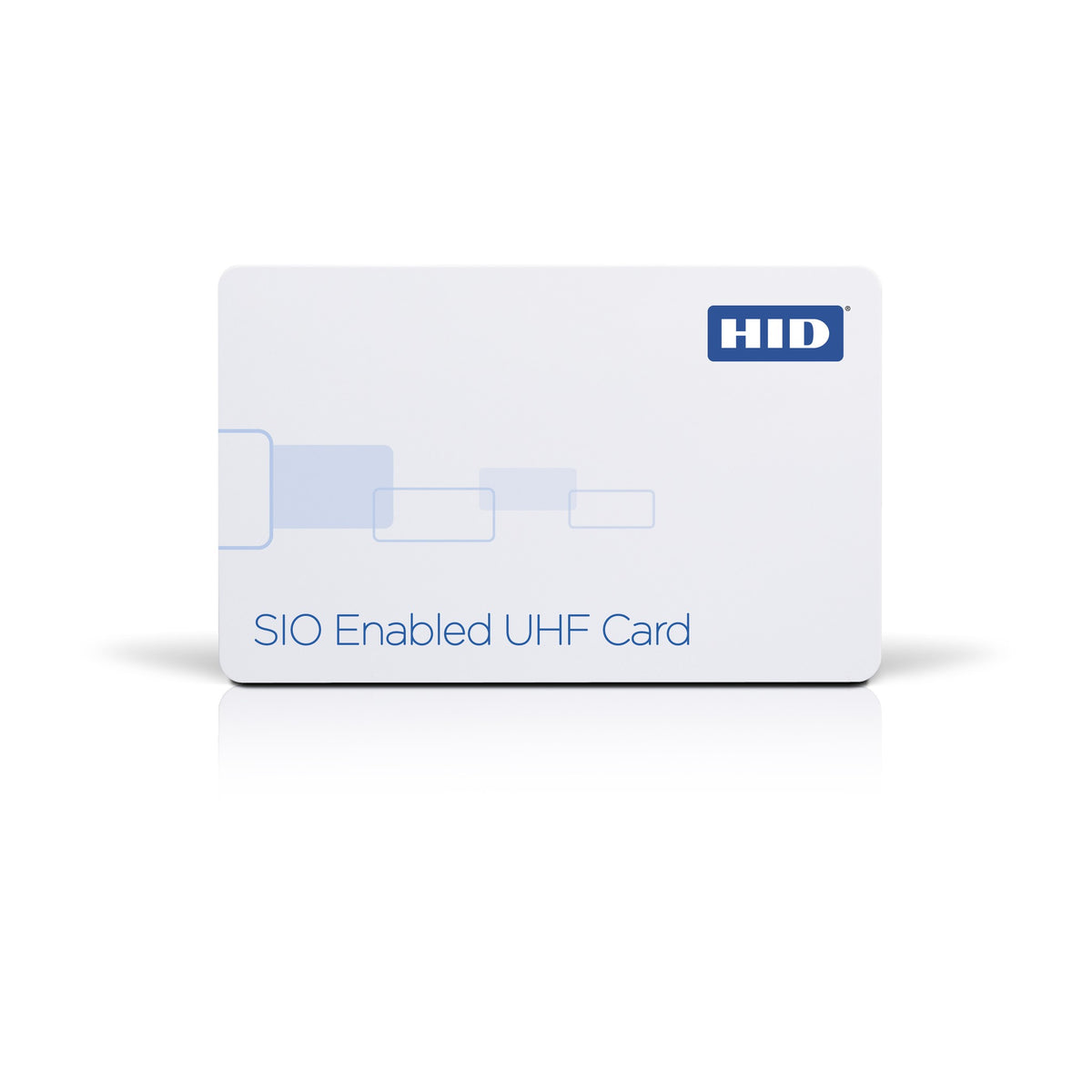

HID 600TGGAN SIO Enabled UHF Contactless Smart Card (Programmed)

The HID 600 is a long-range access credential. Where every other card in this catalogue is read at a few inches, this one works at 860 to 960 MHz — UHF — and reads at up to five metres depending on the installation. That is the difference between a driver winding down a window at a barrier and a driver not slowing down at all, which is why it is the card for parking, gates, vehicle access and hospital campuses.

What makes it an HID credential rather than a generic UHF tag is the SIO. Its 512 bits of user memory hold a PACS Secure Identity Object, so the credential number is wrapped in HID's own layer of encryption and authentication and the card is bound to your access control system rather than being a freely readable serial number. It operates with the iCLASS SE U90 reader.

Printing is the constraint to plan around. HID are emphatic that high definition retransfer (HDP) is the only recommended print process for this card — direct-to-card and other processes will not produce acceptable results. Card marking is done by laser engraving. You can also add a magnetic stripe, a barcode or an anti-counterfeiting element. To order, give us your card format, your facility or site code, and the starting card number; note that HID recommend keeping the encoded data below 120 bits.

Specifications

• Technology: UHF 860 to 960 MHz, EPC Class-1 Gen-2 / ISO 18000-6C
• Memory: 512 bit user memory holding a PACS Secure Identity Object (SIO)
• Read range: up to 5 m (16 ft), installation dependent
• Reader: HID iCLASS SE U90
• Construction: composite, 60% PVC / 40% polyester
• Printing: HDP retransfer only — HID state that direct-to-card and other processes will not produce acceptable results
• Marking: laser engraving
• Magnetic stripe: optional, 1/2 in HiCo / high energy 4000 Oe
• Encoded data: HID recommend keeping the format below 120 bits
• Operating temperature: -40 to 158 °F (-40 to 70 °C)
• Dimensions: 3.375 in x 2.127 in x 0.033 in max (8.57 cm x 5.4 cm x 0.084 cm)
• Weight: 0.20 oz (5.7 g)
• Slot punch: not available on this card
• Warranty: lifetime
• Base part number: 600 (example configured: 600TGGAN)
