Professional credentials, printed at your desk

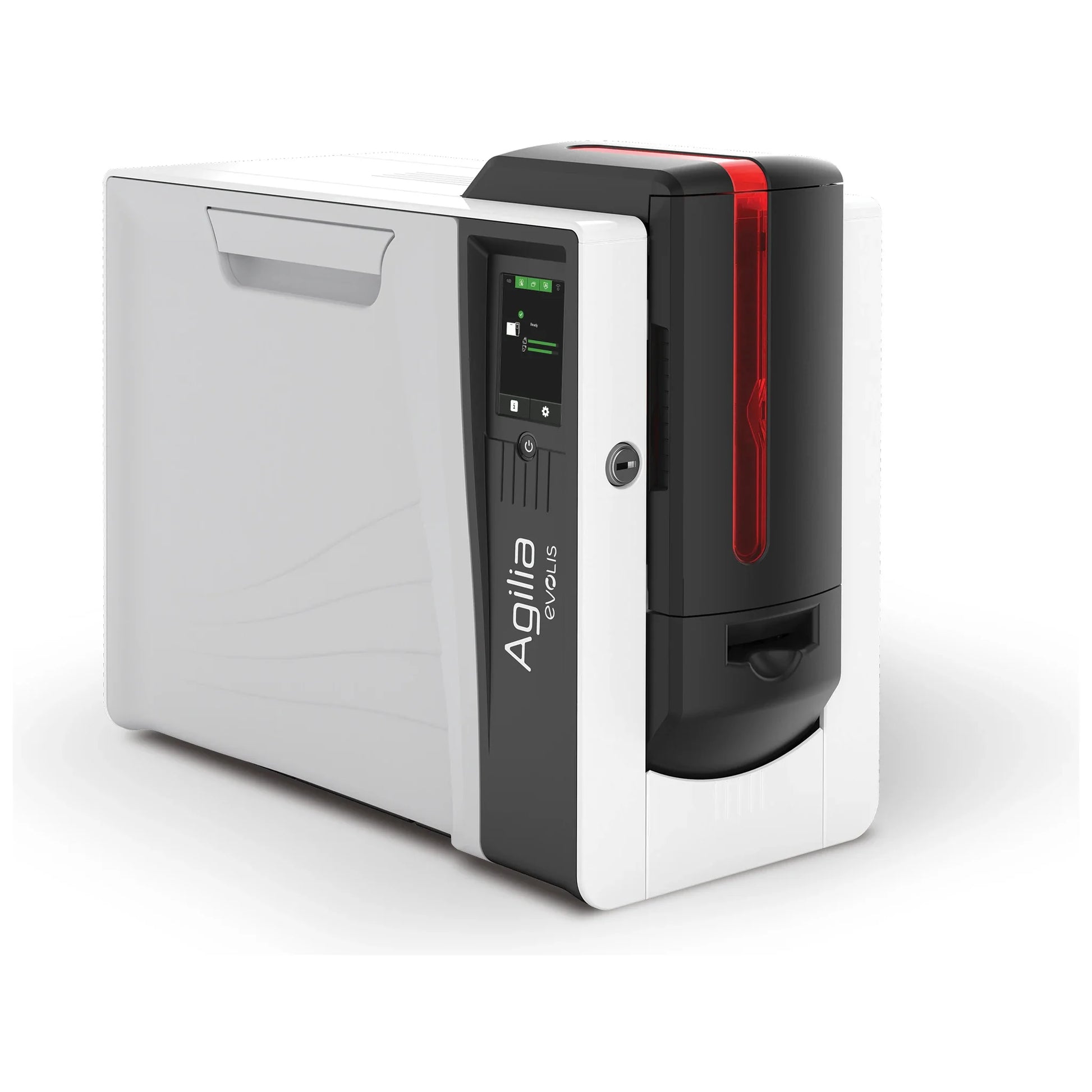

The Evolis Agilia is the latest generation of Evolis retransfer printing: true 600 dpi print quality with over-the-edge coverage on every card. Retransfer printing puts the image on a clear film first, then thermally bonds the film to the card, so smart cards, uneven surfaces, and non-PVC materials all come out with the same flawless finish. A 3.5-inch color touch screen runs the whole printer.
Magnetic stripe encoding built in
This configuration writes ISO 7811 magnetic stripes, tracks 1, 2 and 3, high- or low-coercivity, inline as each card prints, so badges come out ready to swipe.
Contactless encoding built in
This configuration includes the factory-installed Evolis Elyctis Contactless encoder for 13.56 MHz credentials, including ISO 14443 A and B, ISO 15693, MIFARE, and DESFire.

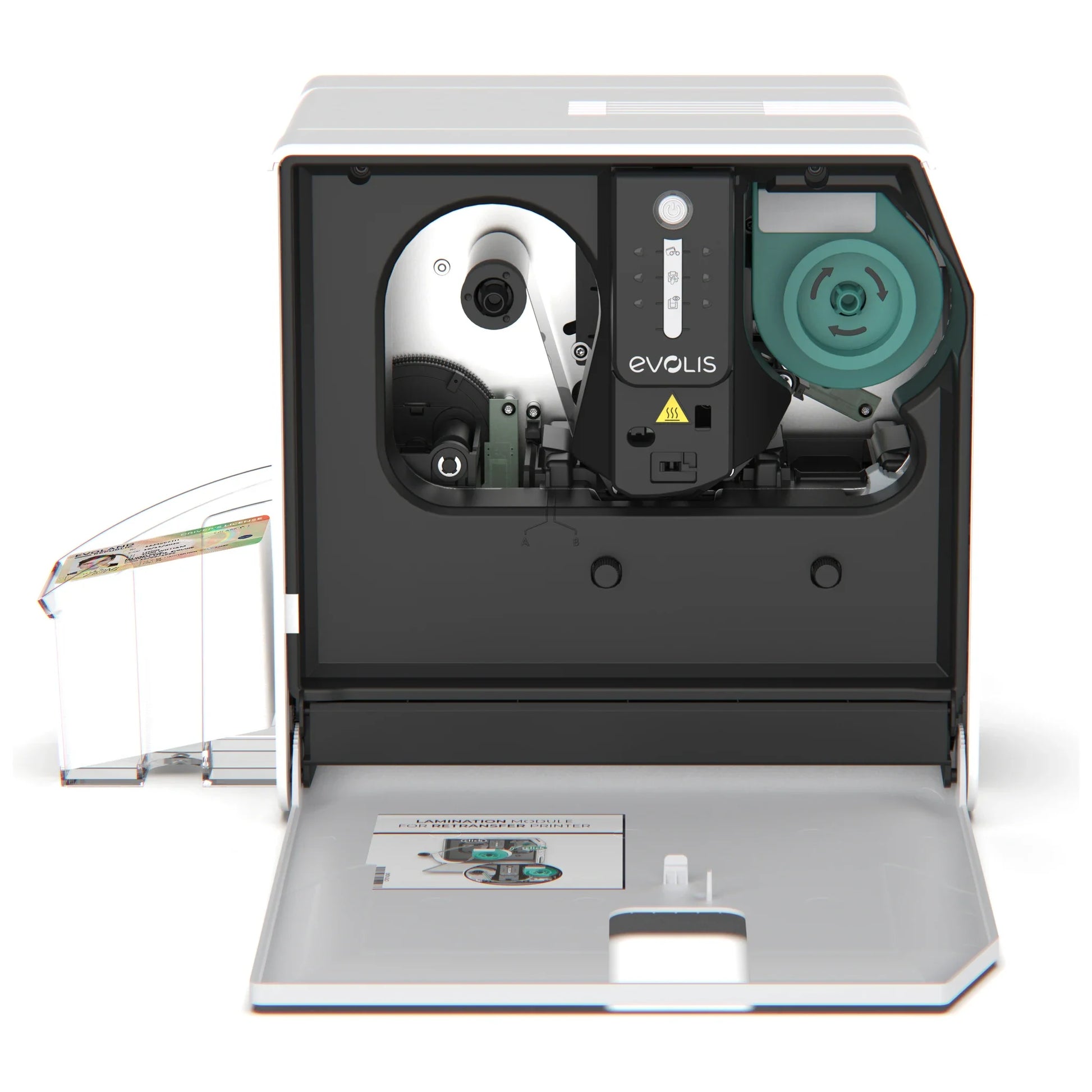

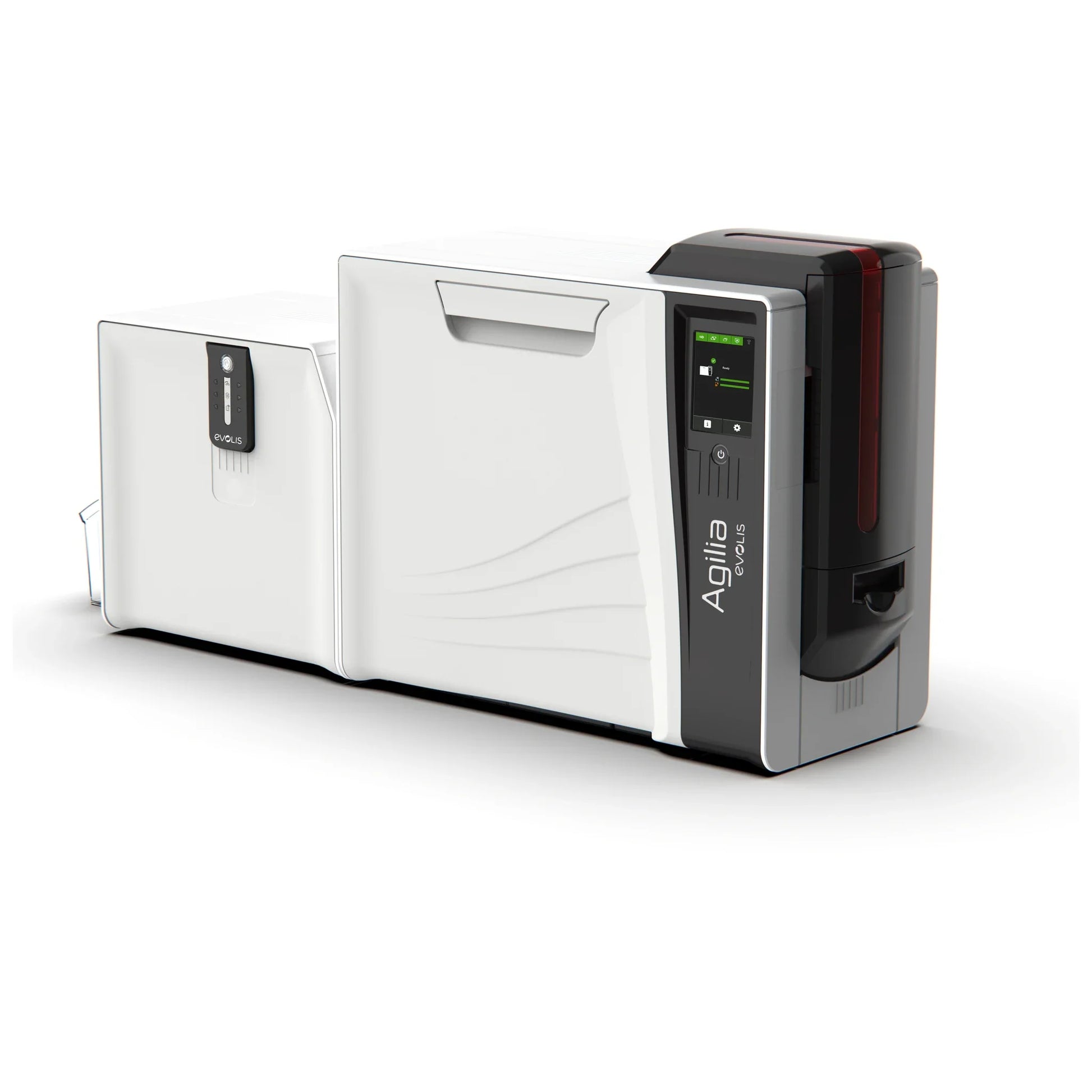

Card lamination included
This configuration pairs the printer with the Evolis Card Lamination Module (CLM). The CLM applies clear or holographic patches and varnishes to one or both sides of the card as part of the same inline job, extending card life up to 10 years and making credentials far harder to alter or copy. Because lamination applies heat, use composite PVC/PET cards in this configuration: standard all-PVC cards can warp under laminator heat. The recommended composite cards are listed under Compatible Supplies.
Retransfer quality, production handling
The Agilia prints up to 150 single-sided or 100 dual-sided cards per hour from a 200-card input hopper with low-level detection, plus a manual feeder. Ribbons and films identify themselves automatically, and the print head carries a lifetime warranty when cleaning intervals are respected with genuine Evolis High Trust supplies. Because retransfer printing applies heat, use composite PVC/PET cards: standard all-PVC cards can warp. The recommended composite cards are listed under Compatible Supplies.
Software included
Every Agilia ships with an ID-ALL Starter Edition license for designing and printing badges on Windows and macOS, plus Evolis Premium Suite 2 drivers and the Evolis Print Service mobile app. Upgrades to higher ID-ALL editions are sold separately.
Specialist ID is an authorized Evolis dealer. The Agilia carries a 3-year printer warranty and a lifetime print head warranty with genuine Evolis High Trust ribbons and films.
Consumables
A complete list of compatible consumables for the Evolis Agilia. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| RT4F101A100 | Evolis Agilia YMCK Ribbon |
| RT5F102A100 | Evolis Agilia YMCK-K Ribbon |
| RT5F103NAAA | Evolis Agilia YMCKI Ribbon |
| RT6F105NAAA | Evolis Agilia YMCKKI Ribbon |
| RTCT107NAAA | Evolis Agilia Black Retransfer |
| Part Number | Description and Yield |
|---|---|
| RTCL100NAAA | Evolis Agilia Retransfer Film |
| Part Number | Description and Yield |
|---|---|
| LPS032NAA | Evolis Clear Patch, 0.5 Mil |
| LPS034NAA | Evolis Clear Smart Cut Patch |
| LPS033NAA | Evolis Holo Patch Laminate |
| LPS070NAA | Evolis Clear Patch, 1.0 Mil |
| LPS071NAA | Evolis Clear Patch Laminate |
| LPS064NAA | Evolis Holo Patch, 1.0 Mil |
| LPA073NAA | Evolis Avansia Smart/Full Patch |
| LPA074NAA | Evolis Avansia Smart/Mag Patch |
| LPA072NAA | Evolis Avansia Full/Mag Patch |
| LVA038NAA | Evolis Clear Varnish Ribbon |
| LVA036NAA | Evolis Hologram Varnish Ribbon |
| LVR037NAA | Evolis Registered Holo Varnish |
| Part Number | Description |
|---|---|
| 082137 | HID FARGO UltraCard Composite HiCo Mag (500) |
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
Technical Specifications
- Print method
- Retransfer (reverse transfer): dye-sublimation color onto a clear film, thermally bonded to the card
- Print resolution
- 600 x 600 dpi
- Print sides
- Single-sided (field-upgradable to dual-sided with the AGL1-KTDS kit)
- Print speed
- Up to 150 single-sided (YMCK) or 100 dual-sided (YMCK-K) cards per hour
- Card input
- 200-card input hopper with low-level detection; manual feeder
- Card output
- 100-card output hopper; 10-card reject hopper with full-box detection
- Accepted cards
- ISO CR-80; 0.76 to 1.25 mm (30 to 50 mil); PVC, COMPOSITE PVC (recommended), PET, polycarbonate, ABS
- Magnetic stripe encoding
- ISO 7811 tracks 1, 2 and 3, high- and low-coercivity; factory-installed only; encrypted data path
- Smart card encoding
- Evolis Elyctis Contactless: 13.56 MHz (ISO 14443 A/B, ISO 15693, MIFARE, DESFire)
- Lamination
- Evolis CLM for Agilia; single- and dual-side lamination; up to 132 laminated single-sided or 90 dual-sided cards per hour; patches and varnishes, clear or holographic
- Display
- 3.5 in (89 mm) color touch screen
- Connectivity
- USB 2.0 and 10/100 Ethernet
- Software
- ID-ALL Starter Edition license included (Windows and macOS); Evolis Premium Suite 2 drivers; Evolis Print Service mobile app; Evolis SDK
- Security
- Kensington lock support, Digital Erasing, data encryption for magnetic encoding
- Dimensions
- 14.7 in H x 21.2 in W x 8.1 in D with output hopper (373 x 538 x 205 mm); add CLM module
- Weight
- 21.2 lb (9.6 kg)
- Warranty
- 3 years printer; lifetime print head (with Evolis High Trust supplies); 3 years CLM
Compatible Supplies
Genuine Evolis ribbons and supplies matched to the Evolis Agilia.
Evolis RT4F101A100 HighTrust YMCK Color Ribbon for the Agilia, 600 Prints
Evolis RTCL100NAAA HighTrust Clear Retransfer Film for the Agilia, 1200 Prints
Evolis LPS070NAA Clear Patch Laminate 1.0 mil (600 Prints)
