Professional credentials, printed at your desk

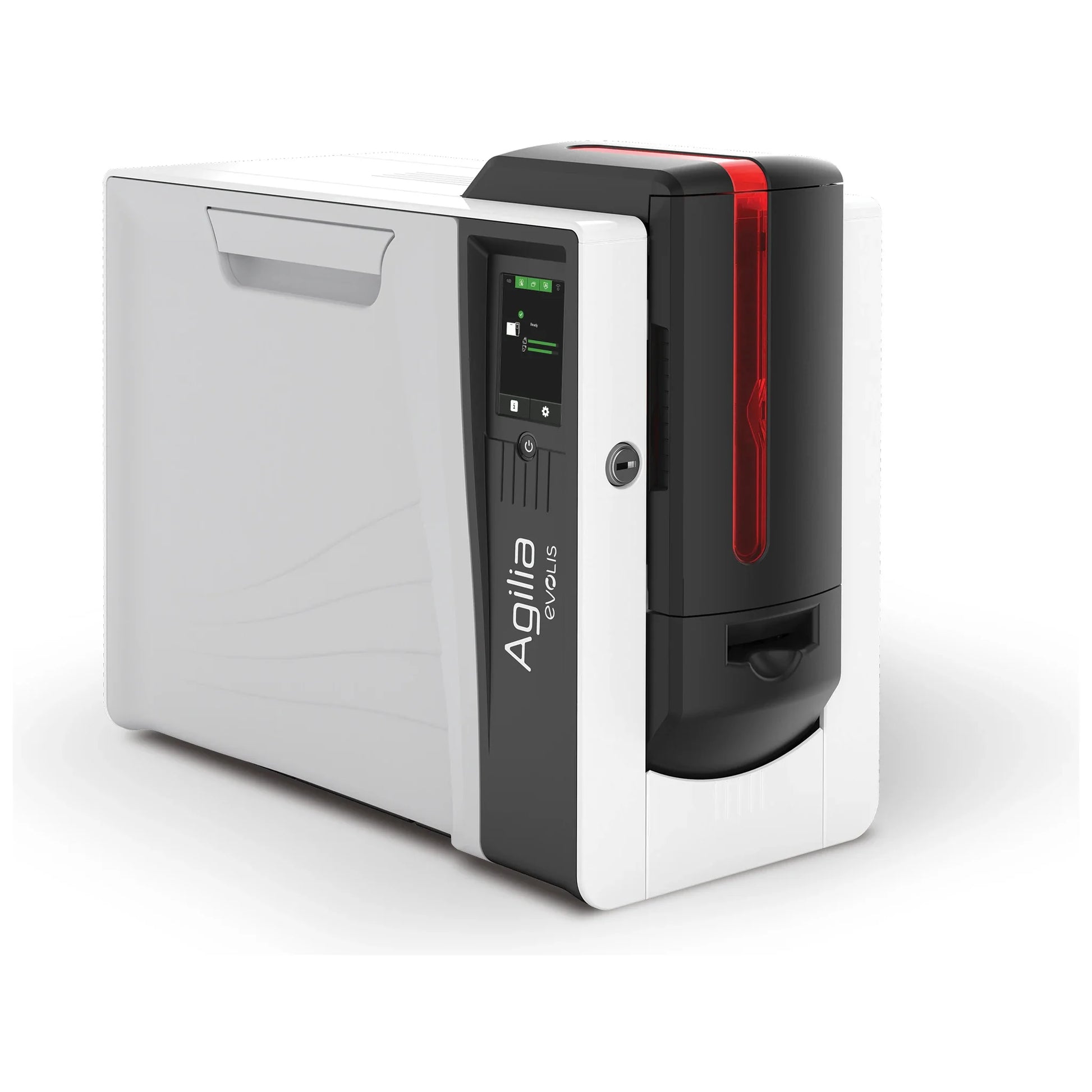

The Evolis Agilia is the latest generation of Evolis retransfer printing: true 600 dpi print quality with over-the-edge coverage on every card. Retransfer printing puts the image on a clear film first, then thermally bonds the film to the card, so smart cards, uneven surfaces, and non-PVC materials all come out with the same flawless finish. A 3.5-inch color touch screen runs the whole printer.
Magnetic stripe encoding built in
This configuration writes ISO 7811 magnetic stripes, tracks 1, 2 and 3, high- or low-coercivity, inline as each card prints, so badges come out ready to swipe.
Contactless encoding built in
This configuration includes the factory-installed SpringCard Crazy Writer HSP encoder for 13.56 MHz contactless credentials, including ISO 14443 A and B, ISO 15693, MIFARE, and DESFire.
Card lamination included

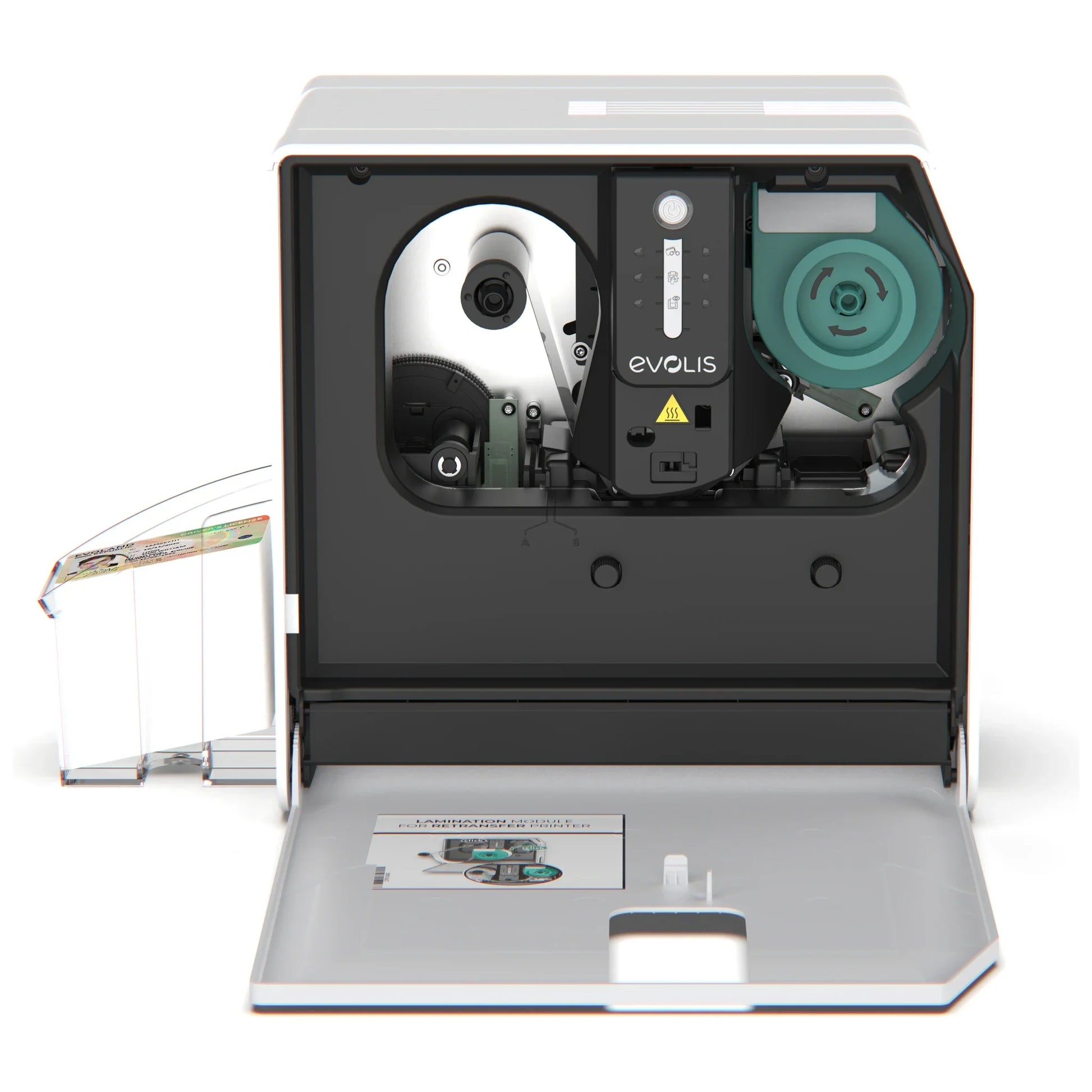

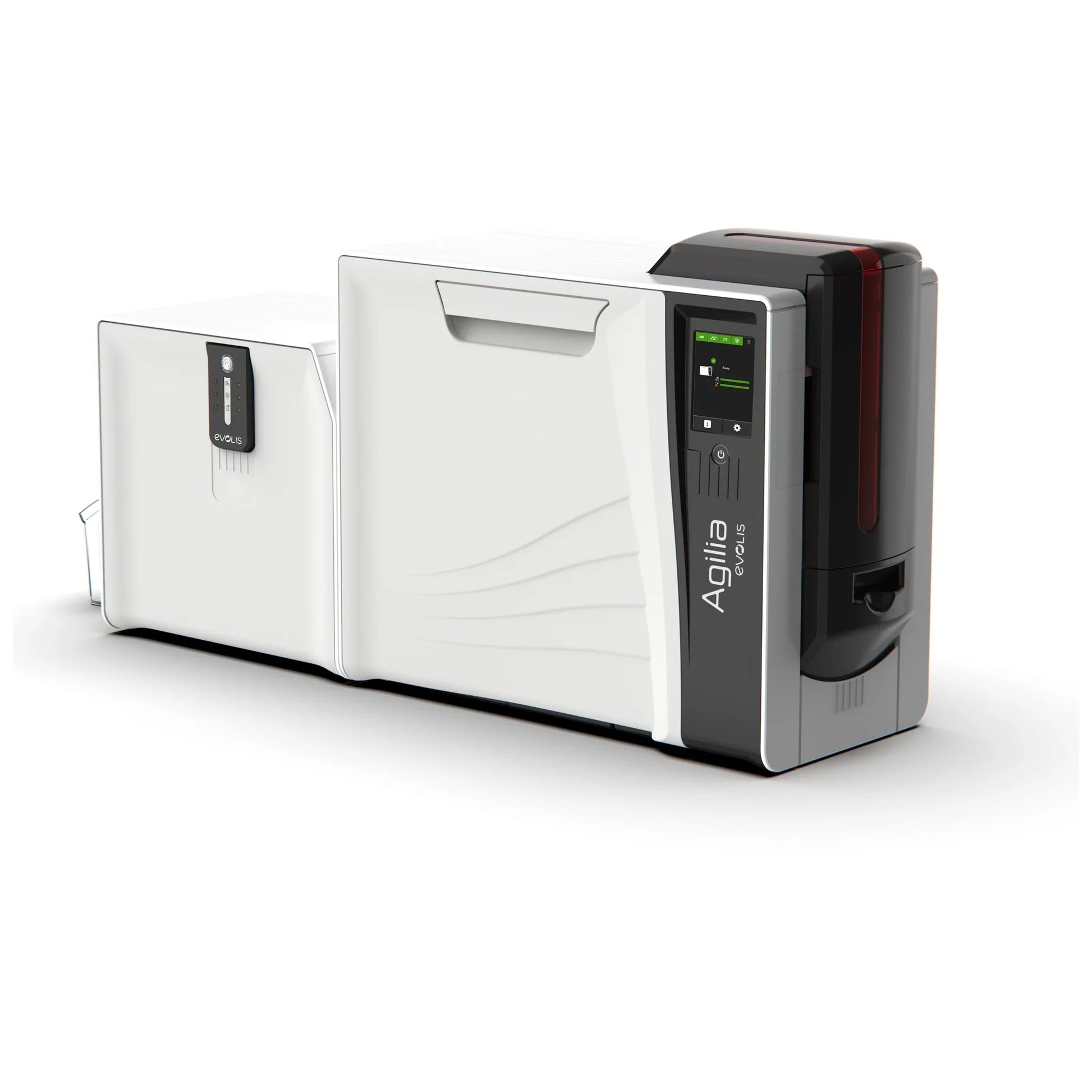

This configuration pairs the printer with the Evolis Card Lamination Module (CLM). The CLM applies clear or holographic patches and varnishes to one or both sides of the card as part of the same inline job, extending card life up to 10 years and making credentials far harder to alter or copy. Because lamination applies heat, use composite PVC/PET cards in this configuration: standard all-PVC cards can warp under laminator heat. The recommended composite cards are listed under Compatible Supplies.
Retransfer quality, production handling
The Agilia prints up to 150 single-sided or 100 dual-sided cards per hour from a 200-card input hopper with low-level detection, plus a manual feeder. Ribbons and films identify themselves automatically, and the print head carries a lifetime warranty when cleaning intervals are respected with genuine Evolis High Trust supplies. Because retransfer printing applies heat, use composite PVC/PET cards: standard all-PVC cards can warp. The recommended composite cards are listed under Compatible Supplies.
Software included
Every Agilia ships with an ID-ALL Starter Edition license for designing and printing badges on Windows and macOS, plus Evolis Premium Suite 2 drivers and the Evolis Print Service mobile app. Upgrades to higher ID-ALL editions are sold separately.
Specialist ID is an authorized Evolis dealer. The Agilia carries a 3-year printer warranty and a lifetime print head warranty with genuine Evolis High Trust ribbons and films.
Consumables
A complete list of compatible consumables for the Evolis Agilia. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| RT4F101A100 | Evolis HighTrust YMCK Color Ribbon for the Agilia, 600 Prints |
| RT5F102A100 | Evolis HighTrust YMCK-K Color Ribbon for the Agilia, 600 Prints |
| RT5F103NAAA | Evolis HighTrust YMCKI Color Ribbon for the Agilia, 600 Prints |
| RT6F105NAAA | Evolis HighTrust YMCKKI Color Ribbon for the Agilia, 400 Prints |
| RTCT107NAAA | Evolis HighTrust Black Retransfer Ribbon for the Agilia, 2400 Prints |
| Part Number | Description and Yield |
|---|---|
| RTCL100NAAA | Evolis HighTrust Clear Retransfer Film for the Agilia, 1200 Prints |
| Part Number | Description and Yield |
|---|---|
| LPS032NAA | Evolis Clear Patch Laminate - 600 Prints, 0.5 Mil for Primacy2 and Avansia Lamination ID Card Printers |
| LPS034NAA | Evolis Clear Smart Cut Patch Lamination - 600 Prints, Compatible with Primacy, Primacy2, Avansia Lamination ID Card Printers |
| LPS033NAA | Evolis Generic Holo Patch Laminate - 600 Prints, Compatible with Primacy2 and Avansia Lamination |
| LPS070NAA | Evolis Clear Patch Laminate 1.0 mil (600 Prints) |
| LPS071NAA | Evolis Clear Patch Smart Cut 1.0 mil Laminate, 600 Patches |
| LPS064NAA | Evolis HighTrust Generic Holo Patch 1.0 mil for the Avansia and Agilia CLM, 600 Patches |
| LPA073NAA | Evolis HighTrust Alternate Clear Patch 1.0 mil for the Avansia and Agilia CLM, 600 Prints |
| LPA074NAA | Evolis HighTrust Alternate Clear Patch 1.0 mil for the Avansia and Agilia CLM, 600 Prints |
| LPA072NAA | Evolis HighTrust Alternate Clear Patch 1.0 mil for the Avansia and Agilia CLM, 600 Prints |
| LVA038NAA | Evolis Clear Varnish Ribbon - 1200 Prints, Compatible with Primacy2 and Avansia Lamination |
| LVA036NAA | Evolis Continuous Varnish Hologram Ribbon - 1200 Prints, Compatible with Evolis Primacy, Agilia & Avansia Laminators |
| LVR037NAA | Evolis Generic Holographic Registered Varnish Ribbon - 1200 prints, compatible with Primacy 2, Avansia and Agilia Laminators |
| Part Number | Description |
|---|---|
| 082137 | HID FARGO UltraCard Composite HiCo Mag (500) |
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
| Part Number | Description |
|---|---|
| ACL013 | Evolis Regular Cleaning Kit for the Agilia, 5 Cards and 5 Swabs |
| ACL010 | Evolis Advanced Cleaning Kit for the Agilia, 2 T-Cards, 2 Swabs, and 2 Cards |
| ACL011 | Evolis T-Card Cleaning Kit for the Agilia, 10 T-Cards |
| ACL012 | Evolis Adhesive Card Cleaning Kit for the Agilia, 50 Cards |
| A5003 | Evolis HeadClean Kit for All Evolis Printers, 25 Swabs |
| A5070 | Evolis Laminator Adhesive Card Cleaning Kit for CLM Printers, 10 Cards |
Technical Specifications
- Print method
- Retransfer (reverse transfer): dye-sublimation color onto a clear film, thermally bonded to the card
- Print resolution
- 600 x 600 dpi
- Print sides
- Single-sided (field-upgradable to dual-sided with the AGL1-KTDS kit)
- Print speed
- Up to 150 single-sided (YMCK) or 100 dual-sided (YMCK-K) cards per hour
- Card input
- 200-card input hopper with low-level detection; manual feeder
- Card output
- 100-card output hopper; 10-card reject hopper with full-box detection
- Accepted cards
- ISO CR-80; 0.76 to 1.25 mm (30 to 50 mil); PVC, COMPOSITE PVC (recommended), PET, polycarbonate, ABS
- Magnetic stripe encoding
- ISO 7811 tracks 1, 2 and 3, high- and low-coercivity; factory-installed only; encrypted data path
- Smart card encoding
- SpringCard Crazy Writer HSP: 13.56 MHz contactless (ISO 14443 A/B, ISO 15693, MIFARE, DESFire)
- Lamination
- Evolis CLM for Agilia; single- and dual-side lamination; up to 132 laminated single-sided or 90 dual-sided cards per hour; patches and varnishes, clear or holographic
- Display
- 3.5 in (89 mm) color touch screen
- Connectivity
- USB 2.0 and 10/100 Ethernet
- Software
- ID-ALL Starter Edition license included (Windows and macOS); Evolis Premium Suite 2 drivers; Evolis Print Service mobile app; Evolis SDK
- Security
- Kensington lock support, Digital Erasing, data encryption for magnetic encoding
- Dimensions
- 14.7 in H x 21.2 in W x 8.1 in D with output hopper (373 x 538 x 205 mm); add CLM module
- Weight
- 21.2 lb (9.6 kg)
- Warranty
- 3 years printer; lifetime print head (with Evolis High Trust supplies); 3 years CLM
Compatible Supplies
Genuine Evolis ribbons and supplies matched to the Evolis Agilia.
