Professional credentials, printed at your desk

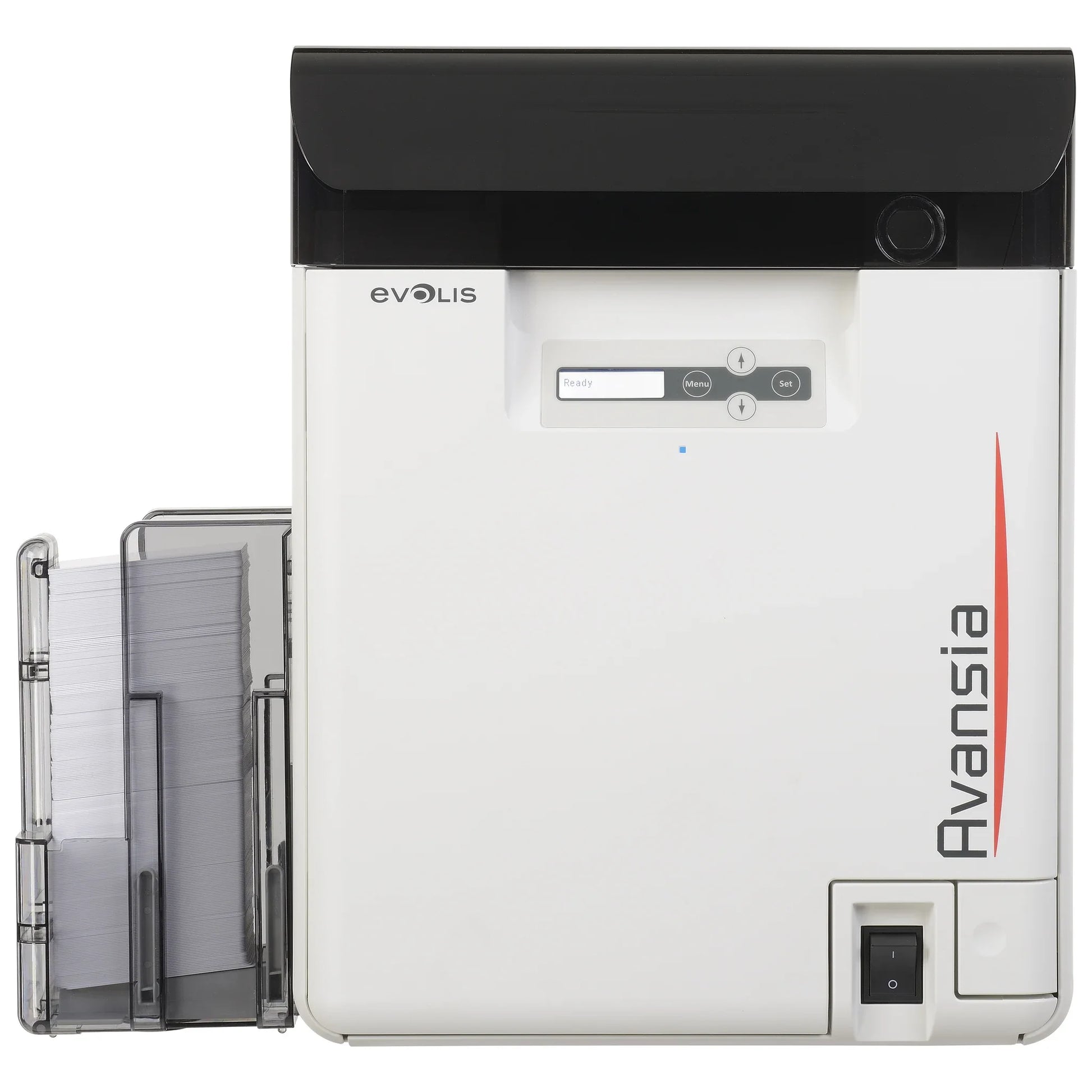

The Evolis Avansia is a dual-sided retransfer ID card printer built for high-security, high-volume card programs. It prints at a true 600 dpi with over-the-edge coverage: the image goes onto a clear transfer film first, then the film is thermally bonded to the card, so chips, uneven surfaces, and non-PVC materials all come out with a flawless, durable finish.
Magnetic stripe encoding built in
This configuration writes ISO 7811 magnetic stripes, tracks 1, 2 and 3, high- or low-coercivity, inline as each card prints, so badges come out ready to swipe.
Card lamination included

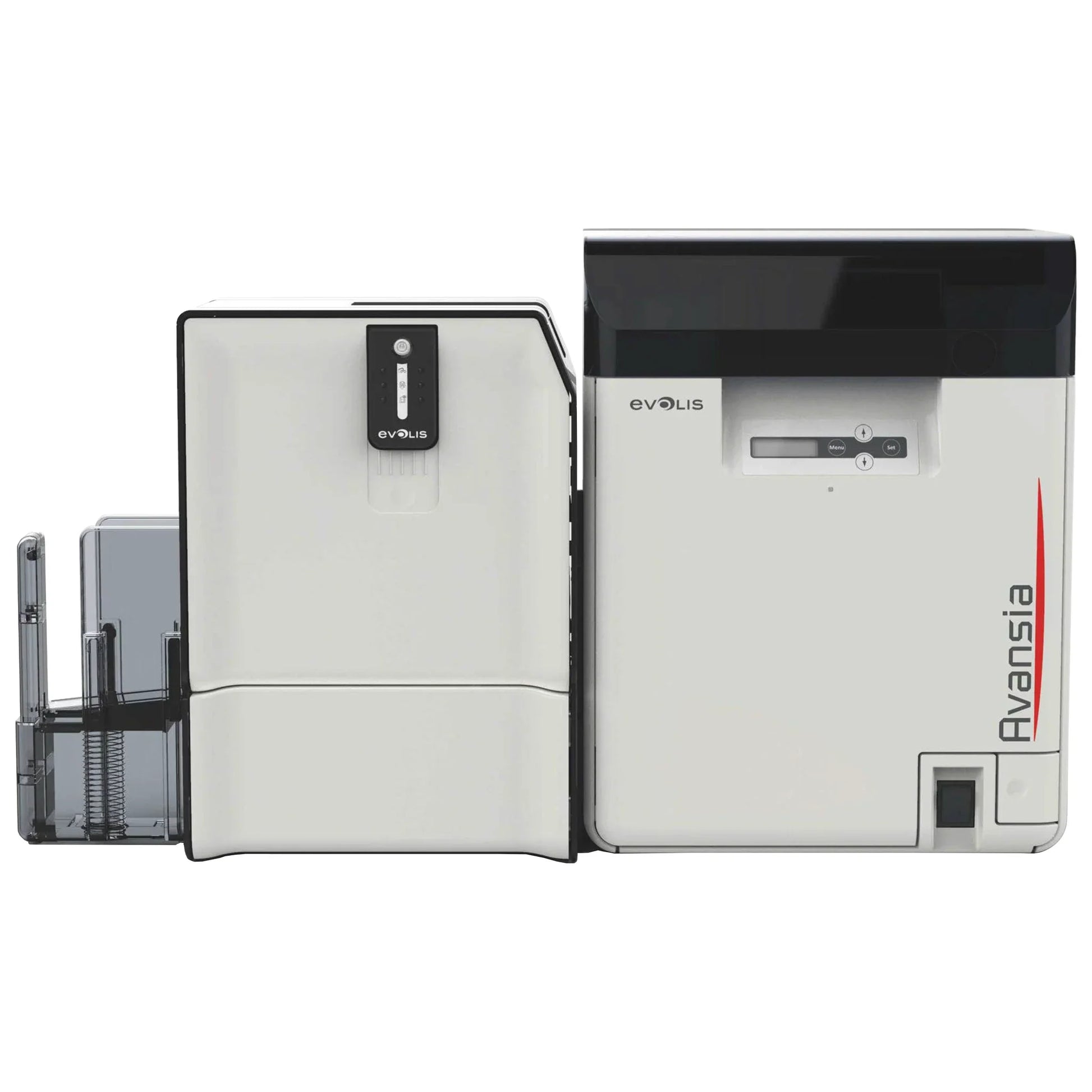

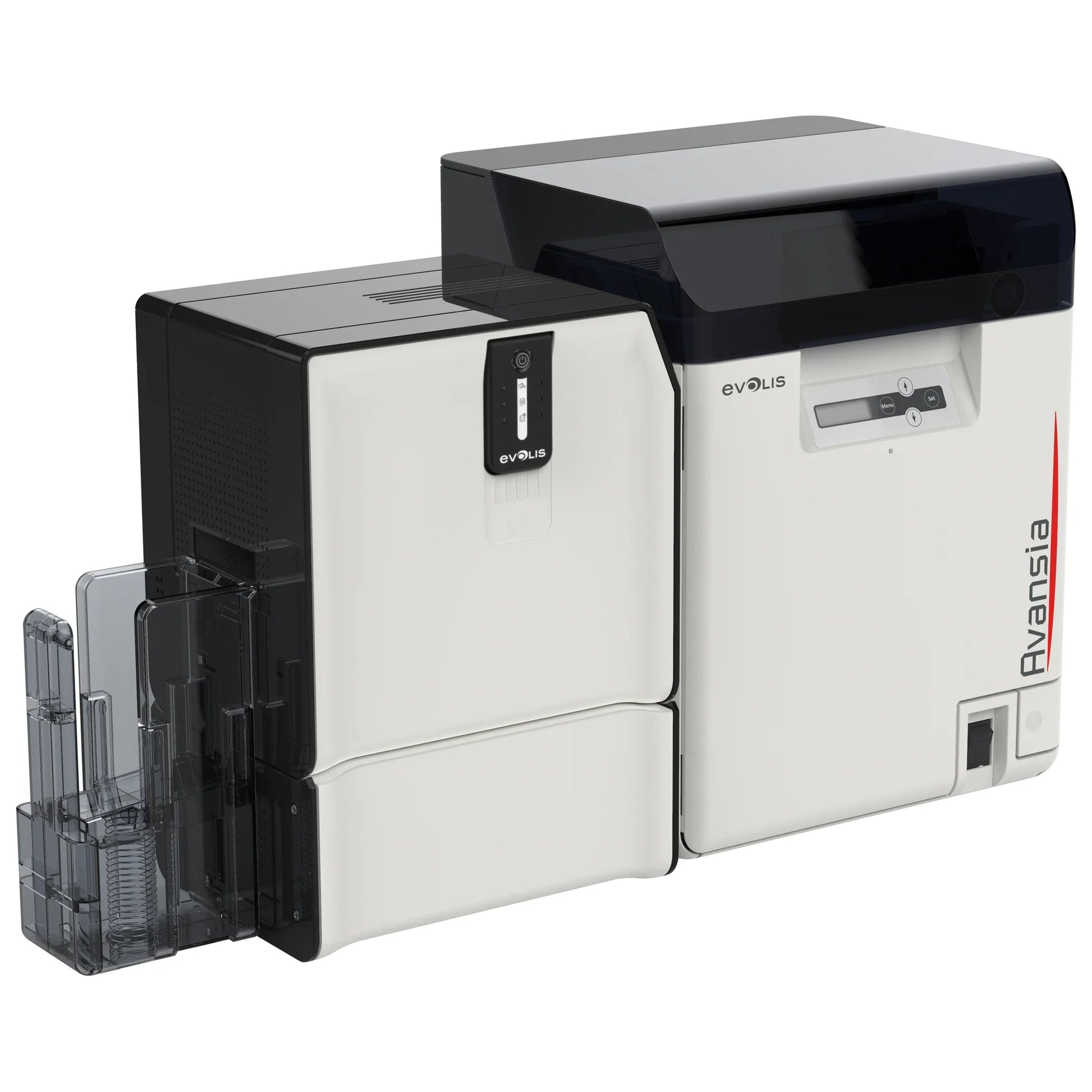

This configuration pairs the printer with the Evolis Card Lamination Module (CLM). The CLM applies clear or holographic patches and varnishes to one or both sides of the card as part of the same inline job, extending card life up to 10 years and making credentials far harder to alter or copy. Because lamination applies heat, use composite PVC/PET cards in this configuration: standard all-PVC cards can warp under laminator heat. The recommended composite cards are listed under Compatible Supplies.
Built for secure issuance
The Avansia feeds from a 250-card hopper into a 250-card output stacker, prints up to 144 single-sided or 96 dual-sided cards per hour, and holds cards for two-sided printing without operator handling. An RFID locking key controls ribbon authentication, and a mechanical locking system is available. Because retransfer printing applies heat, use composite PVC/PET cards: standard all-PVC cards can warp. The recommended composite cards are listed under Compatible Supplies.
Software included
Every Avansia ships with a CardPresso XXS software license for badge design and printing, plus Windows drivers. Evolis High Trust ribbons for the Avansia ship with an electronic key that must be installed in the printer; without the key, the Avansia will not print.
Specialist ID is an authorized Evolis dealer. The Avansia carries a 3-year printer warranty and a lifetime print head warranty with genuine Evolis High Trust ribbons and films.
Consumables
A complete list of compatible consumables for the Evolis Avansia. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| RT4F010AAA | Evolis Avansia YMCK Ribbon |
| RT5F011AAA | Evolis Avansia YMCKK Ribbon |
| RT5F012NAA | Evolis Avansia YMCKI Ribbon |
| RT5F013NAA | Evolis Avansia YMCKH Ribbon |
| RT5F014NAA | Evolis Avansia YMCFK Ribbon |
| Part Number | Description and Yield |
|---|---|
| RTCL009NAA | Evolis Avansia Retransfer Film |
| Part Number | Description and Yield |
|---|---|
| LPS032NAA | Evolis Clear Patch, 0.5 Mil |
| LPS034NAA | Evolis Clear Smart Cut Patch |
| LPS033NAA | Evolis Holo Patch Laminate |
| LPS070NAA | Evolis Clear Patch, 1.0 Mil |
| LPS071NAA | Evolis Clear Patch Laminate |
| LPS064NAA | Evolis Holo Patch, 1.0 Mil |
| LPA073NAA | Evolis Avansia Smart/Full Patch |
| LPA074NAA | Evolis Avansia Smart/Mag Patch |
| LPA072NAA | Evolis Avansia Full/Mag Patch |
| LVA038NAA | Evolis Clear Varnish Ribbon |
| LVA036NAA | Evolis Hologram Varnish Ribbon |
| LVR037NAA | Evolis Registered Holo Varnish |
| Part Number | Description |
|---|---|
| 082137 | HID FARGO UltraCard Composite HiCo Mag (500) |
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
Technical Specifications
- Print method
- Retransfer (reverse transfer): dye-sublimation color onto a clear film, thermally bonded to the card
- Print resolution
- 600 dpi print head (23.6 dots/mm)
- Print sides
- Dual-sided standard (front and back printed automatically)
- Print speed
- Up to 144 single-sided (YMCK) or 96 dual-sided (YMCKK) cards per hour
- Card input
- 250-card feeder (30 mil)
- Card output
- 250-card output hopper; 30-card reject tray with encoding options
- Accepted cards
- ISO CR-80; 0.76 mm (30 mil); PVC, COMPOSITE PVC (recommended), PET-F, PET-G, polycarbonate, ABS
- Magnetic stripe encoding
- ISO 7811 tracks 1, 2 and 3, high- and low-coercivity (factory-installed)
- Lamination
- Card Lamination Module for Avansia; single- and dual-side lamination; clear and holographic patches and varnishes
- Display
- 2-line LCD with status LED
- Connectivity
- USB 2.0 and 10/100 Ethernet
- Software
- CardPresso XXS license included; Windows drivers; Evolis SDK
- Security
- RFID ribbon locking key, Kensington lock support, optional mechanical lock
- Dimensions
- 17.16 in H x 13.38 in W x 11.69 in D (436 x 340 x 297 mm); add CLM module
- Weight
- 44.09 lb (20 kg)
- Warranty
- 3 years printer; lifetime print head (with Evolis High Trust supplies); 3 years CLM
Compatible Supplies
Genuine Evolis ribbons and supplies matched to the Evolis Avansia.
Evolis RT4F010AAA HighTrust YMCK Color Ribbon for the Avansia, 500 Prints
Evolis RTCL009NAA HighTrust Clear Retransfer Film for the Avansia, 500 Prints
Evolis LPS070NAA Clear Patch Laminate 1.0 mil (600 Prints)
