Professional credentials, printed at your desk

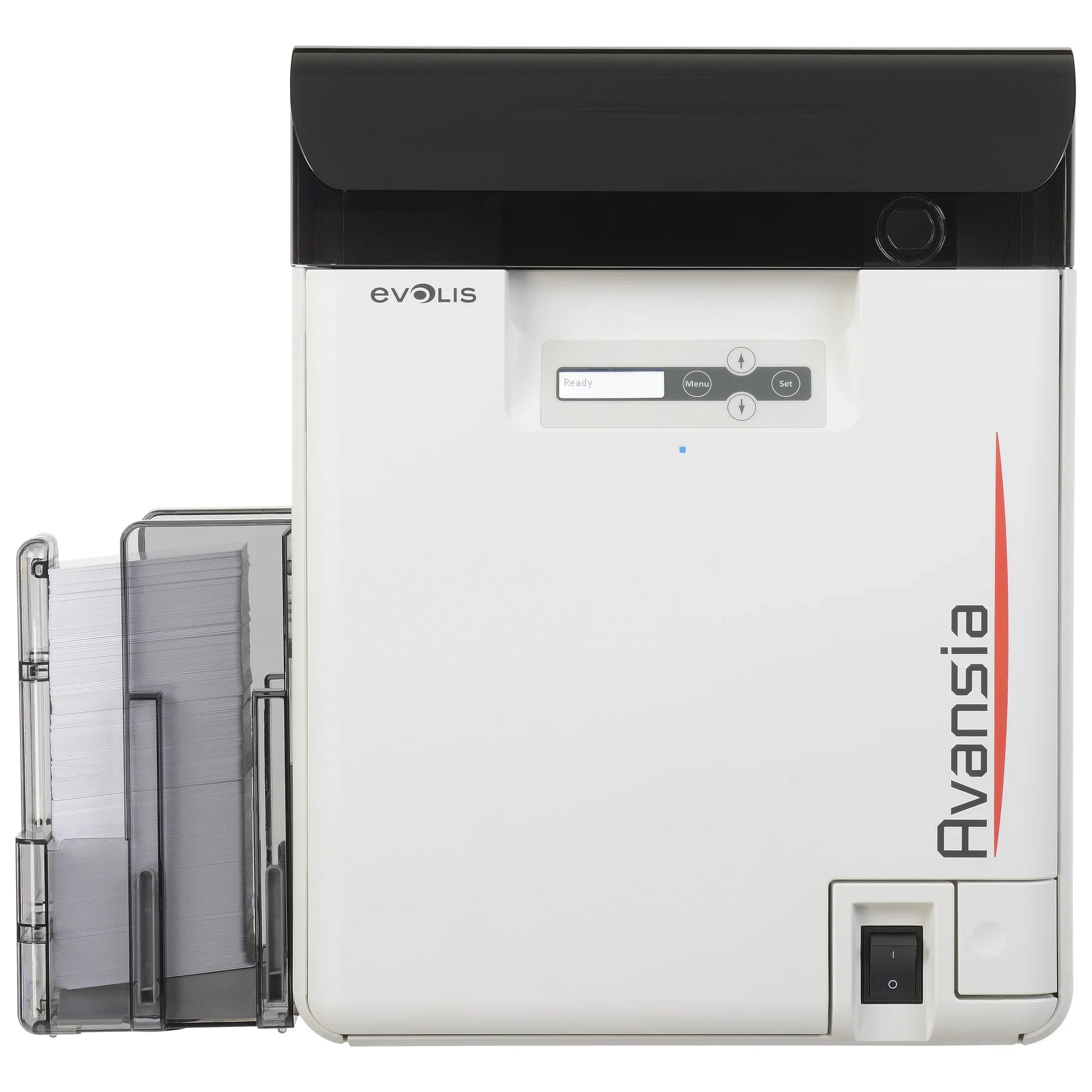

The Evolis Avansia is a dual-sided retransfer ID card printer built for high-security, high-volume card programs. It prints at a true 600 dpi with over-the-edge coverage: the image goes onto a clear transfer film first, then the film is thermally bonded to the card, so chips, uneven surfaces, and non-PVC materials all come out with a flawless, durable finish.
Magnetic stripe encoding built in
This configuration writes ISO 7811 magnetic stripes, tracks 1, 2 and 3, high- or low-coercivity, inline as each card prints, so badges come out ready to swipe.
Contact and contactless encoding built in
This configuration includes the factory-installed Evolis Elyctis Dual encoder (IDENTIV chipset). One unit personalizes both contact smart cards (PC/SC, EMV 2000-1) and 13.56 MHz contactless credentials, including ISO 14443 A and B, ISO 15693, MIFARE, and DESFire.
Card lamination included

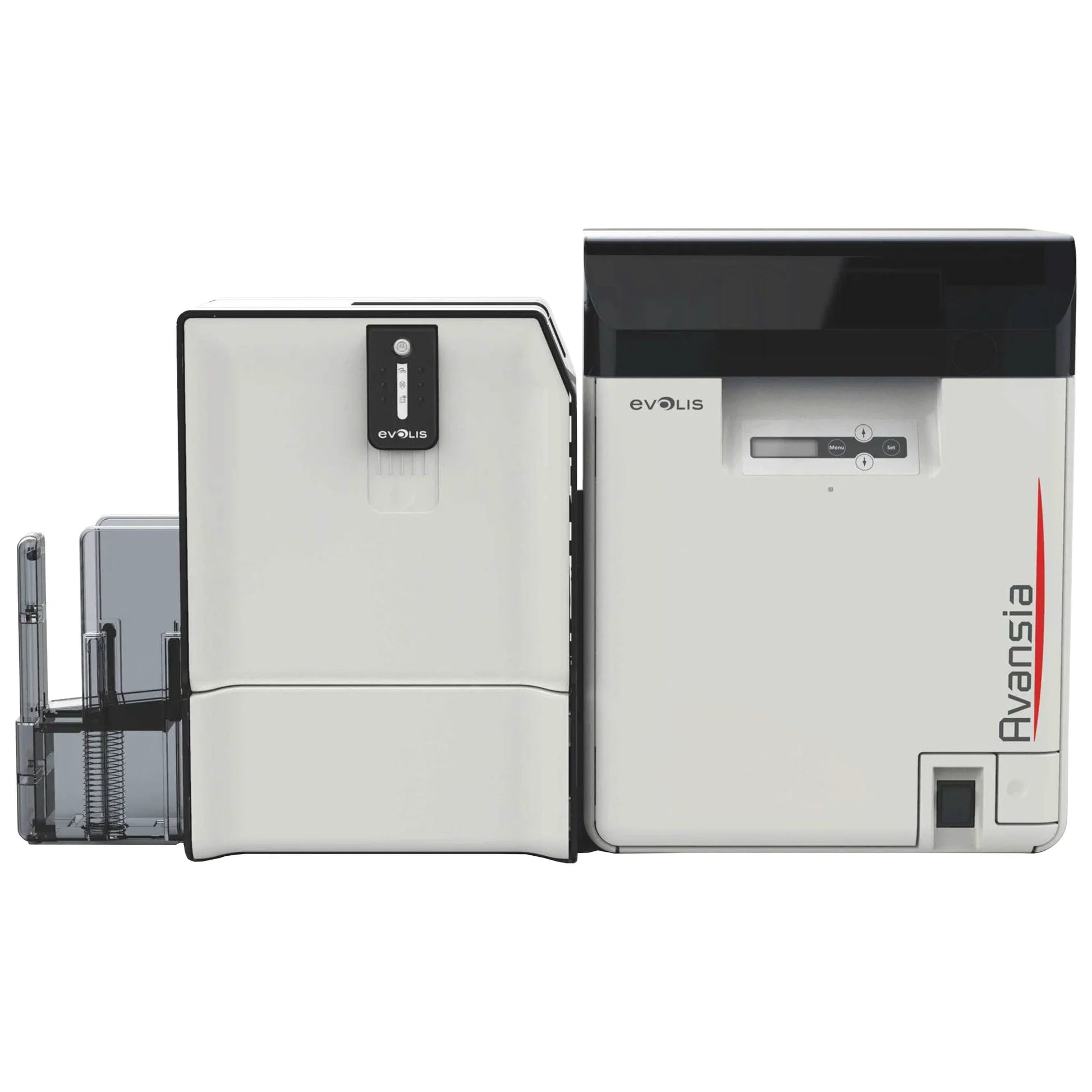

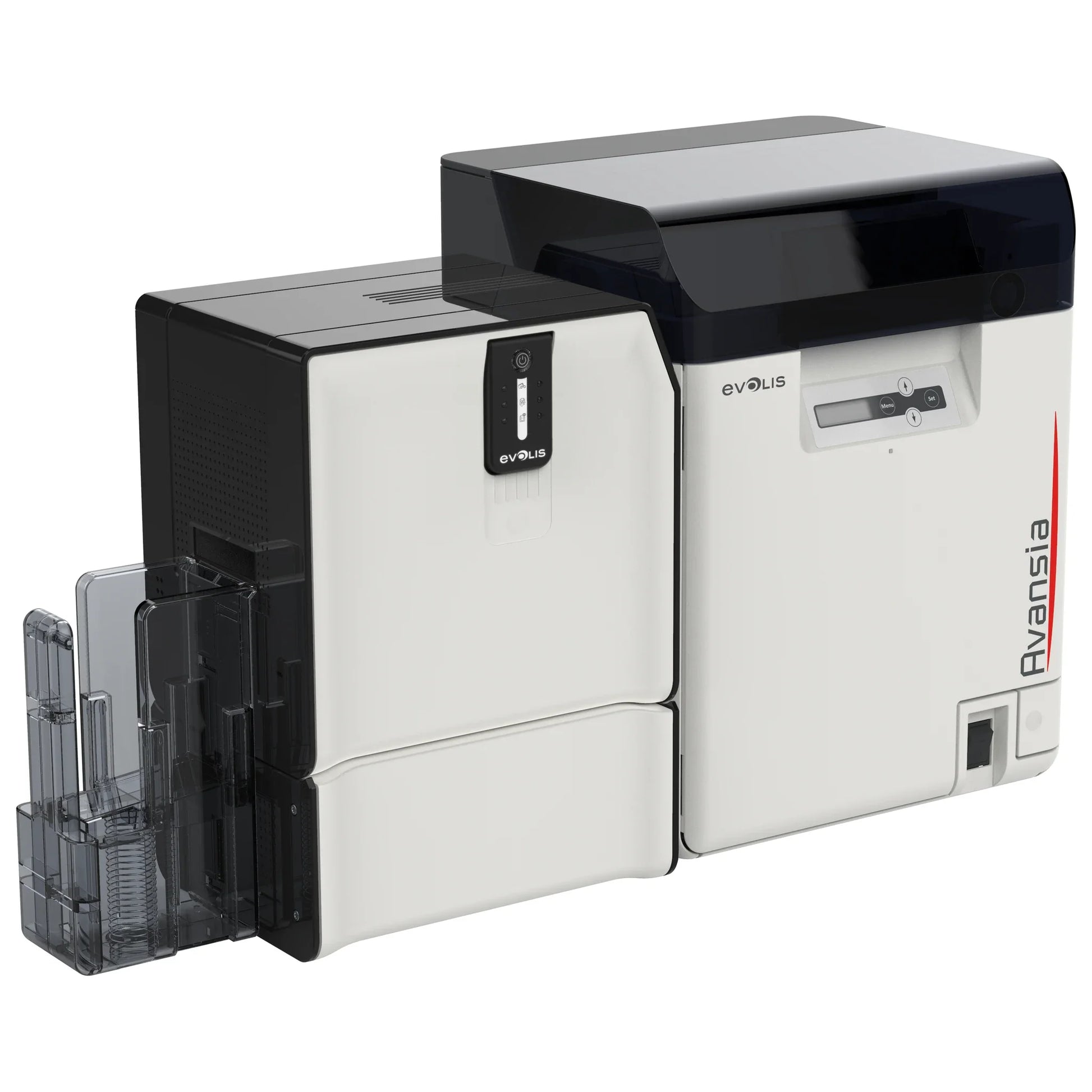

This configuration pairs the printer with the Evolis Card Lamination Module (CLM). The CLM applies clear or holographic patches and varnishes to one or both sides of the card as part of the same inline job, extending card life up to 10 years and making credentials far harder to alter or copy. Because lamination applies heat, use composite PVC/PET cards in this configuration: standard all-PVC cards can warp under laminator heat. The recommended composite cards are listed under Compatible Supplies.
Built for secure issuance
The Avansia feeds from a 250-card hopper into a 250-card output stacker, prints up to 144 single-sided or 96 dual-sided cards per hour, and holds cards for two-sided printing without operator handling. An RFID locking key controls ribbon authentication, and a mechanical locking system is available. Because retransfer printing applies heat, use composite PVC/PET cards: standard all-PVC cards can warp. The recommended composite cards are listed under Compatible Supplies.
Software included
Every Avansia ships with a CardPresso XXS software license for badge design and printing, plus Windows drivers. Evolis High Trust ribbons for the Avansia ship with an electronic key that must be installed in the printer; without the key, the Avansia will not print.
Specialist ID is an authorized Evolis dealer. The Avansia carries a 3-year printer warranty and a lifetime print head warranty with genuine Evolis High Trust ribbons and films.
Consumables
A complete list of compatible consumables for the Evolis Avansia. Click any part number for details.
| Part Number | Description and Yield |
|---|---|
| RT4F010AAA | Evolis HighTrust YMCK Color Ribbon for the Avansia, 500 Prints |
| RT5F011AAA | Evolis HighTrust YMCKK Color Ribbon for the Avansia, 400 Prints |
| RT5F012NAA | Evolis HighTrust YMCKI Color Ribbon for the Avansia, 400 Prints |
| RT5F013NAA | Evolis HighTrust YMCKH Color Ribbon for the Avansia, 400 Prints |
| RT5F014NAA | Evolis HighTrust YMCFK Color Ribbon for the Avansia, 400 Prints |
| Part Number | Description and Yield |
|---|---|
| RTCL009NAA | Evolis HighTrust Clear Retransfer Film for the Avansia, 500 Prints |
| Part Number | Description and Yield |
|---|---|
| LPS032NAA | Evolis Clear Patch Laminate - 600 Prints, 0.5 Mil for Primacy2 and Avansia Lamination ID Card Printers |
| LPS034NAA | Evolis Clear Smart Cut Patch Lamination - 600 Prints, Compatible with Primacy, Primacy2, Avansia Lamination ID Card Printers |
| LPS033NAA | Evolis Generic Holo Patch Laminate - 600 Prints, Compatible with Primacy2 and Avansia Lamination |
| LPS070NAA | Evolis Clear Patch Laminate 1.0 mil (600 Prints) |
| LPS071NAA | Evolis Clear Patch Smart Cut 1.0 mil Laminate, 600 Patches |
| LPS064NAA | Evolis HighTrust Generic Holo Patch 1.0 mil for the Avansia and Agilia CLM, 600 Patches |
| LPA073NAA | Evolis HighTrust Alternate Clear Patch 1.0 mil for the Avansia and Agilia CLM, 600 Prints |
| LPA074NAA | Evolis HighTrust Alternate Clear Patch 1.0 mil for the Avansia and Agilia CLM, 600 Prints |
| LPA072NAA | Evolis HighTrust Alternate Clear Patch 1.0 mil for the Avansia and Agilia CLM, 600 Prints |
| LVA038NAA | Evolis Clear Varnish Ribbon - 1200 Prints, Compatible with Primacy2 and Avansia Lamination |
| LVA036NAA | Evolis Continuous Varnish Hologram Ribbon - 1200 Prints, Compatible with Evolis Primacy, Agilia & Avansia Laminators |
| LVR037NAA | Evolis Generic Holographic Registered Varnish Ribbon - 1200 prints, compatible with Primacy 2, Avansia and Agilia Laminators |
| Part Number | Description |
|---|---|
| 082137 | HID FARGO UltraCard Composite HiCo Mag (500) |
| SPID-8670-WHITE | Specialist ID Composite PVC/PET Cards, CR-80 30mil |
| Part Number | Description |
|---|---|
| ACL006 | Evolis Adhesive Card Cleaning Kit for the Avansia, 5 Cards |
| ACL007 | Evolis Dry Swab Cleaning Kit for the Avansia, 3 Swabs |
| A5003 | Evolis HeadClean Kit for All Evolis Printers, 25 Swabs |
| A5004 | Evolis Pre-Saturated Cleaning Wipes for Card Printers - 60 Count |
| A5070 | Evolis Laminator Adhesive Card Cleaning Kit for CLM Printers, 10 Cards |
Technical Specifications
- Print method
- Retransfer (reverse transfer): dye-sublimation color onto a clear film, thermally bonded to the card
- Print resolution
- 600 dpi print head (23.6 dots/mm)
- Print sides
- Dual-sided standard (front and back printed automatically)
- Print speed
- Up to 144 single-sided (YMCK) or 96 dual-sided (YMCKK) cards per hour
- Card input
- 250-card feeder (30 mil)
- Card output
- 250-card output hopper; 30-card reject tray with encoding options
- Accepted cards
- ISO CR-80; 0.76 mm (30 mil); PVC, COMPOSITE PVC (recommended), PET-F, PET-G, polycarbonate, ABS
- Magnetic stripe encoding
- ISO 7811 tracks 1, 2 and 3, high- and low-coercivity (factory-installed)
- Smart card encoding
- Evolis Elyctis Dual (IDENTIV): contact + 13.56 MHz contactless (ISO 14443 A/B, ISO 15693, MIFARE, DESFire)
- Lamination
- Card Lamination Module for Avansia; single- and dual-side lamination; clear and holographic patches and varnishes
- Display
- 2-line LCD with status LED
- Connectivity
- USB 2.0 and 10/100 Ethernet
- Software
- CardPresso XXS license included; Windows drivers; Evolis SDK
- Security
- RFID ribbon locking key, Kensington lock support, optional mechanical lock
- Dimensions
- 17.16 in H x 13.38 in W x 11.69 in D (436 x 340 x 297 mm); add CLM module
- Weight
- 44.09 lb (20 kg)
- Warranty
- 3 years printer; lifetime print head (with Evolis High Trust supplies); 3 years CLM
Compatible Supplies
Genuine Evolis ribbons and supplies matched to the Evolis Avansia.
