MSRP: $11,530.00
$9,224.00Part #QTM306GRH-BS00K
Overview
Professional credentials, printed at your desk

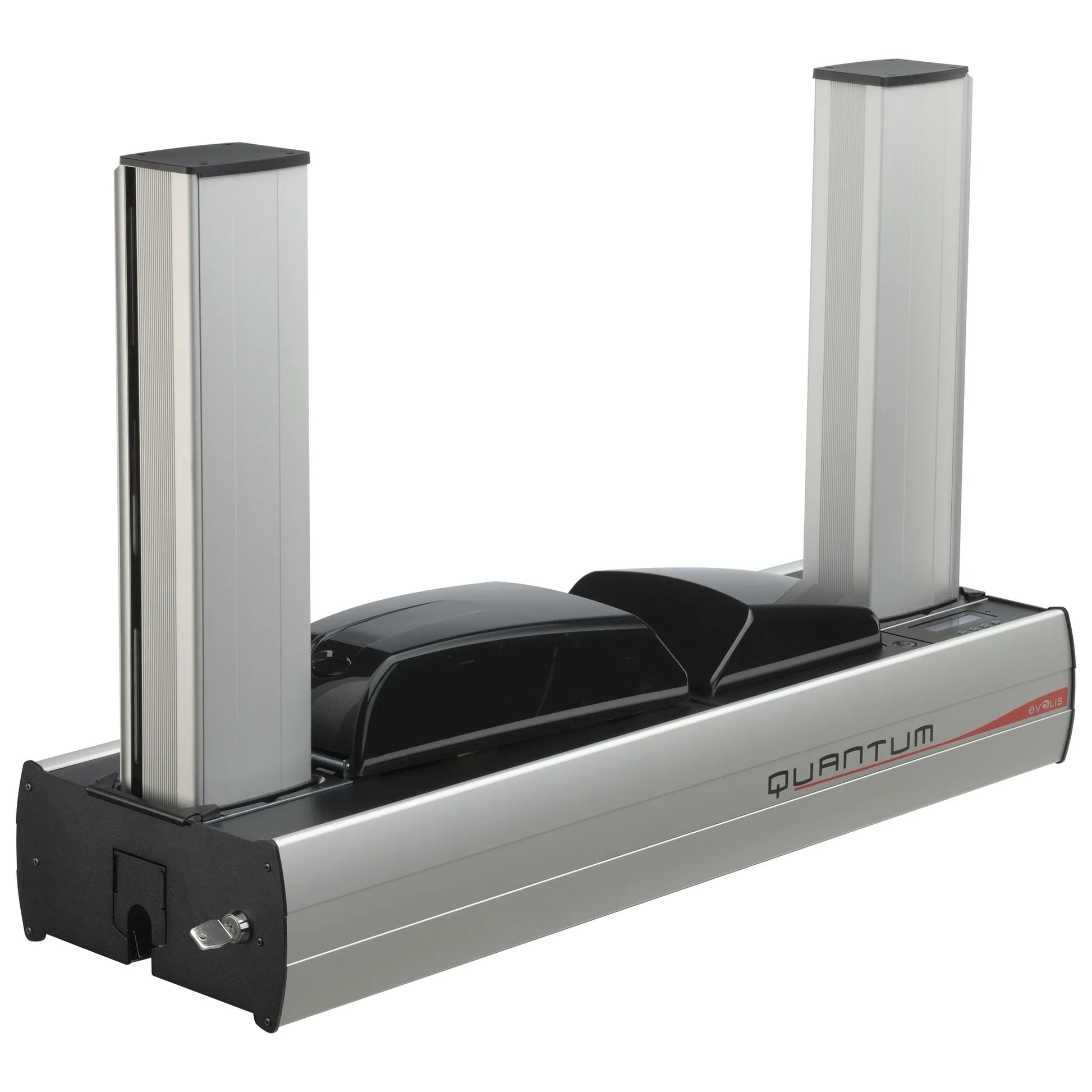

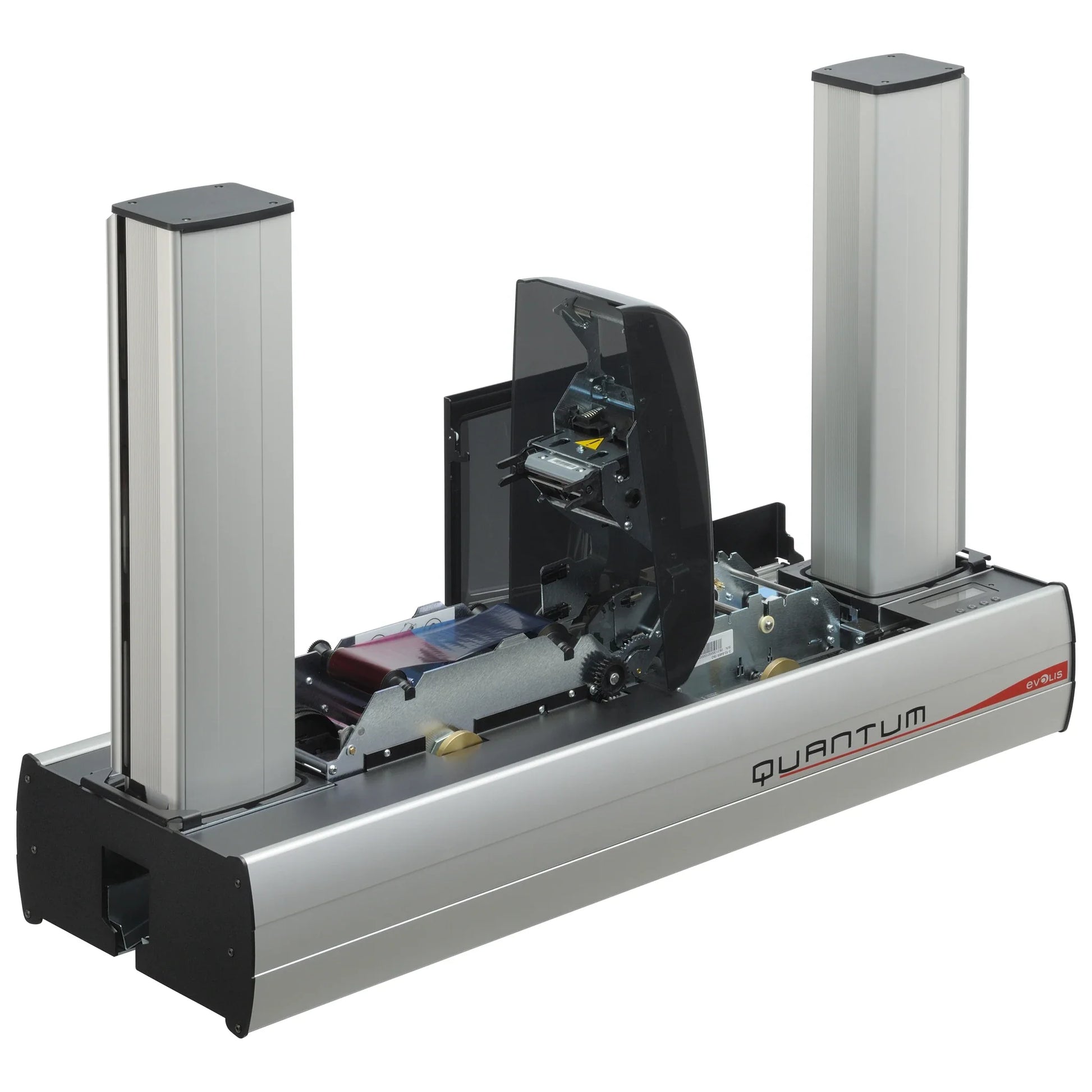

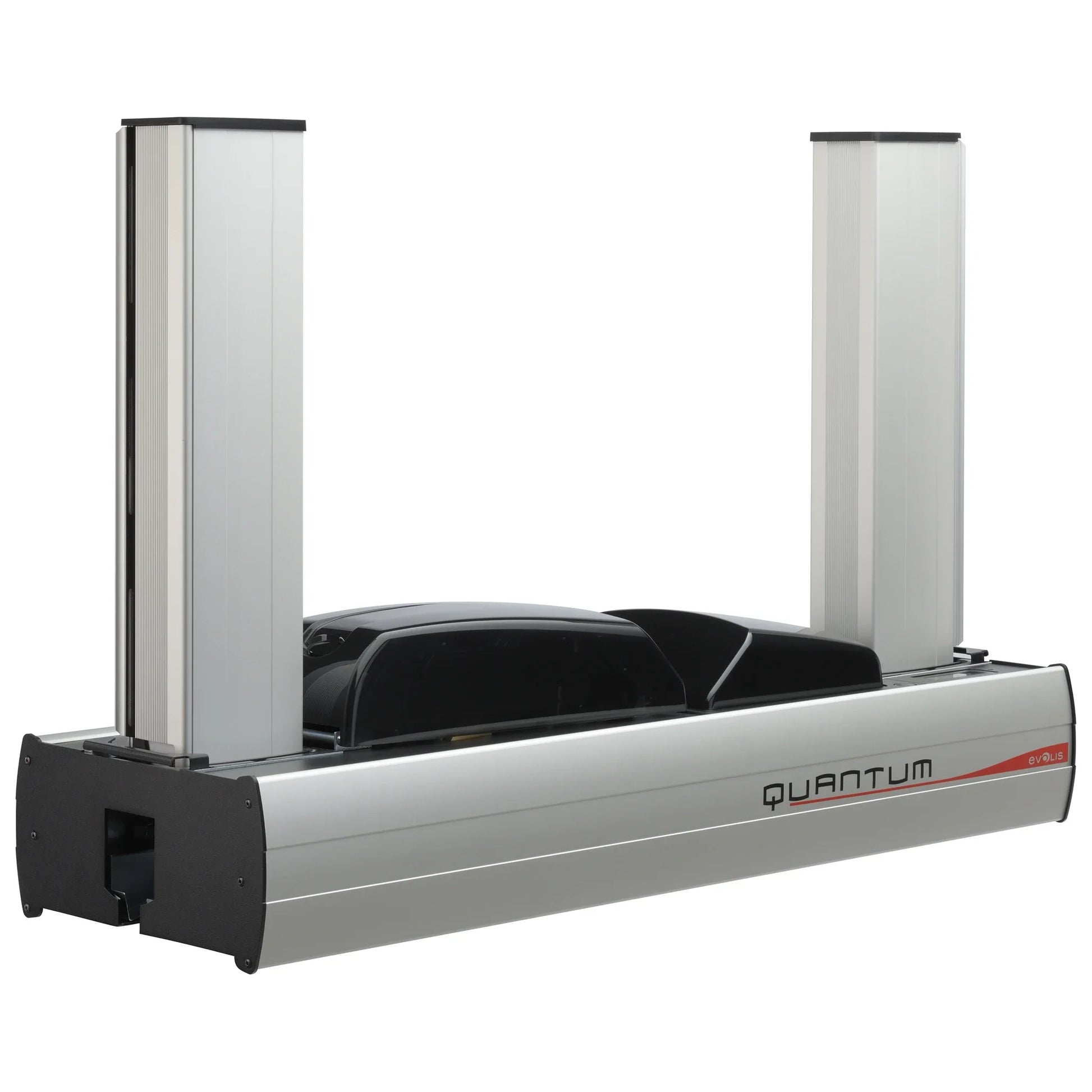

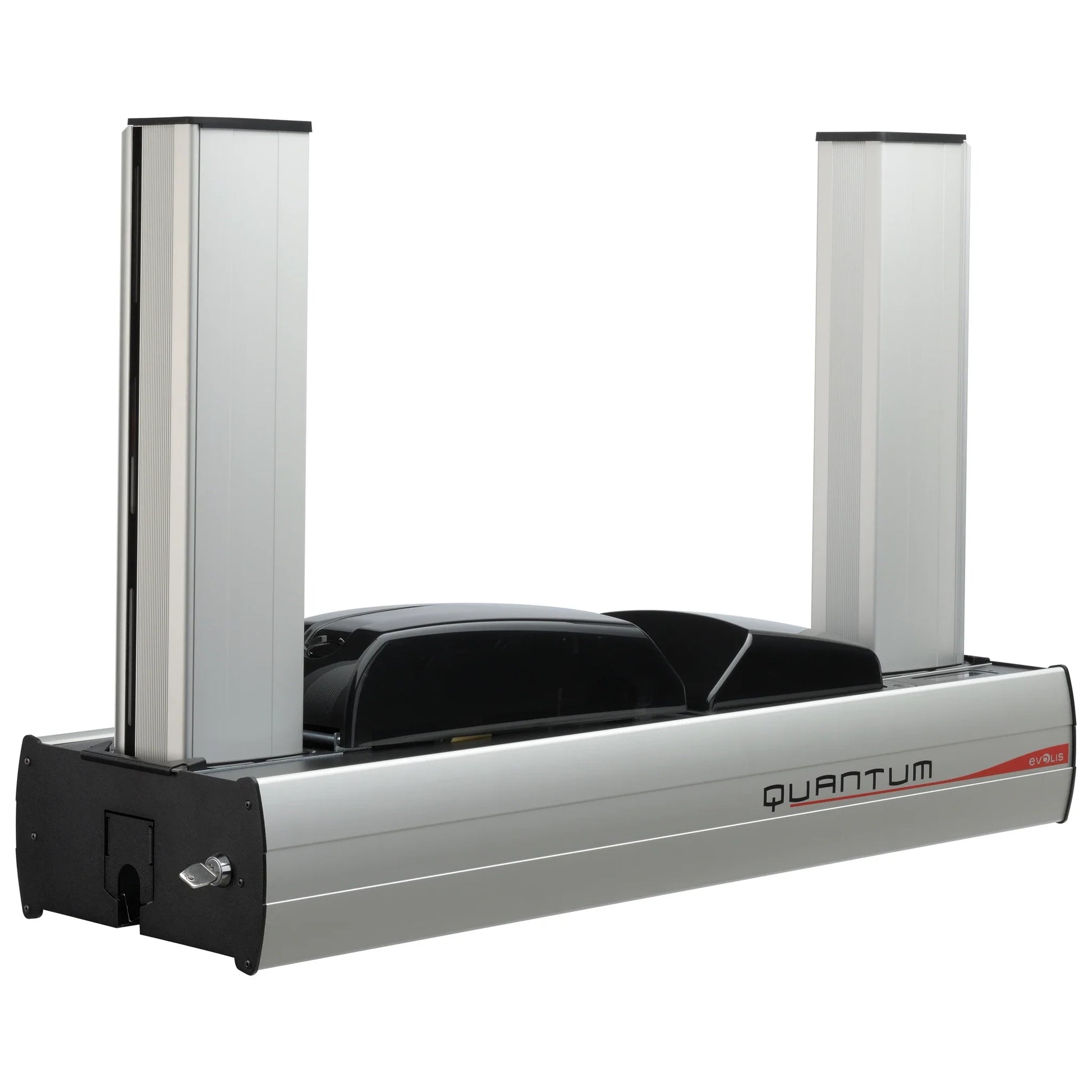

The Evolis Quantum 2 is a centralized, high-volume ID card printer built for bureaus and card programs that issue thousands of cards at a time. Interchangeable 500-card input and output hoppers keep production running, an aluminium body stands up to continuous duty, and dual-sided direct-to-card printing runs at up to 150 color or 1,000 monochrome cards per hour.
Secured version
This version adds a centralized locking system that locks access to the printer, ribbons, blank cards, and reject cards, for issuance environments where blank card stock and consumables must stay under lock.
Made for card bureaus
The Quantum 2 ships with a Mag ISO magnetic stripe encoder, a smart card contact station, and a connecting panel with a mounting area for integrating your own contactless encoding units, all standard. A patented reversible encoding module writes magnetic stripes and contact smart cards whether cards feed face-up or face-down. Optional Production and Backup packs add a spare hopper, cleaning rollers, and a spare print head to keep the line moving.
Software included
Every Quantum 2 ships with an ID-ALL Starter Edition license for designing and printing badges, plus Windows, macOS, and Linux drivers and the Evolis SDK for bureau integrations.
Specialist ID is an authorized Evolis dealer. The Quantum 2 carries a 1-year printer and print head warranty (limited to 500,000 insertions) with genuine Evolis High Trust ribbons.
Reference
Consumables
A complete list of compatible consumables for the Evolis Quantum 2. Click any part number for details.
| Part Number | Description and Yield |
|---|---|

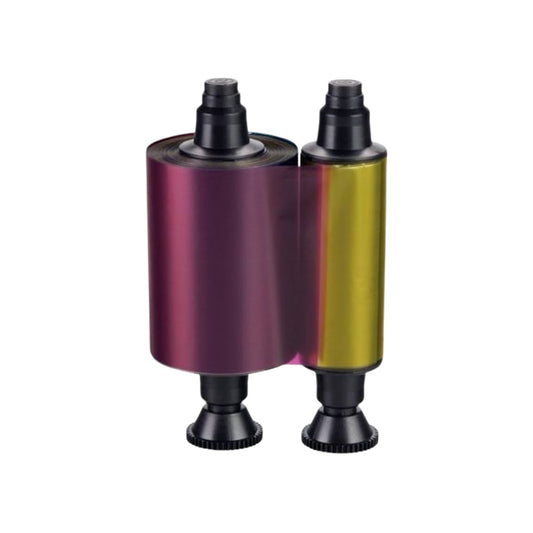

| R3511 | Evolis HighTrust YMCKO Color Ribbon for the Quantum 2, 500 Prints |

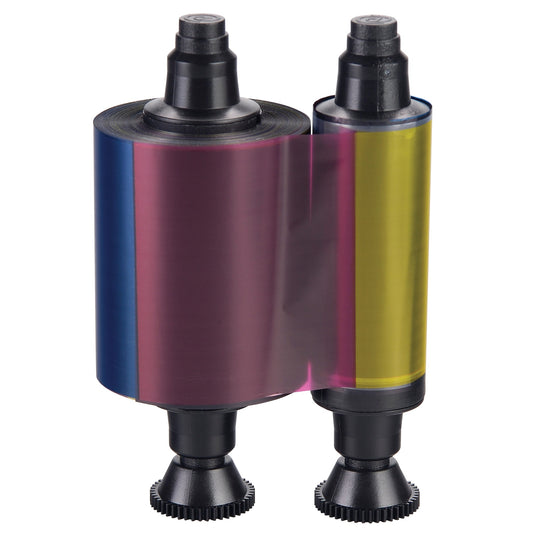

| R3013 | Evolis HighTrust 1/2 YMCKO Color Ribbon for the Quantum 2 and Securion, 400 Prints |

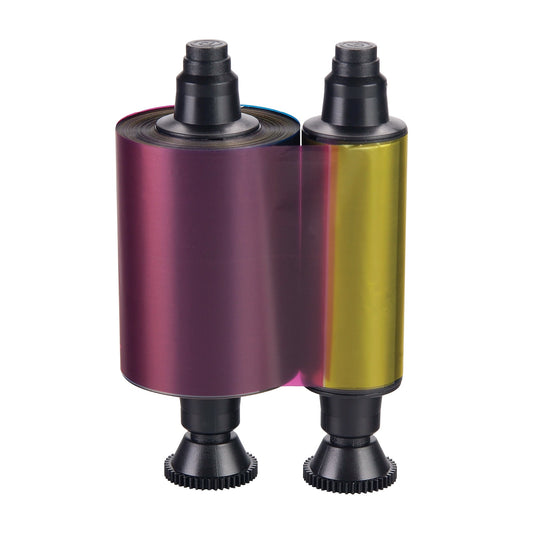

| R3514 | Evolis HighTrust YMCKOK Color Ribbon for the Quantum 2 and Securion, 500 Prints |
| R3012 | Evolis HighTrust KO Black Ribbon for the Quantum 2 and Securion, 500 Prints |

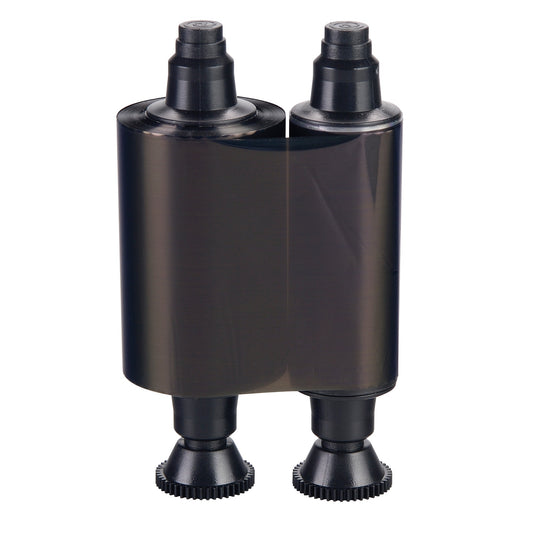

| R2131 | Evolis HighTrust Black Monochrome Ribbon for the Quantum 2, 3000 Prints |
| Part Number | Description and Yield |
|---|---|
| R2012 | Evolis HighTrust Blue Monochrome Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R2013 | Evolis HighTrust Red Monochrome Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R2014 | Evolis HighTrust Green Monochrome Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R2015 | Evolis HighTrust White Monochrome Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R2016 | Evolis HighTrust Metallic Gold Monochrome Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R2017 | Evolis HighTrust Metallic Silver Monochrome Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R2018 | Evolis Scratch Off Monochrome Ribbon - 1000 Prints |
| R2029 | Evolis HighTrust BlackFlex Monochrome Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R2030 | Evolis HighTrust White Signature Ribbon for the Quantum 2 and Securion, 1000 Prints |
| R4002 | Evolis HighTrust Hologram Varnish Ribbon for the Quantum 2, 350 Prints |
| Part Number | Description |
|---|---|
| SPID-9790-WHITE | Specialist ID HiCo Mag Stripe PVC Cards, CR-80 30mil |
| SPID-9630 | Specialist ID Blank White PVC Cards, CR-80 30mil |
| Part Number | Description |
|---|---|

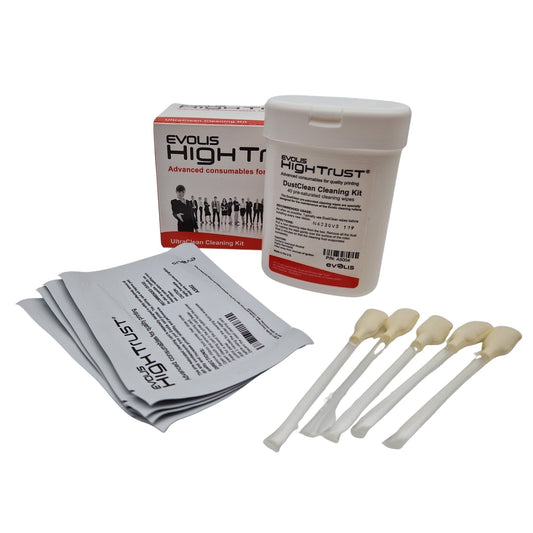

| A5011 | Evolis Cleaning Kit |

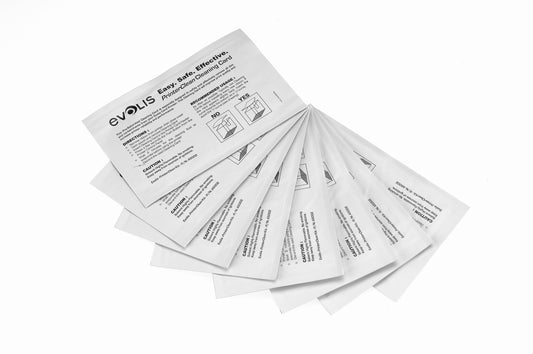

| A5002 | Evolis Printerclean Cleaning Kit, 50 Cleaning Cards & Swabs, |
| A5003 | Evolis HeadClean Kit for All Evolis Printers, 25 Swabs |
| A5004 | Evolis Pre-Saturated Cleaning Wipes for Card Printers - 60 Count |
| A5021 | Evolis UltraClean Kit for Quantum 2, Tattoo RW, and Securion, 5 Cards, 5 Swabs, 10 Wipes |
| A5024 | Evolis DustClean Kit for Zenius, Primacy, Avansia, and More, 40 Wipes |
The detail
Technical Specifications
- Print method
- Direct-to-card dye-sublimation / resin thermal transfer
- Print resolution
- 300 x 300 dpi
- Print sides
- Dual-sided (front and back printed automatically)
- Print speed
- Up to 150 color (YMCKO single-sided), 115 color dual-sided (YMCKO-K), or 1,000 monochrome cards per hour
- Card input
- Detachable, interchangeable 500-card input feeder
- Card output
- 500-card output stacker; 20-card reject hopper
- Accepted cards
- ISO CR-80; 0.76 to 1 mm (30 to 40 mil); PVC, composite PVC, PET (monochrome black only)
- Magnetic stripe encoding
- ISO 7811 tracks 1, 2 and 3, high- and low-coercivity; JIS Type II; patented reversible encoding module
- Smart card encoding
- Contact station standard; connecting panel and mounting area for user-integrated contactless units; optional Evolis Elyctis, SpringCard, and OMNIKEY modules
- Locking
- Centralized locking system securing printer, ribbons, and card stock
- Display
- 2-line LCD with status LEDs
- Connectivity
- USB and 10/100 Ethernet
- Software
- ID-ALL Starter Edition license included; drivers for Windows, macOS, and Linux; Evolis SDK
- Dimensions
- 22.32 in H x 11.81 in W x 33.46 in D with hoppers (567 x 300 x 850 mm)
- Weight
- 47.8 lb (21.7 kg)
- Warranty
- 1 year printer and original print head, limited to 500,000 insertions (with Evolis High Trust ribbons)
Stock up
Compatible Supplies
Genuine Evolis ribbons and supplies matched to the Evolis Quantum 2.
Evolis R3511 HighTrust YMCKO Color Ribbon for the Quantum 2, 500 Prints
Regular price
$179.00
Sale price
$143.20
Standard CR80 30mil Cards w/ HiCo Mag Stripe
Regular price
From $19.99 USD
Regular price
Sale price
From $19.99 USD
Blank White PVC Cards for ID Badge Printers - CR80 30 Mil (SPID-9630)
Regular price
From $15.99 USD
Regular price
Sale price
From $15.99 USD
Evolis A5011 Cleaning Kit
Regular price
$26.00
Sale price
$20.80
Evolis Printerclean Cleaning Kit, 50 Cleaning Cards & Swabs, A5002
Regular price
$54.00
Sale price
$43.20
Evolis R2131 HighTrust Black Monochrome Ribbon for the Quantum 2, 3000 Prints
Regular price
$55.00
Sale price
$44.00
Downloads
Documents & Resources
Documents
Questions & answers
Frequently asked questions
Who is the Quantum 2 for?
The Quantum 2 is Evolis' centralized issuance printer, built for card bureaus, service providers, and programs that print thousands of cards per run. Interchangeable 500-card input and output hoppers, an aluminium body, and detachable hoppers for pre-loading keep production moving.
What encoding comes standard?
Every Quantum 2 ships with an ISO 7811 magnetic stripe encoder, a smart card contact station, and a connecting panel with a mounting area for integrating your own contactless encoding units. A patented reversible module encodes magnetic stripes and contact smart cards in either card orientation. Optional Evolis Elyctis, SpringCard, and OMNIKEY encoding modules are available; contact us for a quote.
What is the difference between the Standard and Secured versions?
The Secured version (QTM306GRH-BS00K) adds a centralized locking system that locks access to the printer, ribbons, blank cards, and reject cards. The Standard version has a central mechanical locking system.
Which ribbons does the Quantum 2 use?
The Quantum 2 uses its own high-capacity Evolis High Trust ribbon range: YMCKO 500 prints (R3511), YMCKO-K 500 prints dual-sided (R3514), KO 500 prints (R3012), black monochrome up to 3,000 prints (R2131), and a full set of color and specialty monochromes. Zenius and Primacy ribbons do not fit. See Compatible Supplies below.
What are the Production Pack and Backup Pack?
The Quantum Production Pack (QTM3-KT001) adds a detachable card hopper, two cleaning rollers, and a cleaning kit to reduce downtime between runs. The Quantum Backup Pack (QTM3-KT002) adds a spare print head, a reversible encoding module, and a detachable hopper so a component failure never stops production. Contact us to add either pack to your order.
What warranty does the Quantum 2 carry?
Evolis covers the Quantum 2 with a 1-year printer and original print head warranty, limited to 500,000 card insertions, conditioned on the use of genuine Evolis High Trust ribbons. Extended warranties of up to 3 additional years are available.
