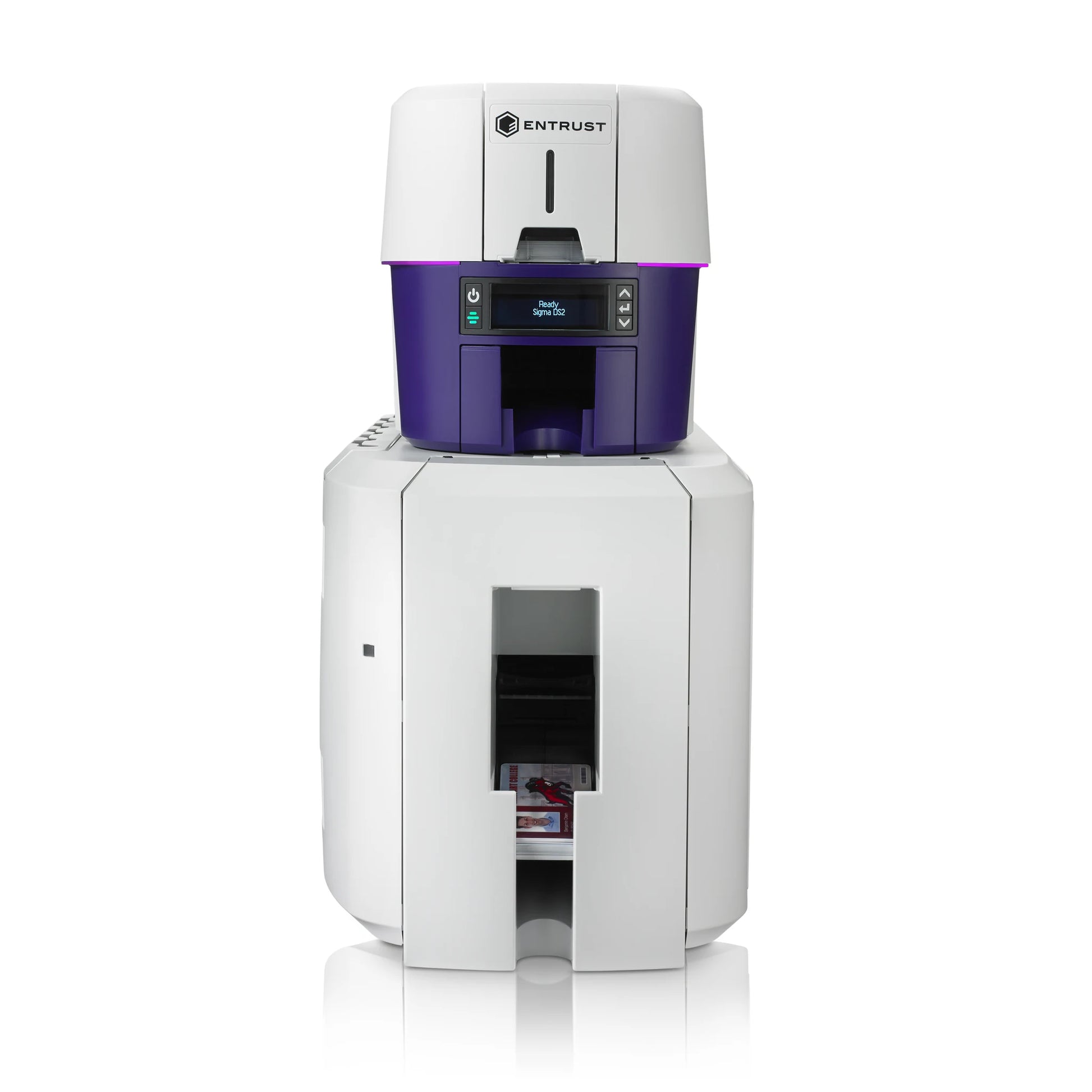

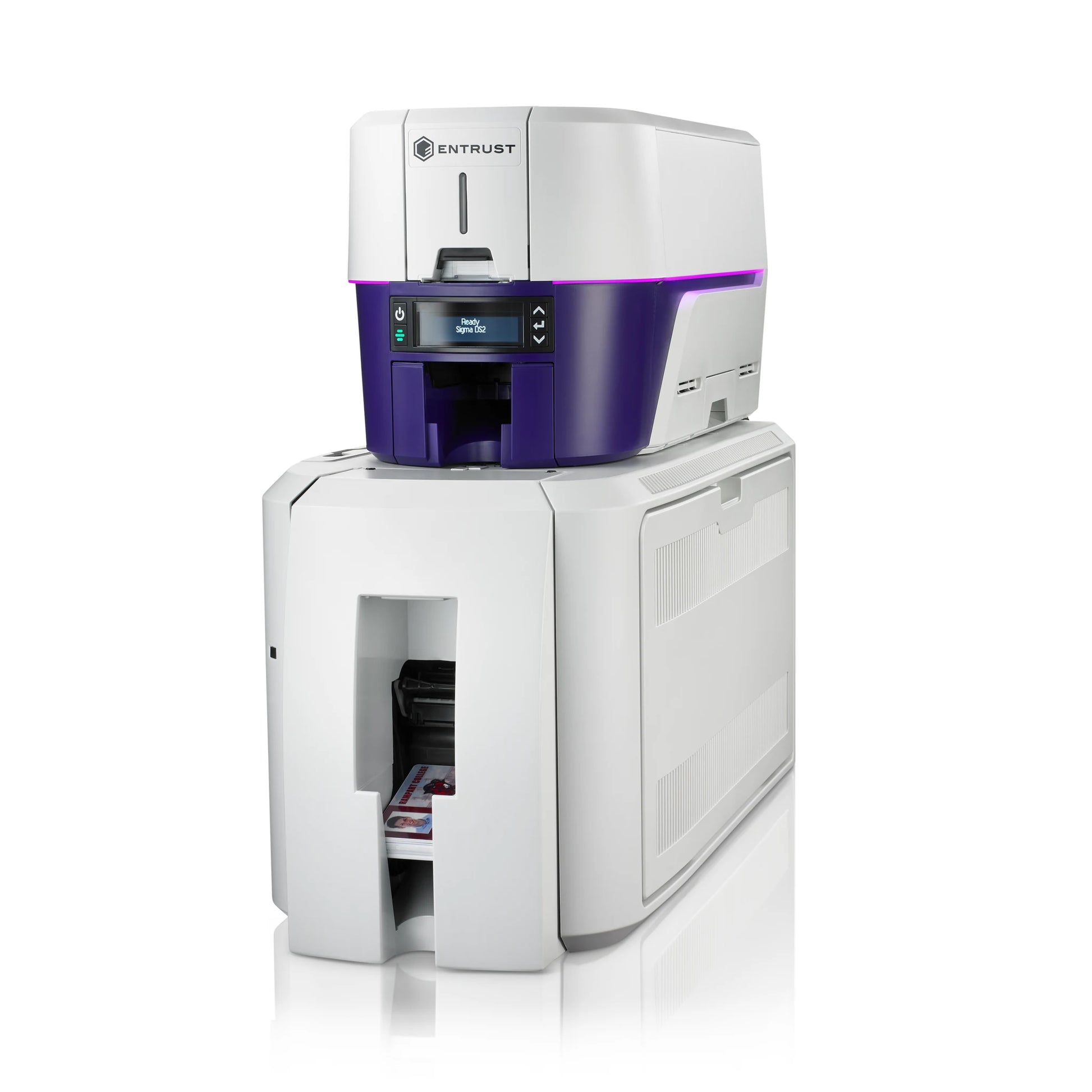

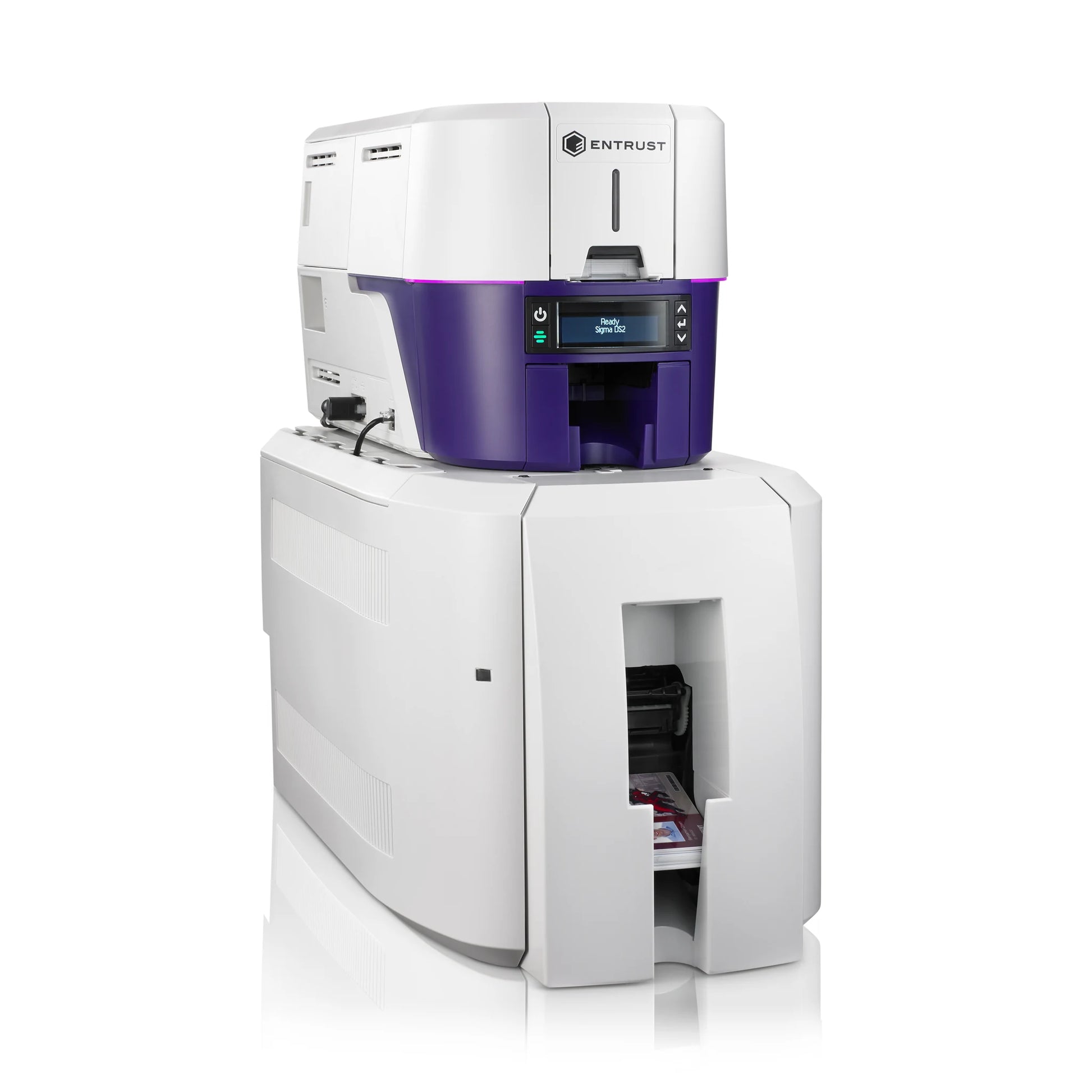

Entrust Sigma DS2 Dual-Sided ID Card Printer — Magnetic Stripe + HID Omnikey Smart Card Encoder + Dual-Side Lamination

Name: Entrust Sigma DS2 Dual-Sided ID Card Printer — Magnetic Stripe + HID Omnikey Smart Card Encoder + Dual-Side Lamination
Brand: Entrust
SKU: 525301-006+531237-001+531048-002
Price: 2957.4 USD
Availability: InStock

IN STOCK

Get a Quote

View full details

Overview

Professional credentials, printed at your desk

The Entrust Sigma DS2 is the next generation of direct-to-card printing — a dual-sided ID card printer that prints the front and back of each card automatically, no manual flipping, with the speed for medium- to high-volume issuance and a cloud-first design rated among the most user-friendly issuance systems anywhere. Unbox it, connect it over USB or Ethernet, and you are printing professional photo IDs in minutes, with a smartphone-style setup experience and a Printer Dashboard you can manage from your phone.

About the HID Omnikey encoder in this configuration

This configuration includes the factory-installed HID Omnikey smart card encoder (kit 531237-001), built into the printer. It personalizes contactless credentials — HID iCLASS, iCLASS SE, and Seos, HID Prox, plus MIFARE and MIFARE DESFire — making it the natural choice when your badges double as door keys on an HID access control system. On the DS2 it is a single-wire encoder: encoding data travels through the printer’s own USB or Ethernet connection, with no separate reader cable to run — ideal for networked and remote issuance. Choose the Identiv or Duali option instead if you also need to encode contact chip cards (the gold-pad chips you insert).

Magnetic stripe encoding built in

This configuration writes ISO 7811 magnetic stripes — tracks 1, 2 and 3, high- or low-coercivity — inline as each card prints, so badges come out of the printer ready to swipe.

Inline dual-side lamination

This configuration adds the dual-side Sigma CLM lamination module (531048-002), which applies tamper-evident overlays to both the front and back of each card as it prints — full protection for credentials that take wear on both sides. Lamination is the difference between a badge that lasts months and a credential that lasts years: overlays guard the printed image against abrasion, fading, and everyday wear, and any attempt to peel or alter them leaves visible evidence. Load clear full-card or patch laminates, UV-fluorescent or holographic security laminates, or economical topcoat — and run different materials on the front and back if you choose.

Secure by design

The Sigma platform treats the printer as a trusted IoT device: Secure Boot blocks tampered firmware at power-up, a Trusted Platform Module holds the printer’s own TLS certificates, every connection to your issuance software is encrypted, and no cardholder data remains in the printer after the card prints. Add UV fluorescent or luster security ribbons for visible and covert card authentication without extra hardware.

Cloud, on-premises, or pay-as-you-print

Drive the DS2 with Entrust Adaptive Issuance Instant ID software — available as an additional purchase, on your network or in the cloud, including simultaneous issuance of a physical card and a digital mobile flashpass. Prefer not to buy a software license? Instant ID as a Service ribbons include the cloud software with every ribbon, so you pay only as you print. A standard Windows driver covers third-party badging software.

Specialist ID is an authorized Entrust partner — your printer, supplies, and 36-month warranty are fully backed by Entrust.

Product highlights

HID Omnikey smart card encoder installed: encodes contactless credentials (tap) — iCLASS, iCLASS SE, Seos, HID Prox, MIFARE and DESFire — single-wire through the printer’s own USB or Ethernet connection.
Magnetic stripe encoder installed: writes ISO 7811 HiCo/LoCo stripes (tracks 1–3) inline as each card prints.
Inline dual-side lamination: the dual CLM module applies tamper-evident overlays to both sides of every card — multi-year credential life without a second device.
Fast, sharp dual-sided printing: up to 225 single-sided or 140 dual-sided full-color cards per hour — 880 monochrome — at 300 dpi with edge-to-edge coverage.
Industry-first security architecture: Secure Boot, TPM certificate storage, and encrypted connections protect cards and cardholder data end to end.
Cloud-ready issuance: print from Entrust Instant ID software (sold separately) or skip the license with Instant ID as a Service ribbons — cloud software included with every ribbon — and issue a mobile flashpass alongside every physical card.
Effortless upkeep: Printer Dashboard on your phone tracks supplies and cleaning; the patented printhead protector guards the head during every ribbon change.

Reference

Consumables

A complete list of compatible consumables for the Entrust Sigma DS2. Click any part number for details.

Part Number	Description and Yield
525100-004	Entrust YMCKT Color Ribbon Kit, 500 Prints
525100-001	Entrust YMCKT Color Ribbon Kit, 250 Prints
525150-004	Entrust YMCKT Prefilled Cassette, 500 Prints
525100-005	Entrust YMCKT-KT Color Ribbon, 350 Prints
525150-005	Entrust YMCKT-KT Prefilled Cassette, 350 Prints
525100-002	Entrust ymcKT Half-Panel Ribbon, 650 Prints
525100-014	Entrust KT Black Ribbon, 1,000 Prints
525100-010	Entrust KTT Black Ribbon, 750 Prints
525150-010	Entrust KTT Black Prefilled Cassette, 750 Prints
525100-021	Entrust YMCKT PETG Ribbon, 250 Prints
525100-023	Entrust WTT White Ribbon, 650 Prints
525100-011	Entrust YMCKF-KT UV Ribbon, 300 Prints
525100-016	Entrust YMCKL-KT Luster Ribbon, 300 Prints
525150-012	Entrust ST-KT Silver Matte Cassette, 500 Prints
525150-013	Entrust GT-KT Gold Matte Cassette, 500 Prints
525900-001	Entrust Black Standard/Food-Safe Monochrome Ribbon, 1,500 Prints
525900-002	Entrust Black High-Opacity Monochrome Ribbon, 1,500 Prints
525900-017	Entrust White Standard/Food-Safe Monochrome Ribbon, 1,500 Prints
525900-004	Entrust White High-Opacity Monochrome Ribbon, 1,500 Prints
525900-003	Entrust Royal Blue Monochrome Ribbon, 1,500 Prints
525900-005	Entrust Red Monochrome Ribbon, 1,500 Prints
525900-008	Entrust Green Monochrome Ribbon, 1,500 Prints
525900-006	Entrust Silver Matte Monochrome Ribbon, 1,500 Prints
525900-007	Entrust Gold Matte Monochrome Ribbon, 1,500 Prints
525900-014	Entrust Metallic Silver Monochrome Ribbon, 1,500 Prints
525900-015	Entrust Metallic Gold Monochrome Ribbon, 1,500 Prints
525900-009	Entrust Scratch-Off Gray Monochrome Ribbon, 1,500 Prints
525170-201	IIDaaS YMCKT Ribbon + Cloud Software, 250 Prints
525170-204	IIDaaS YMCKT Ribbon + Cloud Software, 500 Prints
525170-205	IIDaaS YMCKT-KT Dual-Sided Ribbon + Cloud Software, 350 Prints

Part Number	Description and Yield
508668-701	Entrust DuraGard 0.5 mil Clear Full-Card Laminate, 350
508668-702	Entrust DuraGard 0.5 mil Smart-Card-Window Laminate, 350
508668-903	Entrust DuraGard 0.5 mil Magnetic-Stripe Laminate, 350
508785-701	Entrust DuraGard 1.0 mil Clear Full-Card Laminate, 300
508785-702	Entrust DuraGard 1.0 mil Smart-Card-Window Laminate, 300
531581-701	Entrust DuraGard Economy 1.0 mil Full-Card Laminate, 300
508944-901	Entrust DuraGard 1.0 mil UV-Protective Laminate, 300
508808-002	Entrust DuraGard Compass Holographic Laminate, 350
508832-701	Entrust Clear Full-Card Topcoat, 1,000 Applications
508834-701	Entrust DuraShield Clear Full-Card Overlay, 500

Part Number	Description
SPID-9790-WHITE	Specialist ID HiCo Mag Stripe PVC Cards, CR-80 30mil
SPID-9630	Specialist ID Blank White PVC Cards, CR-80 30mil

Part Number	Description
531624-001	Entrust Sigma Series Printer Cleaning Kit
552141-002	Entrust Isopropanol Cleaning Cards, 10 Pack

The detail

Technical Specifications

Print method: Direct-to-card dye-sublimation / resin thermal transfer
Print resolution: 300 dpi (300 x 600 and 300 x 1200 for monochrome detail)
Print sides: Dual-sided (automatic front and back)
Print speed: Up to 225 full-color single-sided cards per hour; up to 140 full-color dual-sided cards per hour; up to 880 monochrome cards per hour
Card input: 125-card input hopper (removable, lockable in place)
Card output: 25-card output hopper; 10-card reject hopper
Accepted cards: ISO ID-1, CR-79, CR-80; 0.010 to 0.040 in (0.25–1.016 mm); glossy PVC, select key fobs, StickiCard adhesive-back, and rewritable cards
Magnetic stripe encoding: ISO 7811 tracks 1, 2 and 3 — high- and low-coercivity (JIS Type II capable)
Smart card encoding: HID Omnikey encoder — contactless credentials (iCLASS, iCLASS SE, Seos, HID Prox, plus MIFARE and MIFARE DESFire); built into the printer, single-wire — encodes through the printer’s own USB or Ethernet connection
Lamination: Dual-side Sigma CLM inline lamination module (531048-002) — tamper-evident overlays applied to both sides of each card; accepts clear, patch, UV-fluorescent, holographic, and topcoat cartridges
Connectivity: USB 2.0 and 10/100 Ethernet standard; optional Wi-Fi upgrade kit (dual-band 802.11g/n)
Security: Secure Boot, Trusted Platform Module (TPM), TLS 1.2/1.3 encrypted connections, no cardholder data stored after printing; optional UV fluorescent and luster security ribbons
Software: Entrust Adaptive Issuance Instant ID (sold separately); Instant ID as a Service (software included with IIDaaS ribbons); or third-party software via the free XPS Card Printer Driver (Windows 11, 10, 8.1; Windows Server)
Issuance: Physical cards plus digital mobile flashpass (with Entrust cloud software)
Dimensions: 17.4 in L x 8.9 in W x 9 in H (44.2 x 22.6 x 22.9 cm) printer only; the CLM lamination module mounts beneath the printer, increasing system height
Weight: 12.1 lb (5.49 kg) printer only; the CLM lamination module beneath it adds to system weight
Warranty: 36 months, printer and printhead
